INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
his remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas
T
heating appliances. The system can be operated thermostatically, manually or with the built-in factory program inside the
transmitter. The built-in program has two segments, a weekdays and a weekend segment. The factory presets are time
periods for each day. SEE PROGRAM SEQUENCE BELOW. Custom programming may be achieved after the initial
setup has been performed.
This system operates on radio frequencies (RF) within a 20-foot range using non-directional signals. The system
operates one of 1,048,576 security codes that are programmed into the transmitter at the factory; the remote receiver's
code must be matched to that of the transmitter prior to initial use.
Weekdays - Mon. Tues. Wed.Thurs. Fri.
5:00AM
Program 1 (P1)
Weekends - Sat. Sun.
6:00AM
Program 1 (P1)
PROG
SET
MODE
FRONT
PROG MODE
IHP: RC-S-TOUCH
Cat. No. H8865
NOT ATTEMPT TO INSTALL OR OPERATE
Built-in Factory Programs
MORN
9:00AM
72°
MORN
10:00AM
72°
TRANSMITTER
The transmitter operates on (4) AAA 1.5V batteries that are included.
Install the batteries supplied with the unit into the battery compartment. It
is recommended that ALKALINE batteries always be used for this product.
Be sure the batteries are installed with the (+) and (-) ends facing the
correct direction.
BATTERY
COMPARTMENT
When you start up the remote, if a low battery signal appears or if they
LCD screen does not illuminate when you touch it, check battery position
and if the batteries are fully charged.
BACK
SET

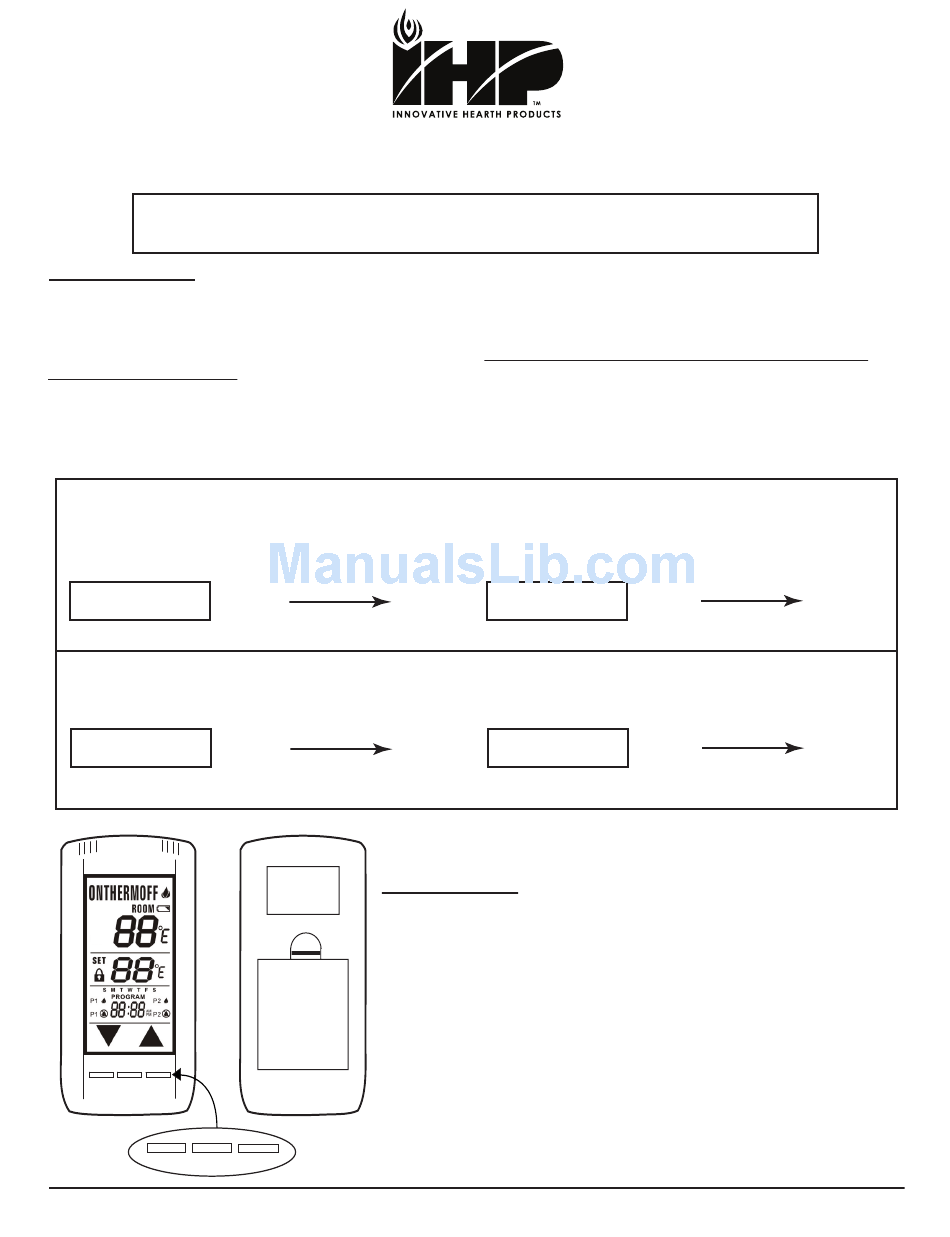

Fig. 1
P/N 900259-00 Rev. A
Model: RC-S-TOUCH
Program 2 (P2) 4:00PM
Program 2 (P2) 5:00PM
DAY
10:00PM
72°
DAY
10:00PM
72°
REV. 3-18-14 Page 1
Advertisement
Table of Contents
Related Manuals for IHP RC-S-TOUCH
Summary of Contents for IHP RC-S-TOUCH
- Page 1 Model: RC-S-TOUCH Cat. No. H8865 INSTALLATION AND OPERATION INSTRUCTIONS IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE INTRODUCTION his remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating appliances.
- Page 2 Follow this same procedure to change from ºC back to ºF. PROG Mode: Button MODE NOTE: When changing between the ºF and ºC scales, the set temperature defaults to the Fig. 4 lowest temperature (45 ºF, or 6 ºC). IHP: RC-S-TOUCH P/N 900259-00 Rev. A REV. 3-18-14 Page 2...
-
Page 3: Setting The Clock
When wall mounting the remote receiver, longer wires (not included) are required to connect to the gas valve or electronic module. These wires must: • Be at least 18-gage (AWG) • Be no longer than 20-feet • Have no splices P/N 900259-00 Rev. A IHP: RC-S-TOUCH REV. 3-18-14 Page 3... -
Page 4: Wiring Instructions
110/24VAC Transformer receiver. Connect another wire between the other receiver wire terminal and the TH (thermostat) terminal on the ELECTRONIC 24VAC MODULE. REMOTE RECEIVER hot wire FIG. 13 120VAC P/N 900259-00 Rev. A IHP: RC-S-TOUCH REV. 3-18-14 Page 4... -
Page 5: Learning Transmitter To Receiver
When in thermo mode, the transmitter reads the ROOM temperature every 2 minutes, checks the room temperature against the SET temperature then sends a signal to the receiver. Fig. 15 P/N 900259-00 Rev. A IHP: RC-S-TOUCH REV. 3-18-14 Page 5... -
Page 6: Program Function
“MTWTF” (Weekday Segment) will replace “S S”. P1 ON will be flashing. Repeat the above steps to set the ON and OFF times and set temperatures for weekdays. Fig. 21 Fig. 22 (See Fig. 22) IHP: RC-S-TOUCH P/N 900259-00 Rev. A REV. 3-18-14 Page 6... - Page 7 • When the Transmitter is in “LOCK-OUT” mode, programmed functions will go on with- out interruption; Only manual functions are prevented. Fig. 25 IHP: RC-S-TOUCH P/N 900259-00 Rev. A REV. 3-18-14 Page 7...
-
Page 8: Wall Mount
If you cannot locate the dealer/distributor, then you must notify IHP in writing. IHP must be notified of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108;...
