IMPORTANT
The Proflame Transmitter is an integrated part of the Proflame System, which consists of these elements:
• Proflame Transmitter, to be used in conjunction with
• Integrated Fireplaces Control (Proflame IFC)
The Proflame Transmitter provides for controlling the following hearth appliance functions:
1.
Main Burner On/Off
2.
Main Burner flame modulation (6 levels)
3.
Thermostat and Smart thermostat functions
4.
Accent light modulation (6 levels)
The Proflame Transmitter uses a streamline design with a simple button layout and informative LCD display
(Fig. 1). A Mode Key is provided to index between the features and a Thermostat Key is used to turn on/off or
index through Thermostat functions (Fig. 1 & 2). Additionally, a Key Lock feature is provided (Fig. 17, page 4).
Back lit LCD
display

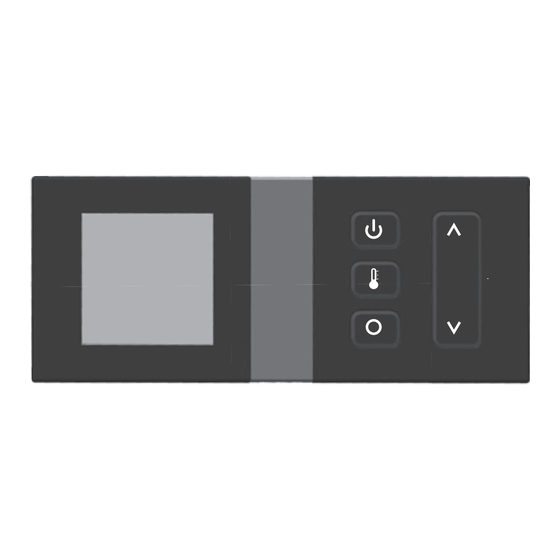

Figure 1: Proflame Transmitter
WARNING
THE TRANSMITTER AND RECEIVER ARE RADIO FREQUENCY DEVICES.
PLACING THE TRANSMITTER IN OR NEAR METAL MAY SEVERELY REDUCE THE SIGNAL RANGE.
METALLIC STRUCTURES OR RADIO INTERFERENCES CAN REDUCE THE OPERATIVE DISTANCE OF THE
DEVICE DEPENDING ON TYPE OF FIREPLACE, INSTALLATION AND ENVIRONMENT.
ATTENTION!
•
TURN "OFF" THE MAIN GAS SUPPLY OF THE APPLIANCE DURING INSTALLATION OR MAINTENANCE
OF THE RECEIVER DEVICE.
•
TURN "OFF" MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR REINSERTING THE
BATTERIES.
•
IN CASE OF REMOTE CONTROL MALFUNCTION TURN OFF THE IFC DEVICE USING THE "ON/OFF" MAIN
SWITCH.
•
FOR INSTALLATION/MAINTENANCE SWITCH OFF THE IFC DEVICE REMOVING MAIN POWER SUPPLY PLUG.
•
THE DEVICE IS NOT SUITABLE FOR THE USE OF RECHARGEABLE BATTERIES AND ITS OPERATIVE
DISTANCE IS REDUCED WITH LOW BATTERY LEVEL.
WALL MOUNT TRANSMITTER
INSTALLATION INSTRUCTIONS
For more information, visit IHP.US.com
ON/OFF Key
THERMOSTAT Key
MODE Key
UP/DOWN
Arrow Key
P900340-00
P/N 900340-00 Rev. N/C 09/14
Transmission
Thermostat OFF/
ON/SMART
Set Point
Temperature/Level/State
Flame ON
Figure 2: Transmitter LCD Display
Key Lock
Low battery
alarm
Room
Temperature
CPI mode
Aux ON
Lights
