IHP RC-S-1 Operation Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS, DO
INTRODUCTION
This remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating
appliances. This all battery system operates independently of household current. The system operates on radio frequencies with non-
directional signals. The SYSTEM's operating range is approximately 20-foot range. The system operates on one of 1,048,576 security
codes that are programmed into the transmitter at the factory; the remote receiver's code must be matched to that of the transmitter
prior to initial use.
ON
BUTTON
ROOM TEMP
ON
TIMER
BUTTON
OFF
TIMER
OFF
BUTTON
SET
SET
BUTTON
FRONT
ON
OFF
TIMER
SET
LCD - Liquid Crystal Display
1
4 ROOM
SET
____________________________________________________________________________________________________________
IHP: RC-S-1
Cat. No. H8860
INSTALLATION AND OPERATION INSTRUCTIONS
NOT ATTEMPT TO INSTALL OR OPERATE
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section.
These safety features shut down the fireplace system
when a potentially unsafe condition exists.

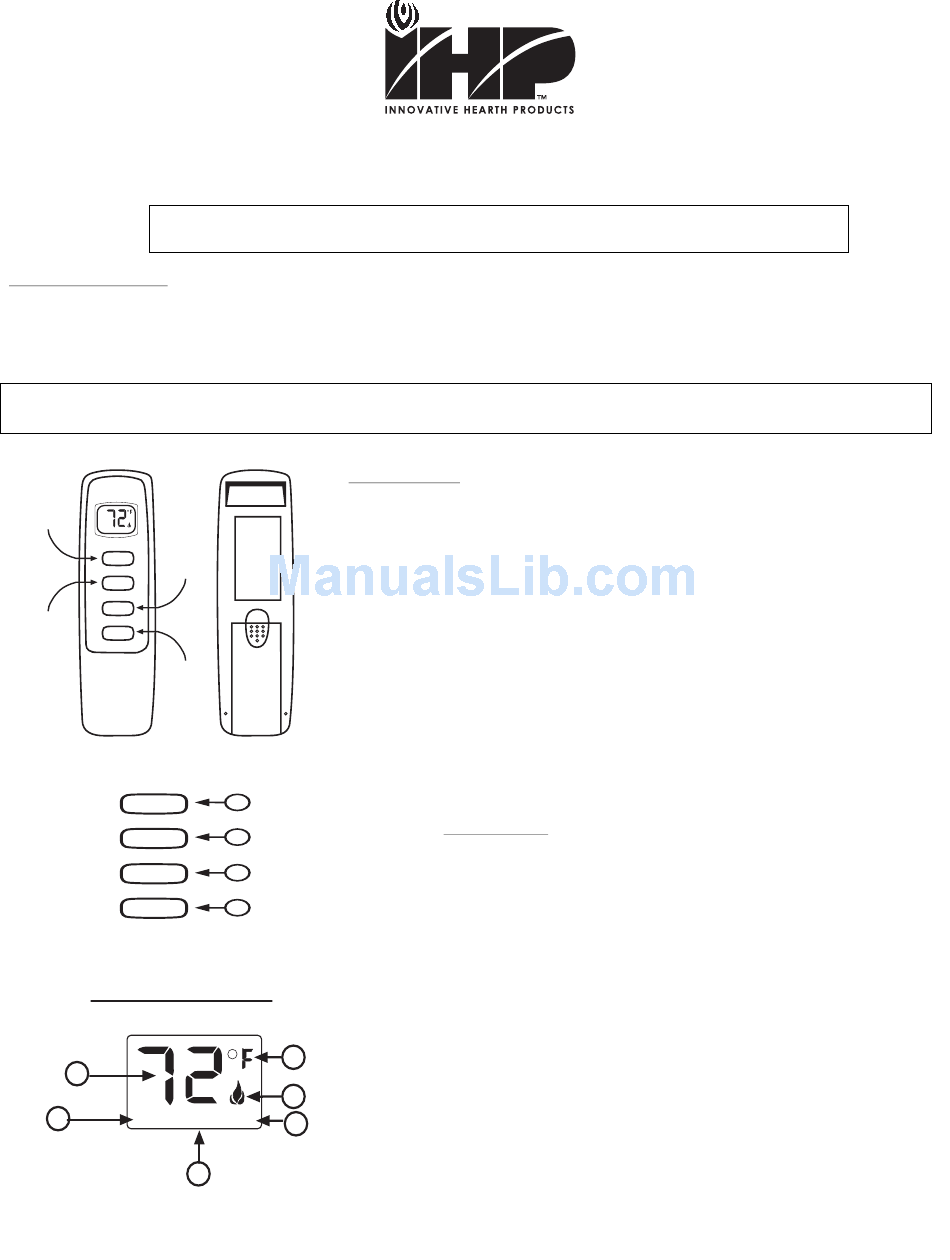

TRANSMITTER
WALL CLIP
SLOT
This remote control SYSTEM offers the user a battery-operated remote control that
operates most millivolt gas valves used in some heater rated gas logs, gas fireplaces
and other gas heating appliances.
The transmitter operates on (2) 1.5V AAA batteries.
It is recommended that ALKALINE batteries always be used for longer battery life and
maximum operational performance.
BATTERY
COMPARTMENT
Before using the transmitter, install the (2) AAA transmitter batteries into the battery
compartment. (Use caution that batteries are installed in the proper direction)
BACK
1
2
3
4
2
3
TEMP
5
6
Model: RC-S-1
KEY SETINGS
1. ON - Operates unit to on position, Manually ON.
2. OFF - Operates unit to off position, Manually OFF.
3. TIMER - Changes unit from manual mode to timer mode.
4. SET - Sets the timer in minutes.
1. DISPLAY Indicates CURRENT room temperature.
0 0
2. F OR C Indicates degrees Fahrenheit or Celsius.
3. FLAME Indicates burner/valve in operation.
4. ROOM Appears when LCD screen is on.
5. TEMP Appears when LCD screen is on.
6. SET Appears when setting the timer.
P/N 900256-00 Rev. A Rev 3/18/14 Page 1 of 7
