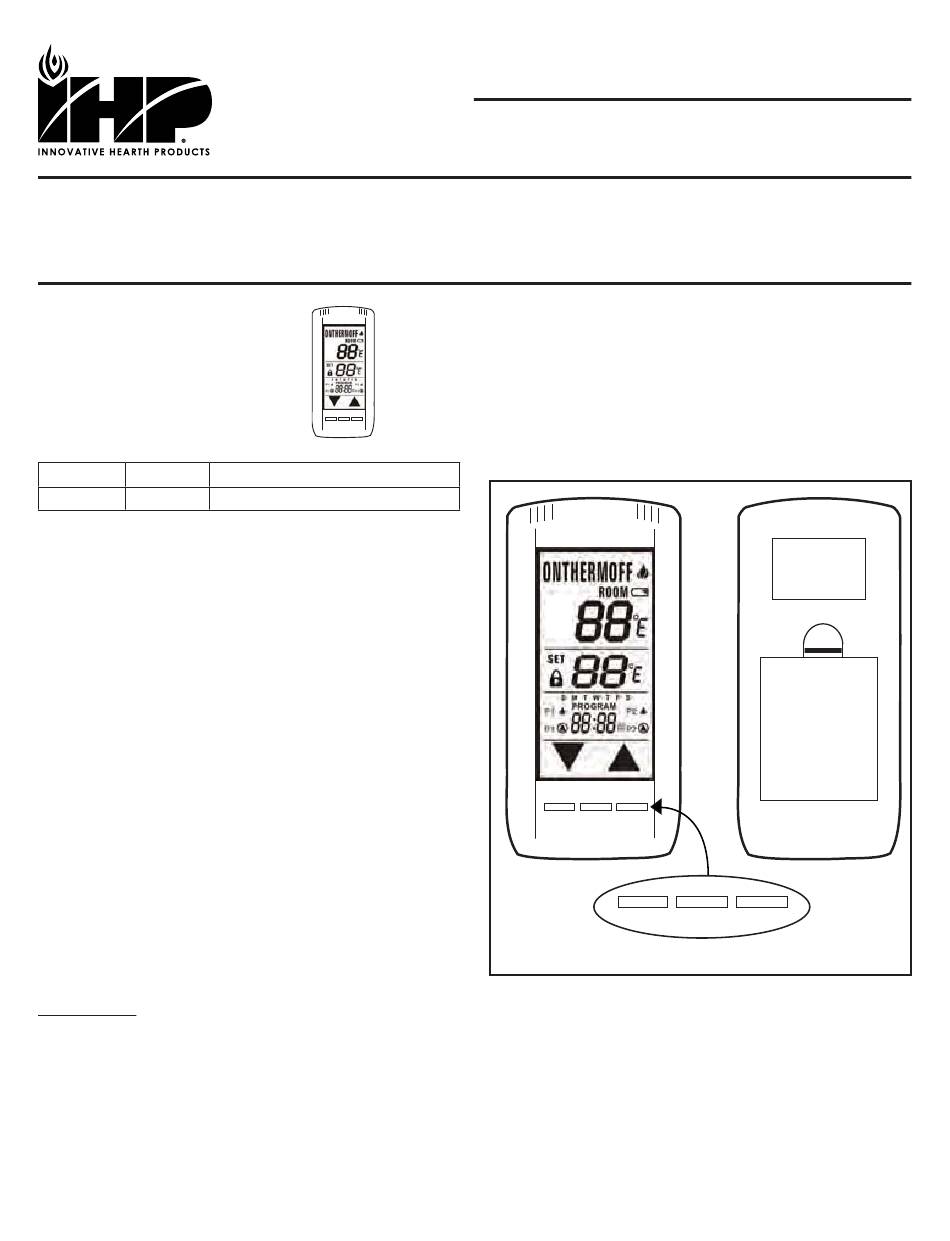

TSRC TOUCHSCREEN REMOTE CONTROL KIT
[FOR USE WITH MODELS ALPHA32/36, GAMMA26, BLAZE&GLOW18/24, MAGNIFLAME24/30, MULTI-SIDED27 NORTHERNOAK27, DUAL-FLAME EOS18, SHERIDAN18/24,
RIOLIGHTS24/30, VRT4032/36, VCT4032/36, VCM3026, CIS VF, GLOW-RAMP BGE18/24, MULTI-SIDED FVFM27, VF18/24, DUAL BURNER VD1824, ODYSSEY36/42,
VRE3036/42, CHELSEA21, CONCORD26]
KIT CONTENTS
1 ea. Remote Control
4 ea. AA 1.5 volt batteries (for receiver)
4 ea. 1 ea. Instruction Sheet
Cat. No.
Model
F1079
TSRC
f i r e - p a r t s . c o m
REQUIRED TOOLS AND SUPPLIES
Flat Blade Screwdriver
GENERAL INFORMATION
The hand-held touchscreen remote control allows the fi replace to
be operated in a manually or thermostatically controlled mode.
READ ALL THE STEPS BEFORE STARTING THE INSTALLATION
THE APPLIANCE MUST BE OFF AND COLD BEFORE BEGINNING.
ALL WARNINGS, PRECAUTIONS AND INSTRUCTIONS IN THE
INSTALLATION AND OPERATION MANUAL PROVIDED WITH THE
APPLIANCE APPLY TO THESE INSTRUCTIONS.
If you encounter any problems, need clarifi cation of these instructions
or are not qualifi ed to properly install this kit, contact you local
distributor or dealer.
If any of these parts are missing or damaged, contact your dealer or
IHP.us.com for referral information.
INTRODUCTION
This remote control system was developed to provide a safe, reliable,
and user-friendly remote control system for gas heating appliances or
other compatible appliances. The system can be operated manually
from the transmitter.
PROG
MODE
SET
Description
Receiver & Touchscreen Remote Kit
P/N 127160-01
Rev. B, 04/2017
The transmitter operates with (4) AAA 1.5V batteries that are included.
Install the batteries supplied with the unit into the battery compartment.
It is recommended that ALKALINE batteries always be used for this
product. Be sure the batteries are installed with the (+) and (-) ends
facing the correct direction.
When you start up the remote, if a low battery signal appears or if they
LCD screen does not illuminate when you touch it, check battery posi-
tion and if the batteries are fully charged.
MODE
PROG
FRONT
PROG MODE

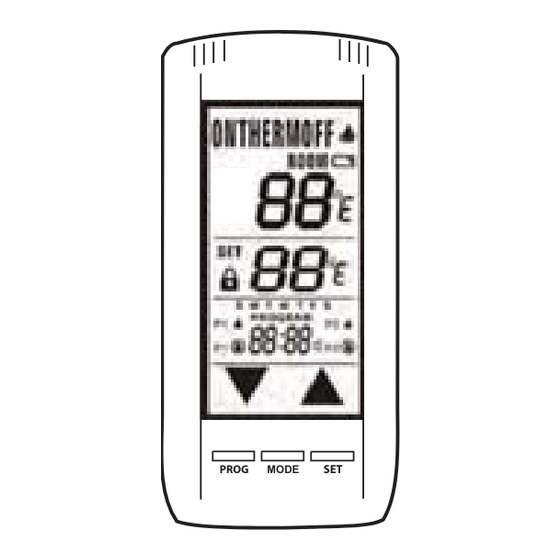

Figure 1 - Remote Control Battery Compartment
IHP.us.com
HEARTH PRODUCTS
KITS AND ACCESSORIES
TSRC TOUCHSCREEN
REMOTE CONTROL KIT
BATTERY
COMPARTMENT
SET
BACK
SET
1
Advertisement
Table of Contents
Related Manuals for IHP TSRC
Summary of Contents for IHP TSRC
- Page 1 P/N 127160-01 Rev. B, 04/2017 REMOTE CONTROL KIT TSRC TOUCHSCREEN REMOTE CONTROL KIT [FOR USE WITH MODELS ALPHA32/36, GAMMA26, BLAZE&GLOW18/24, MAGNIFLAME24/30, MULTI-SIDED27 NORTHERNOAK27, DUAL-FLAME EOS18, SHERIDAN18/24, RIOLIGHTS24/30, VRT4032/36, VCT4032/36, VCM3026, CIS VF, GLOW-RAMP BGE18/24, MULTI-SIDED FVFM27, VF18/24, DUAL BURNER VD1824, ODYSSEY36/42,...
-
Page 2: Mode Function
Figure 5 - Setting the Clock The minutes will be fl ashing. Use the UP and DOWN touch buttons to select the minute, then press SET. (Fig. 5A, page 3). Figure 3 - Mode Function IHP.us.com 127160-01B... -
Page 3: Program Function
This variation is called the “swing” or temperature differential. This feature lets the appliance turn OFF and ON 2 ºF (1 ºC) above or below the set temperature of the room. This is to cushion the number of times the appliance is turned ON and OFF. IHP.us.com 127160-01B... - Page 4 fl ashing. Repeat the above steps to set the ON and OFF times and set temperatures for weekdays (See Figure 14). Figure 9 • P1 OFF will be fl ashing. Select the time you want your appliance to turn off. Then press SET (See Figure 10). Figure 14 Figure 10 IHP.us.com 127160-01B...
- Page 5 Figure 16 - Communication-Safety Requires 4-AA 1.5V alkaline batteries Remote Receiver CHILDPROOF ''LOCK-OUT'' Figure 18 - Installing Batteries This remote control includes a CHILDPROOF “LOCK-OUT” feature that allows the user to “LOCK-OUT” operation of the appliance from the TRANSMITTER. IHP.us.com 127160-01B...
-
Page 6: Installation
Connect one wire from the remote receiver to the TH terminal on the gas valve. Remote Receiver Connect the other wire from the remote receiver to the TH/TP terminal on the gas valve. Figure 19 - Mounting Receiver on Switch Plate IHP.us.com 127160-01B... - Page 7 If the remote receiver batteries measure less than 5.3 volts (all four batteries in combination). 120VAC If the hand held transmitter batteries measure less than 5.3 volts (all 4 Figure 23 - Electronic Wiring Diagram batteries in combination). IHP.us.com 127160-01B...
-
Page 8: Troubleshooting
- p a r t s . c o m IHP reserves the right to make changes at any time, without notice, in design, materials, specifi ca- tions, prices and also to discontinue colors, styles and products. Consult your local distributor for fi...
