Summary of Contents for MBM 87m

  • Page 1 http://www.monomachines.com/ For More Info Click Here ---> [120 V] http://www.monomachines.com/...
  • Page 2 http://www.monomachines.com/ For More Info Click Here ---> http://www.monomachines.com/...

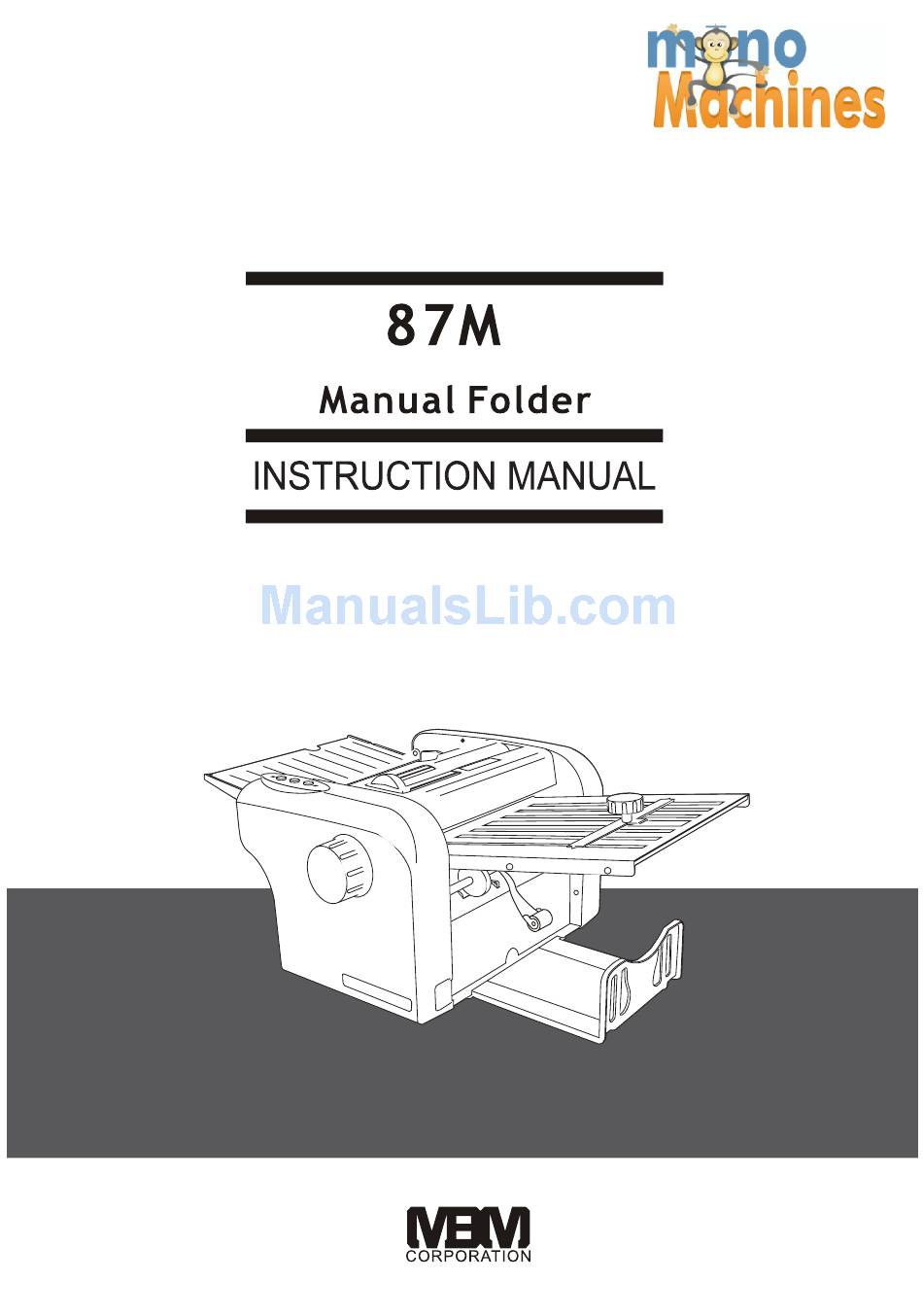

  • Page 3 INTRODUCTION Thank you for purchasing this MBM folder. This machine is designed to efficiently fold Font Letter, Legal and A4 size ( or equivalent ) paper. To ensure correct usage, please read this instruction manual thoroughly, especially the section entitled “Safety Precautions”.

  • Page 4: Safety Precautions

    http://www.monomachines.com/ SAFETY PRECAUTIONS Always observe the cautions and warnings given below to prevent personal injury or property damage. The degree of danger and damage that could occur is indicated on two levels by the following marks. WARNING : Ignoring this mark could result in the possibility of serious injury or even death.
  • Page 5 http://www.monomachines.com/ SAFETY PRECAUTIONS (continued) Make sure that the combined power consumption of the appliances to be connected does not exceed the capacity rating of the power outlets or plug receptacles. Exceeding the capacity rating could cause the power outlets, plug receptacles, or power extension cords to overheat Remove any dust that accumulates on the power plug prongs and the surface of the plug from If any foreign object such as metal or liquid should enter this unit, immediately turn the unit off at the power switch and disconnect the power plug from the power outlet.

  • Page 6: Usage Precautions

    http://www.monomachines.com/ USAGE PRECAUTIONS 1. Power Supply This equipment shall be installed near the socket-outlet where the plug on the power supply cord is easily accessible. Make sure the power supply used is always within the following range. 120 VAC, 60Hz When you power other appliances from the same AC outlet, make sure that the combined power consumption does not exceed the power supply capacity.

  • Page 7: Warning Sticker

    Warning Sticker Please kindly contact your MBM dealer to get new stickers if any of these stickers are damaged or missing. WARNING: Hazardous Moving Parts. Keep Fingers and Other Body Parts Away. For More Info Click Here ---> P .6...

  • Page 8: Specifications

    Specifications Model MBM 87M Manual Folder LT(8 ½ x 11 ), LGA(8 ½ x 14 ) and A4(8 x 11 ) only Paper size Width: 4 - 8½ Length: 5 - 14 Paper weight 16 - 80 lbs. Fine quality paper, recycled paper...

  • Page 9: Parts Name

    http://www.monomachines.com/ Parts Name 1. Manual Knob 2. Power Switch 3. Receiving Tray 4. Upper Plate 5. Dial 6. Manual Feed Cover 7. Paper Width Guide 8. Auxiliary Feed T able 9. Folding Instruction 10. Control Panel 11. Paper Delivery Sensor 12.

  • Page 10: Control Panel

    http://www.monomachines.com/ Control Panel For More Info Click Here ---> Name Operation Power Lamp Lights up when the power is ON. Start Button Press this button to start folding Press this button to stop folding. The machine stops also when sheets on the feed table run out.
  • Page 11 http://www.monomachines.com/ Delivery Auxiliary Guide For More Info Click Here ---> P.10 http://www.monomachines.com/...
  • Page 12 http://www.monomachines.com/ Upper/Lower improperly Upper / Lower Plate guide line For More Info Click Here ---> Fold 8 ½ x 11 http://www.monomachines.com/...
  • Page 13 http://www.monomachines.com/ Correcting Folding Misalignment Misalignment Fold Type Move the stop as arrow indicates When A is Shorter Single fold When A is Lo nger When A is Shorter When B i s Longer When B i s Shorter When A is Longer When A is Shorter When B i s Longer When B i s Shorter...

  • Page 14: Operation

    http://www.monomachines.com/ Operation Selecting folding speed Two folding speeds are available for better fold quality. High speed: 120 sheets / min. ( Default setting: suitable for normal weight of paper, more than 20LB Bond) Low speed: 100 sheets / min. (Optional setting: suitable for thinner paper, light weight less than 20LB Bond) Select folding speed according to the weight of paper to be folded.
  • Page 15 http://www.monomachines.com/ Operation Holding down the Feed Table, load sheets on it. Move the Side Guides to the edge of sheets without any clearance. Do not push the guides hard up against the edge. For More Info Note Click Here ---> When the Manual Knob is pressed in during Auto mode operation.
  • Page 16 http://www.monomachines.com/ 20LB Bond. For More Info Note Click Here ---> P.15 http://www.monomachines.com/...
  • Page 17 http://www.monomachines.com/ For More Info Click Here ---> P.16 http://www.monomachines.com/...
  • Page 18 MBM Roller Wash. For More Info Click Here ---> http://www.monomachines.com/...
  • Page 19 http://www.monomachines.com/ Open the Manual Feed Cover. Remove the Paper Feed Roller unit by pushing it in, new Feed Roller. For More Info Click Here ---> Reverse the steps, reinstalling the Paper Feed Roller unit. Open the Manual Feed cover. Remove the and replace with a http://www.monomachines.com/...
  • Page 20 http://www.monomachines.com/ Paper Jam Upper/Lower Plates secured improperly. Manual feed cover open Manual Knob position Power cable plugged into outlet Blown Fuse Paper Jam Paper Delivery Sensor pressed Paper fed skewed in Auto mode Paper fed skewed in Manual mode Curled or damp paper Clear paper from inlet Machine placed in direct sunlight Remove from direct...
