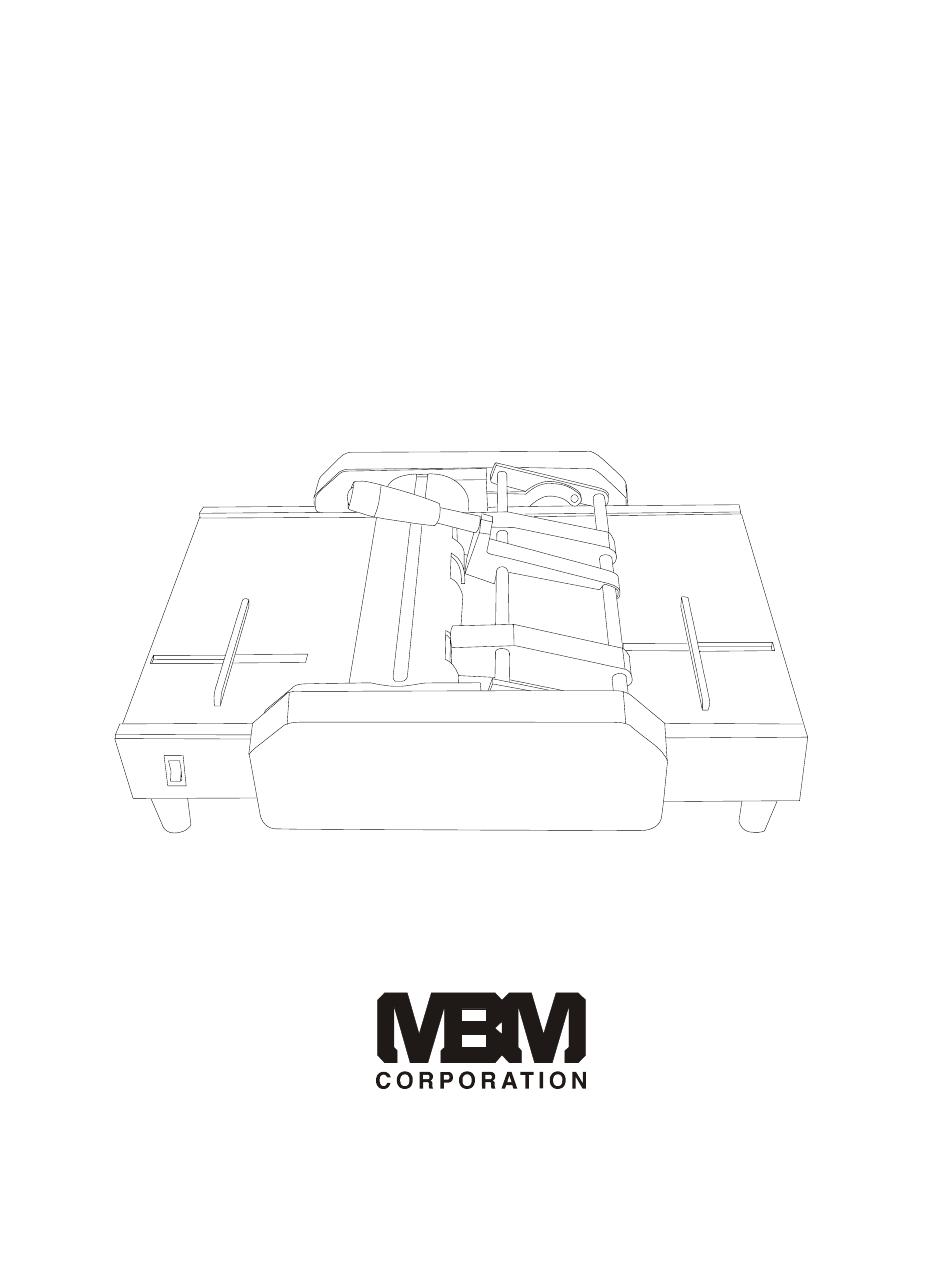

- Page 1 Operation Manual BOOKLETMAKER Jr. 1-800-223-2508 www.mbmcorp.com Keep this manual sot that it can be retrieved whenever needed...
- Page 2 CAUTION When the machine is running, never put your hands near or under the rollers. Do not remove the bottom lid, front and rear covers from the machine. The inside of the machine contains high voltage parts or hazardous moving parts, which may cause electric shock or personal injury.
- Page 3 Warning Warning: hazardous moving parts keep hands and other body parts away. Warn: The surface of the motor is hot. Be careful, Don t touch Caution Caution: For continued protection against risk of fire, replace only with the same type and rating of fuse.
- Page 4 Description Warning Label 1 Cover Label Label Brand Model Label Fuse Label Caution Label Warning Label 2 Warning Label 3...
- Page 5 8 9 10 Main Operating Parts (8) Paper Guide (1) Safety Cover (9) Table (2) Back Cover (10) Side Guide (A) (3) Stapling Handle (11) Front Cover (4) Side Guide (B) (12) On/Off Switch (5) Sub Holding Shaft (13) Rubber Feet (7) Stapling Head...
- Page 6 Wa rning ha za rd o us m o ving p a rts ke e p ha nd s a nd o the r b o d y p a rts a wa y Do not remove the cover Doing so may result in personal injury M O D EL BO O K LETM A K ER Jr.
- Page 7 CA UTION: Warn: The surface of the motor is hot. Be careful, Don t touch Warn: The surface of the motor is hot. Be careful, Don t touch...
-
Page 8: Operation Procedures
Operation Procedures 1. B ef o r e Op er at i n g 1.1 Fit stapling handle: First insert the end of the stapling handle at the main holding shaft then press in the sub-holding shaft. 1.2 Load Staples 1.3 Connect the power cable 2.1 Switch on the machine 2.2 Choose the correct staple position according to the sheet size. - Page 9 3. Si d e St ap l i n g 3.1 Choose and fix the staple position according to the sheet size. 3.2 Place the sheets under the rollers. 3.3 Depending on the stapling position, align the sheets to side guide (A)or side guide (B) 3.4 Set the side distance and hold the sheets.
- Page 10 Sp ec i f i c at i o n s Min.197mmx273mm (7.8 x 10.8 ) Paper size Max. 297mmx420mm ( 11.7 x 16.5 ) 10 sheets of 70gsm Bond paper* Max. Stapling Amount lbs. paper) 10 sheets of 70gsm Bond paper Max.
