Summary of Contents for MBM BO0841 Autobook

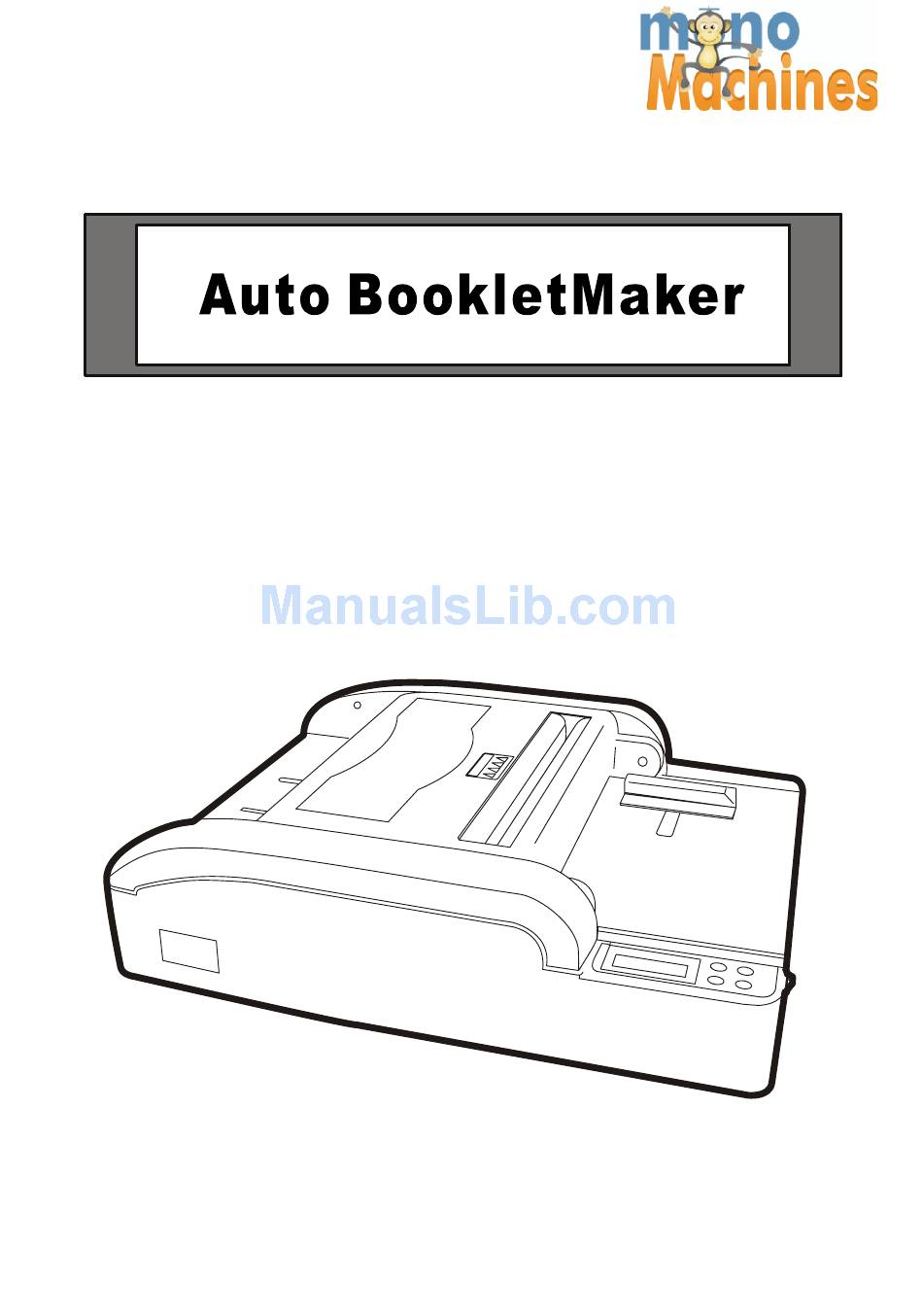

- Page 1 http://www.monomachines.com/ For More Info Click Here ---> Instruction Manual http://www.monomachines.com/...
-
Page 2: Table Of Contents
http://www.monomachines.com/ Contents Introduction Safety Precautions Safety Precautions Usage Precautions Specifications Part Names Accessories Control Panel Installation Operation P.10-19 P.10 Standard Paper Size Selection. P.11 Non Standard Paper Size Data Input. P.12 Memory Call Out. P.13 Trigger Timer Setting. P.14-15 Correcting Folding or Stapling Misalignment. P.16 Factory Default Setting. -
Page 3: Introduction
http://www.monomachines.com/ Introduction Thank you for your purchase of this Booklet Maker. To ensure correct usage, please read this instruction manual thoroughly, especially the section Safety Precautions. After reading, please keep this instruction manual handy for future reference. For More Info Click Here --->... -
Page 4: Safety Precautions
http://www.monomachines.com/ Safety Precautions Always observe the cautions and warnings given below to prevent personal injury or property damage. The degree of danger and damage that could occur is indicated on two levels by the following marks. WARNING : Ignoring this mark could result in the possibility of serious injury or even death. -
Page 5: Safety Precautions
http://www.monomachines.com/ Safety Precautions (Continues) Make sure that the combined power consumption of the appliances to be connected does not exceed the capacity rating of the power outlets or plug receptacles. Exceeding the capacity rating could cause the power outlets, plug receptacles, or power extension cords to overheat and catch fire. -
Page 6: Usage Precautions
http://www.monomachines.com/ Usage Precautions Power Supply This equipment shall be installed near the socket-outlet where the plug on the power supply cord is easily accessible. Make sure the power supply used is always within the following range. 220 - 240VAC, 50Hz in Europe. 110VAC, 60Hz in United State. -
Page 7: Specifications
http://www.monomachines.com/ Specifications 297mm x 432mm Maximum paper size x 17 182mm x 257mm Minimum paper size x 10 A3, B4, F4A, F4B and A4 (Asia) paper size A3, B4, LG, A4 and B5 (Europe) LD, A3, LG, A4 and LT (U.S.A.) Automatic Stapler Heads Stapling method Equivalent to 15 sheets of 80gsm ( 20 ) bond paper... -
Page 8: Part Names
http://www.monomachines.com/ Part Names 1. Stapler assy. 5. Clincher 9. Top cover 2. Paper guide 10. folding roller 6. Control panel 3. Side cover 7. Scale 11. stapler head 4. Pressing roller 8. power switch 12. Paper side guide Accessories Option Stoppers Paper Side Guide Press roller Power Cord (U.S.A. -
Page 9: Control Panel
http://www.monomachines.com/ Control Panel Name Operation Light up when power on Selected paper size and counter indicate when power on LCD Display Option menu indicate when press the Menu button Error message indicate when error occur Press the button to change the size of standard paper Press the button to select the options of menu Scroll up button... -
Page 10: Installation
http://www.monomachines.com/ Installation FIGURE 01 Open the top cover and get rid off the wire tie from the folding roller. Lift up the stapler head lever. Then remove the sponge pad under the stapler head. Open the cassette from the stapler head and load staples. -
Page 11: Operation
http://www.monomachines.com/ Operation Standard Paper Size Selection. Switch the power on. (See fig. 04) Select the paper size by pressing scroll up or scroll down button. (Example LD paper) (U.S.A. Version) FIGURE 04 (Asia Version) (Europe Version) For More Info Click Here ---> Press Enter button. -
Page 12: Non Standard Paper Size Data Input
http://www.monomachines.com/ Operation Non Standard Paper Size Data Input. Press Menu button to enter option menu. Select “1.Memo” then press enter button. Select one of Memory from Mem1 to Mem6 by pressing scroll button then press Enter button to enter paper size setting. (For example Mem2) Memory Size Mem2: 297mm... -
Page 13: Memory Call Out
http://www.monomachines.com/ Operation Memor y Call Out. Memory call out by press scroll up or scroll down button. (Example M3) (U.S.A. Version) (Asia Version) (Europe Version) Press Enter button to enter. Move the stapler heads to the correct position based upon paper size. Press Enter button to return to ready. -
Page 14: Trigger Timer Setting
http://www.monomachines.com/ Operation Trigger Timer Setting. Press Menu button to enter option menu. Select 2.Time by press scroll down button. Press Enter button to enter trigger timer setting. Stapling Time 05 second Press scroll up or down button to change the setting.(Example 8 second) Stapling Time 08 second Press Enter button to rewrite the previous... -
Page 15: Correcting Folding Or Stapling Misalignment
http://www.monomachines.com/ Operation Cor recting Folding or Stapling Misalignment. Fold the book manually to make the center line on the book. Check the staples aligning with the center line or not. C C e e n n t t e e r l r li i n n e e Fine adjustment by following the instruction below. - Page 16 http://www.monomachines.com/ Operation Check folded position aligning with the center line or not. Fine adjustment by following the instruction below. C C e e n n t t e e r l r li i n n e e Align with Staple position Adjustment Indication...
-
Page 17: Factory Default Setting
http://www.monomachines.com/ Operation Factor y Default Setting. Press Menu button to enter option menu. Select 5 Reset all by pressing scroll down button. 5.Reset all. 6.Show serial. Press Enter button to reset all data to factory default setting. Warning! A ll the value in Memory will be restored to factory default value (297mm)also. -
Page 18: Serial Number Indication
http://www.monomachines.com/ Operation Serial Number Indication. Press Menu button to enter option menu. Select 6 Show serial by pressing scroll down button. 5.Reset all. 6.Show serial. Press Enter button to check the serial number. Machine Serial: H XXXXXXXXX Press Enter button to return to ready. For More Info Click Here --->... -
Page 19: Booklet Making
http://www.monomachines.com/ Operation FIGURE 06 Booklet Making. Select the required paper size and adjust the stapler head position by reference to page 11 to page 13. For example LD paper selected. Open the top cover and insert a set of A3 paper. (See fig. 6) Align the paper with the edge of the FIGURE 07 scale. -
Page 20: Counter Reset
http://www.monomachines.com/ Operation Counter Reset. Remover all the paper from the machine. Press Enter button to reset the counter to “0000” Ready 0000Set Ready 0128Set Emergency Stop. Press any button on the panel to stop the machine during the booklet making process. Emergency stop! Reset machine! Switch off the machine then power on... -
Page 21: Error Message
http://www.monomachines.com/ Error Message Error Message Causes Trouble shooting Top cover opened in the ready Close the top cover. state. Cover is open! Cover is open Top cover opened during Close the top cover. booklet making. Then press enter button. Reset? Press enter button Close the cover after “Cover is open”...
