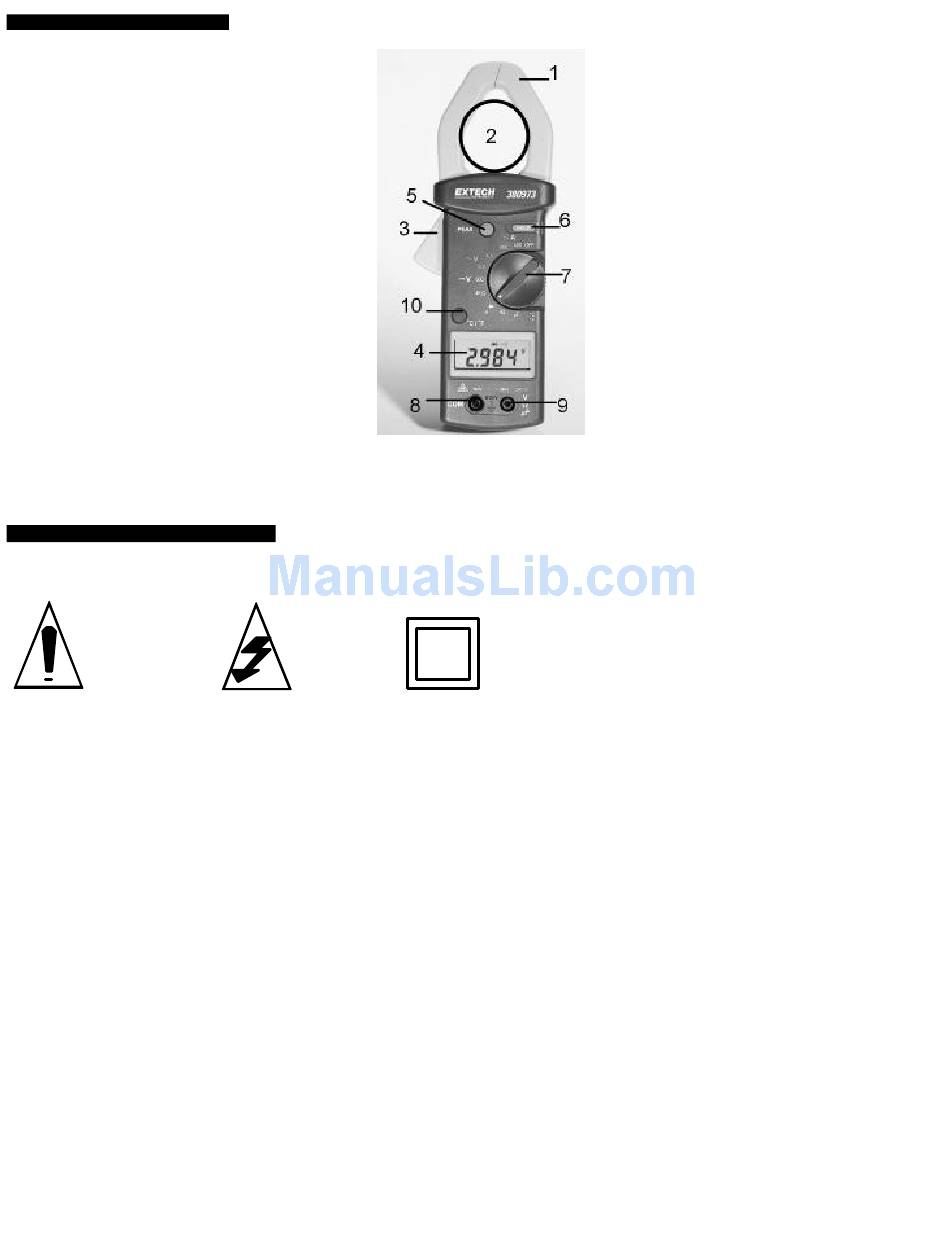

3. FRONT PANEL DESCRIPTION

1 Clamp jaw
2 Clamp measurement area
3 Jaw trigger – Press to open transformer jaw
4 LCD Display – Displays data, units, polarity,
decimal, peak/data hold icons, overload and low
battery indication.
5 Peak Hold key – Press to activate, press again to
deactivate.
6 Data Hold key - Press to activate, press again to
deactivate.
7 Rotary selector switch – Powers meter while
selecting function and range.
8 Negative input terminal – Black test lead
connection (COM).
9 Positive input terminal – Red test lead connection
for voltage, resistance, frequency, capacitance,
temperature, diode, and continuity tests.
10 Temperature units select key – Press to select
desired units

4. INTERNATIONAL SAFETY SYMBOLS

CAUTION:
Refer to
documentation
CAUTION:
Risk of
Electrical
Shock
3 380973
Double
Insulation
Ver. 1.01 8 /99
