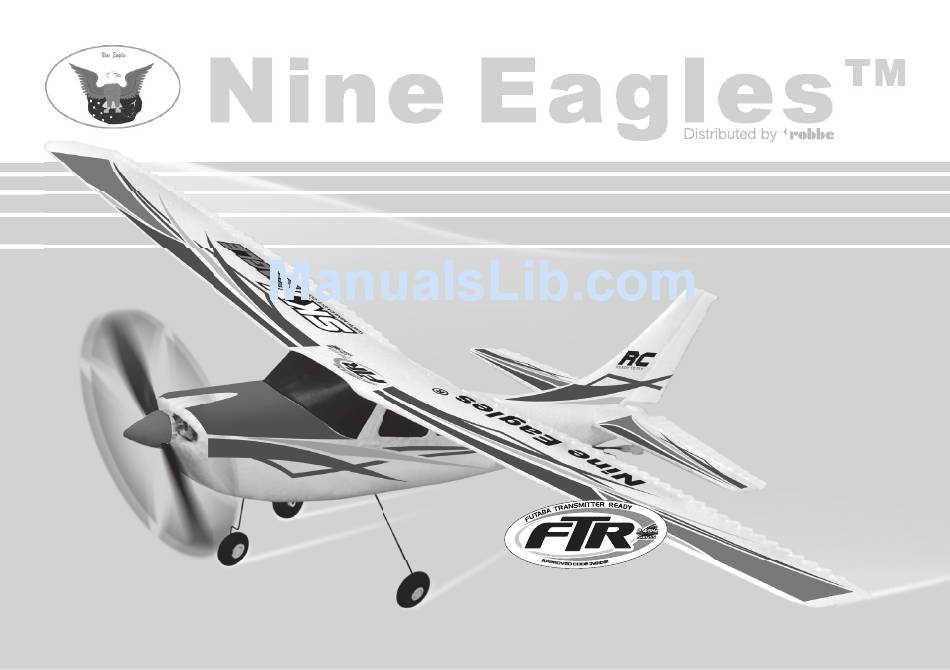

Page 1: Operating Instructions
Operating Instructions SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR... - Page 2 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR FUTABA Transmitter Ready, abbreviated to FTR, applies to selected models from the Nine Eagles range. These models' transmitter and receiver work with the FUTABA S-FHSS code, and can also be operated with FUTABA transmitters which can be operated in S-FHSS mode.
-
Page 3: Table Of Contents
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Explanation of specialist terms: Contents Page FTR system Motor speed ("Throttle"): This controls the rotati- Explanation of specialist terms / Contents onal speed of the motor. Stick forward = maximum... -
Page 4: Safety Notes
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Do not stand close to the hazard area around rotating parts when Be sure to read these Safety Notes before you assemble your mo- del. Always keep to the procedures and settings recommended in an electric motor is connected to the flight battery. - Page 5 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Use only those components and accessories which we specifically re- Insurance commend. Ground-based models are usually covered by standard personal third- party insurance policies. In order to fly model aircraft you will need to Do not carry out modifications to the radio control system components extend the cover of your existing policy, or take out specific insurance.
- Page 6 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Dear customer, Congratulations on choosing a model aircraft from our ran- ge. Many thanks for placing your trust in us. The model can be completed and made ready to fly very quickly.
-
Page 7: Assembling The Model
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Assembling the model Push the noseleg unit into the ap- propriate slot in the underside of the fuselage, forward of the battery compartment (Fig. 4). Fig. 4 Push the main undercarriage into Fig. - Page 8 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Using the charger to charge the flight battery Safety Notes regarding LiPo batteries: • Do not place the battery in water or any other liquid. • Do not heat or incinerate the battery; do not place it in a microwave oven. • Avoid short-circuits, and never charge the battery with reversed polarity • Do not subject the battery to pressure or shock loads, and never distort or throw the pack.
- Page 9 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Transmitter settings, Mode 1: Transmitter settings, Mode 2 (as supplied): Elevator trim Throttle trim Elevator trim Throttle trim Rudder Rudder Elevator Speed Speed Elevator control control control control Rudder...
- Page 10 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR "Primary" and "expanded" control function setting Converting the transmitter from "Mode 2" (throttle left) to "Mode 1" (throttle right) The transmitter offers the facility to adjust the sensitivity of the stick movements. We recommend "softer" reduced The transmitter is supplied set to Mode 2 as standard.
- Page 11 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Transmitter settings Mode 1 Throttle trim: If the propeller starts to move without you touching the throttle stick, or does not respond to stick movements, cor- rect this with the throttle trim.
- Page 12 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Transmitter settings Mode 2 Throttle trim: If the propeller starts to move without you touching the throttle stick, or does not respond to stick movements, cor- rect this with the throttle trim.
-
Page 13: Flight Preparation
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Flight preparation The correct pre-flight procedure. Open the transmitter battery compartment and insert the four AA cells* (check for correct polarity). Switch the transmitter on (Fig. 1). The battery status is shown on the left of the screen. -
Page 14: Controlling The Model
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Controlling the model in Mode 1 Controlling the model in Mode 2 High RPM (launch): Motor off (landing): High RPM (launch): Motor off (landing): Left turn: Right turn: Left turn:... -
Page 15: Important Notes
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Important Notes The first few flights Once the model is properly trimmed, you can practise the Launching: art of flying, and carry out manoeuvres such as circles, Hold the aeroplane in your hand, set the motor to full power, and squares, rectangles and figures-of-eight. -
Page 16: Re-Binding The Transmitter
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Re-binding the transmitter This procedure is only necessary if you replace individual components, or if you wish to bind a FUTABA transmitter (please also read the point "Binding the receiver" in the operating instructions supplied with your FUTABA transmitter). -
Page 17: Replacement Parts List
Replacement parts list - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Replacement parts list - SKY EAGLE RTF Order No. Description NE200903 Propeller set NE200905 Undercarriage NE200906 Control surface linkage NE200907 Motor set NE200908 Screw set NE200903 NE200905 NE200906 NE200909 LiPo battery, 7.4 V / 180 mAh... -
Page 18: Notes
Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR Notes:... - Page 19 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR robbe Modellsport GmbH & Co. KG hereby declares that this device conforms to the fundamental requirements and other relevant regulations of the corresponding EC Directive. Under www.robbe.com, you will find the original Conformity Declaration by clicking on the Logo button "Conform"...
- Page 20 Operating instructions - SKY EAGLE RTF FTR 2.4 GHz No. NE2009FTR robbe Modellsport GmbH & Co.KG Metzloserstraße 38 · D-36355 Grebenhain Technical hotline: +49 (0)66 44 / 87-777 · hotline@robbe.com Commercial register: Gießen Regional Court HRA 2722 Partner with personal liability: robbe Modellsport Beteiligungs GmbH Gießen / HRB 5793 Managing Director: E.
