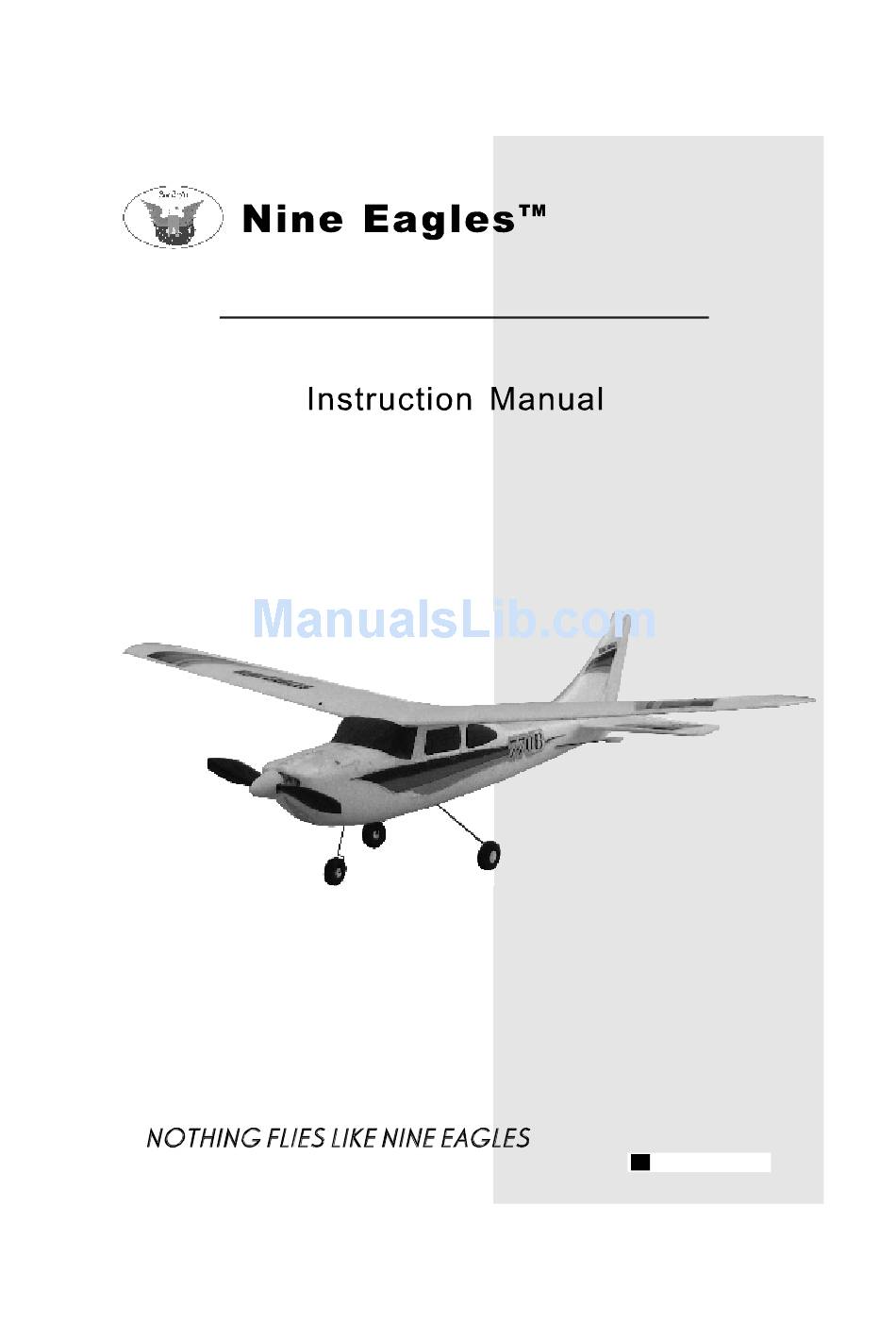

  • Page 1 Sky Eagle NE R/C 770B Sky Eagle Three channel 770B1113...
  • Page 2 User Handbook Congratulations on becoming a Nine Eagles airplane pilot! To ensure safe use, please read this manual thoroughly before flying the helicopter. If you have never flown an RC Helicopter before, The Free Spirit Micro and Solo are your best choice! Catalogue Introduction..................2...

  • Page 3: Fcc Information

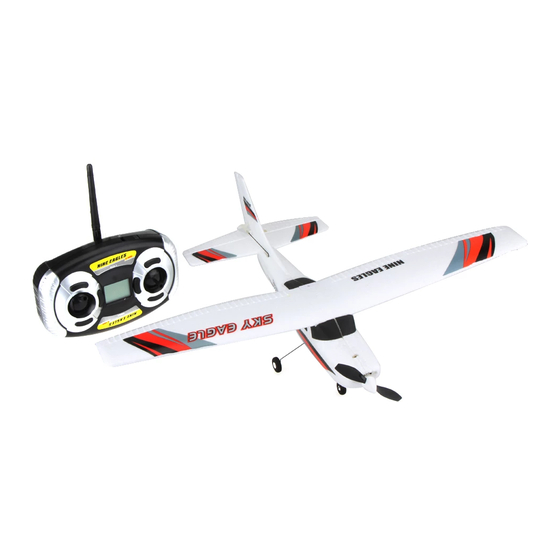

    Introduction Shanghai Nine Eagles Electronic Technology Co. Ltd's product NE R/C 770B Sky Eagle Three channel airplane is specially designed for beginners as a training airplane. The airplane has adopted the exclusive protective device for the propeller. With the high strength EPP material for body, the plane will be intact even when it crashed.

  • Page 4: Warning

    -- Consult the dealer or an experienced radio/TV technician for help. Warning NE R/C 770B Sky Eagle is not a toy. Children under 14 years old are strictly forbidden from flying this airplane You must fly this airplane safely.
  • Page 5 Charging and discharging the batteries has the potential for fire, serious injury to persons and damage to property. The user of this battery agrees to accept responsibility for all such risks. Nine Eagles™, its affiliates, distributors, and retail partners can not control the use, application,...

  • Page 6: Specification

    Never attempt to charge a damaged battery, no matter how slight the damage. Dispose of damaged batteries as the instructions below. 4.Only use the Nine Eagles balanced charger designed for this battery. Never use chargers designed for Ni-CD batteries. If the batteries show any sign of swelling, remove them to a safe place outside as they could erupt into flames.

  • Page 7: Product List

    Product List Description Sky Eagle Airplane Transmitter Power Adapter Li-Po Battery Charger...

  • Page 8: Instruction For Assembling The Airplane

    Instruction for assembling the airplane 1. Apply the glue around the slot on the tail (See figure A) before fitting the horizontal empennage on the tail slot. Make sure the empennage is in line with the body (See figure B) 2.
  • Page 9 5) In order to charge safely and fastl,please use only Nine Eagles. 6) Please observe the battery when charging. 7) Please keep the battery away from cources of heat at all times .Donot cover the charger or battery.Alwayw keep them ventilated.

  • Page 10: Transmitter Control Identification

    Transmitter Control Identification mode1 Rudder Throttle stick Elevator stick primary Advarced coding button switch Rudder Trim Battery power Elevator Trim Throttle Trim Aileron Trim Primany Advanced switch...
  • Page 11 mode2 Elevator Direction stick Primany Advanced Direction Trin...

  • Page 12: Preparation Before Fly

    Preparation before fly 1. Take off the battery box cover of remote controller 2. Install 4 pieces of AA batteries 3. Turn on the power, check if LCD screen has readings: 4. Open the battery box cover of the airplane (See figure A). Connect the two plugs of the battery together (See figure B).
  • Page 13 Pre-flight check Make sure all trim buttons are in the middle position, and the throttle stick is at its lowest position before fly. Make sure airplane is in a horizontal path against wind before casting WIND Throttle trimming MODE 2 If the propeller runs when no throttle stick input is given, or it doesn't run when the throttle stick input is given, an adjustment for the throttle trim system is required.
  • Page 14 Rudder trimming MODE 2 When the airplane tilts upwards and downwards during fly, an adjustment of rudder is required. If the airplane tilts downwards, push the trim button downwards until it doesn't tilt. If the airplane tilts upwards, push the trim button upwards until it doesn't tilt.

  • Page 15: Fly Practice

    Mode 2 Rudder Throttle Elev ator Right movement Acceler ation Left movement down D ecelerate Flying field The flying field selected must be suitable for flying. No obstacles are allowed when flying the plane in the room. The plane must be flied in open area.

  • Page 16: Notify Items

    PO Battery ,and take the batteries out of the transmitter. Miscellaneous Repairs and Maintenance A wide range of genuine Nine Eagles™ parts and accessories are available from your local Nine Eagles supplier. Please review the enclosed Parts List Brochure to see what is available.
