INSTALLATION INSTRUCTIONS
USER GUIDE

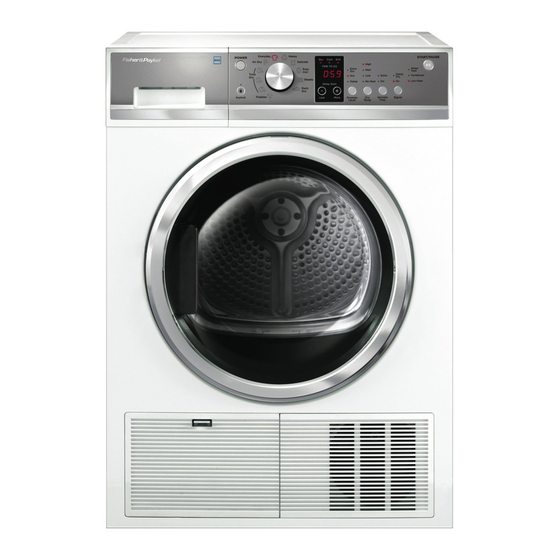

Condenser clothes dryer
DE8060P model
NZ AU SG ROW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE8060P and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher & Paykel DE8060P

Summary of Contents for Fisher & Paykel DE8060P

  • Page 1 INSTALLATION INSTRUCTIONS USER GUIDE Condenser clothes dryer DE8060P model NZ AU SG ROW...

  • Page 3: Table Of Contents

    CONTENTS Introduction Safety and warnings Installation instructions Getting started quickly Dryer controls Sorting and loading Drying cycles Drying cycle options Caring for your dryer Before you call for service Fault codes Troubleshooting Manufacturer’s Warranty Customer Care ImpORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this user guide may provide you with the best service possible.

  • Page 4: Introduction

    iNTROdUCTiON Welcome to your new condenser dryer Thank you for purchasing a Fisher & Paykel clothes dryer. Your new dryer gives you the convenience of tumble drying and your clothes the advantage of not being subjected to the harsh overdrying effects of the sun. Your clothes will feel softer, retain their shape better and require less ironing.

  • Page 5: Safety And Warnings

    SAfETy ANd WARNiNGS Caution, risk of fire – this is a safety symbol. failure to follow the warnings outlined in these user instructions can cause a fire hazard. WARNiNG! fire Hazard Only dry fabrics that have been washed with water. ●...
  • Page 6 SAfETy ANd WARNiNGS Children should be supervised to ensure they do not play with the dryer. ● ● Unplug the machine from the power supply when it is not in use. ● ● do not swing or put weight on the door. ●...
  • Page 7 SAfETy ANd WARNiNGS The dryer is not to be used if industrial chemicals have been used for cleaning. ● ● fabric Softeners or similar products should not be used in a tumble dryer to eliminate ● ● the effects of static electricity, unless this practice is specifically recommended by the manufacturer of the fabric softener product.

  • Page 8: Installation Instructions

    iNSTALLATiON iNSTRUCTiONS Please read and follow the ‘Safety and warnings’ and ‘installation instructions’ sections carefully before using your dryer! Accessories Please check you received the following accessories with your Fisher & Paykel dryer. You will find them inside the drum: 1 x Drying rack ●...
  • Page 9 iNSTALLATiON iNSTRUCTiONS installation options Your dryer can be installed one of two ways, either freestanding, or stacked on top of a Fisher & Paykel front loading washer (specific models only). Free standing The dryer stands on the floor and can easily be moved into position. Stacking Your dryer has been designed to be able to be stacked on top of a Fisher &...
  • Page 10 iNSTALLATiON iNSTRUCTiONS draining The dryer is equipped with a condenser unit which accumulates water during the drying cycle. This water is collected in the removable water tank located at the top left of the dryer. The accumulated water must be emptied after each drying cycle.
  • Page 11 iNSTALLATiON iNSTRUCTiONS Electrical connection This appliance must be connected to a 220 V – 240 V, 50 Hz, sinusoidal, 10 A electrical supply. Uncoil the power cord, remove and discard the plastic pin cover and plug into a power socket. Connect the appliance to an earthed outlet protected by a fuse of suitable capacity. Check the power cord for damage and make sure it is not squashed or twisted when ●...
  • Page 12 iNSTALLATiON iNSTRUCTiONS Completing the installation Installation test cycle ImpORTANT! Ensure the installation test cycle is completed before you dry any items in your dryer. This is to check that your dryer is installed correctly and that it is functioning properly prior to use.

  • Page 13: Dimensions (Mm

    Machine specifications dE8060P Capacity (kg)* diMENSiONS (mm) Width Depth Height** Length of drain hose 1300 ELECTRiCAL Volts 220 – 240 Amps (maximum) Heating Power (W) 1800 * Capacity refers to the maximum dry weight of items the machine can dry at any one time.

  • Page 14: Getting Started Quickly

    GETTiNG STARTEd qUiCKLy Check the lint filter is clean and the water tank is empty before every load. Ensure ● ● both are replaced correctly before using your dryer. Sort and load items into the dryer drum, ensuring no items are in the way of the door. ●...
  • Page 15 GETTiNG STARTEd qUiCKLy If you make an invalid selection the dryer will beep to alert you. ● ● When the cycle finishes, your dryer will beep and then turn off automatically. If the ● ● ‘Wrinkle Free’ option has been selected the machine will rotate the drum periodically blowing cool air into the drum to help minimise wrinkling and creasing of your load.

  • Page 16: Dryer Controls

    dRyER CONTROLS SmartTouch™ Control dial The SmartTouch™ Control Dial provides easy and efficient drying cycle selection. As you rotate the dial, the icon of the drying cycle selected will be illuminated, SmartTouch™ Control Dial along with the default settings for that cycle on the right side of the control panel.

  • Page 17: Sorting And Loading

    SORTiNG ANd LOAdiNG When preparing your load there are some important things to consider: Sorting It is best that you sort your garments before placing them into the dryer. Sort into loads ● ● of similar items, and loads that will take similar times to dry. Heavier items (eg towels, t-shirts and flannelette sheets) are best dried separately from lightweight items (eg synthetics, polyester-cotton sheets and shirts).
  • Page 18 SORTiNG ANd LOAdiNG before you load Check pockets for items that could damage your clothes or get caught in the dryer. ● ● Close zippers, hooks and eyes, and other fastenings (ie fasten the openings of duvet/ ● ● doona covers), and remove loose bra wires. These may damage both your dryer and your clothes.
  • Page 19 SORTiNG ANd LOAdiNG drying times Drying very small loads is inefficient. Try to dry medium to large loads. ● ● Heavier items (towels, T-shirts, flannelette sheets) will take longer to dry than light items ● ● (synthetics and polyester cotton sheets and shirts). Spin clothes at the highest spin speed suitable for the load type.

  • Page 20: Drying Cycles

    dRyiNG CyCLES Your dryer has a number of drying cycles to suit your laundry needs. Selecting the most appropriate cycle for each particular load will help ensure you get the best result. dEfAULT dEfAULT MAx. CyCLE dESiGNEd fOR dESCRiPTiON LOAd dRyNESS dRyiNG SiZE (KG)

  • Page 21: Drying Cycle Options

    dRyiNG CyCLE OPTiONS All drying cycles default to the recommended options for that cycle based on the average expected load to be dried using that cycle. You can vary the options (eg ‘Dryness Level’, ‘Dry Temp’) to create your desired cycle. Note: some options are not available on some cycles, for clothes care reasons, or because the option is not appropriate for the cycle.
  • Page 22 dRyiNG CyCLE OPTiONS Wrinkle free If you wish to minimise wrinkling, select one of the ‘Wrinkle Free’ options. At the end of the cycle, the drum will rotate periodically and cool air will be circulated through the load to minimise wrinkling and creasing. This is particularly useful if you cannot remove the items immediately after the cycle ends.
  • Page 23 dRyiNG CyCLE OPTiONS delay Start The ‘Delay Start’ option enables you to delay the start of the drying cycle from between 5 minutes and 12 hours. Times you can select are 5 min, 15 min, 30 min, 1 hour, then hourly up to 12 hours. This can be useful to time your drying to finish when you arrive home from work, or to start when power rates are lower.

  • Page 24: Caring For Your Dryer

    CARiNG fOR yOUR dRyER When you have finished using your dryer Unplug the machine from the power socket. ● ● Wipe around the door to remove any remaining condensation and foreign matter. ● ● Clear the lint filter and empty the water tank (if not set up to automatically drain). ●...
  • Page 25 CARiNG fOR yOUR dRyER Emptying the water collection tank: During the drying cycle steam condenses into water and is collected in the water tank, located at the top left of the dryer. It is important to empty the water tank after every load. There is an indicator light that will illuminate when the water tank needs emptying.
  • Page 26 CARiNG fOR yOUR dRyER Cleaning the sensors: There are humidity sensors in your machine that detect whether the laundry is dry or not. These sensors need to be cleaned periodically (we recommend approximately four times a year). To clean the sensors: Location of the Open the door of your machine.

  • Page 27: Before You Call For Service

    bEfORE yOU CALL fOR SERviCE User warnings Your dryer is capable of diagnosing a number of its own problems. It will sound a continuous series of beeps and display a code when it has a problem that you can correct yourself. All control panel lights will turn off and a code will be displayed to inform you what the problem is.

  • Page 28: Fault Codes

    fAULT COdES When a continuous series of beeps is sounded, all the lights turn off on the control panel and a number appears on the display, a fault has occurred. The dryer will automatically enter this mode if a fault occurs. The fault code will be displayed as followed by a number on the digital display.

  • Page 29: Troubleshooting

    TROUbLESHOOTiNG The following is a list of problems you may encounter when using this appliance and some suggestions that may help to correct the problem. If you still have problems, please contact your Fisher & Paykel Authorised Repairer. PRObLEM POSSibLE CAUSES WHAT TO dO Electrical cord not plugged Plug cord into a power socket.
  • Page 30 TROUbLESHOOTiNG PRObLEM POSSibLE CAUSES WHAT TO dO Dryer keeps The ‘Wrinkle Free’ option Refer to page 20 for more stopping and has been selected. information. starting. Dryer stops Power failure. Press and restart the desired working mid- cycle. cycle. Dryer has been paused. Touch the button to restart the cycle.
  • Page 31 TROUbLESHOOTiNG PRObLEM POSSibLE CAUSES WHAT TO dO Dryer is not Drain hose not connected to Ensure the drain hose is connected draining. the water tank. correctly (refer to page 8). Water tank not in place Ensure water tank is properly in correctly.
  • Page 32 TROUbLESHOOTiNG PRObLEM POSSibLE CAUSES WHAT TO dO Cycle time longer Cycle time may be affected Cycle time is affected by the size than usual. by a number of factors and and composition of the load, how is approximate. wet/dry the load was to begin with, the environmental conditions the dryer is operating in, cycle options selected, sensing while drying and...
  • Page 33 TROUbLESHOOTiNG PRObLEM POSSibLE CAUSES WHAT TO dO Linting. Lint filter not cleaned or Ensure the lint filter is cleaned after replaced. every cycle and replaced correctly. Refer to page 22. Dryer is overloaded. Remove some items from the dryer. Loads not sorted correctly. Dry lint givers separately from lint receivers.
  • Page 34 TROUbLESHOOTiNG PRObLEM POSSibLE CAUSES WHAT TO dO Dye transfer. White/ light and coloured Remember to separate white/light items not separated before and coloured items before placing drying. them in the dryer. Wet items left sitting in the Do not leave wet items sitting in dryer for long periods of the dryer for long periods of time time before drying.

  • Page 35: Manufacturer's Warranty

    MANUfACTURER’S WARRANTy You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this Condenser clothes dryer covering parts and labour for servicing within the country of purchase. fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase.
  • Page 36 MANUfACTURER’S WARRANTy Service under this Manufacturer’s Warranty must be provided by a Fisher & Paykel Authorised Repairer (refer to the ‘Customer Care’ section at the back of this book). Such service shall be provided during normal business hours. This warranty certificate should be shown when making any claim.

  • Page 37: Customer Care

    CUSTOMER CARE before you call for service or assistance... Check the things you can do yourself. Refer to your user guide and check: Your product is correctly installed. You are familiar with its normal operation. You have read the ‘Before you call for service’, ‘Fault codes’ and ‘Troubleshooting’ sections at the back of the book.

  • Page 38: Registration

    CUSTOMER CARE *If you call, write or contact our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance. Product details can be found on the rear of the machine, and/or on the inside of the door below the glass (when the door is open).

  • Page 40: Www.fisherpaykel.com

    www.fisherpaykel.com Copyright © Fisher & Paykel 2014. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your dealer to ensure this booklet correctly describes the product currently available.
