SECTION 2
• MAIN UNIT
Antenna switching circuit
(D52: MA77)
APC
(IC50: NJM2125F)
Power amplifier
(Q54: RD07MVS1)
IF amplifier
(Q151: 2SC2714 Y)
TX/RX switch
(D50, D51: MA77)

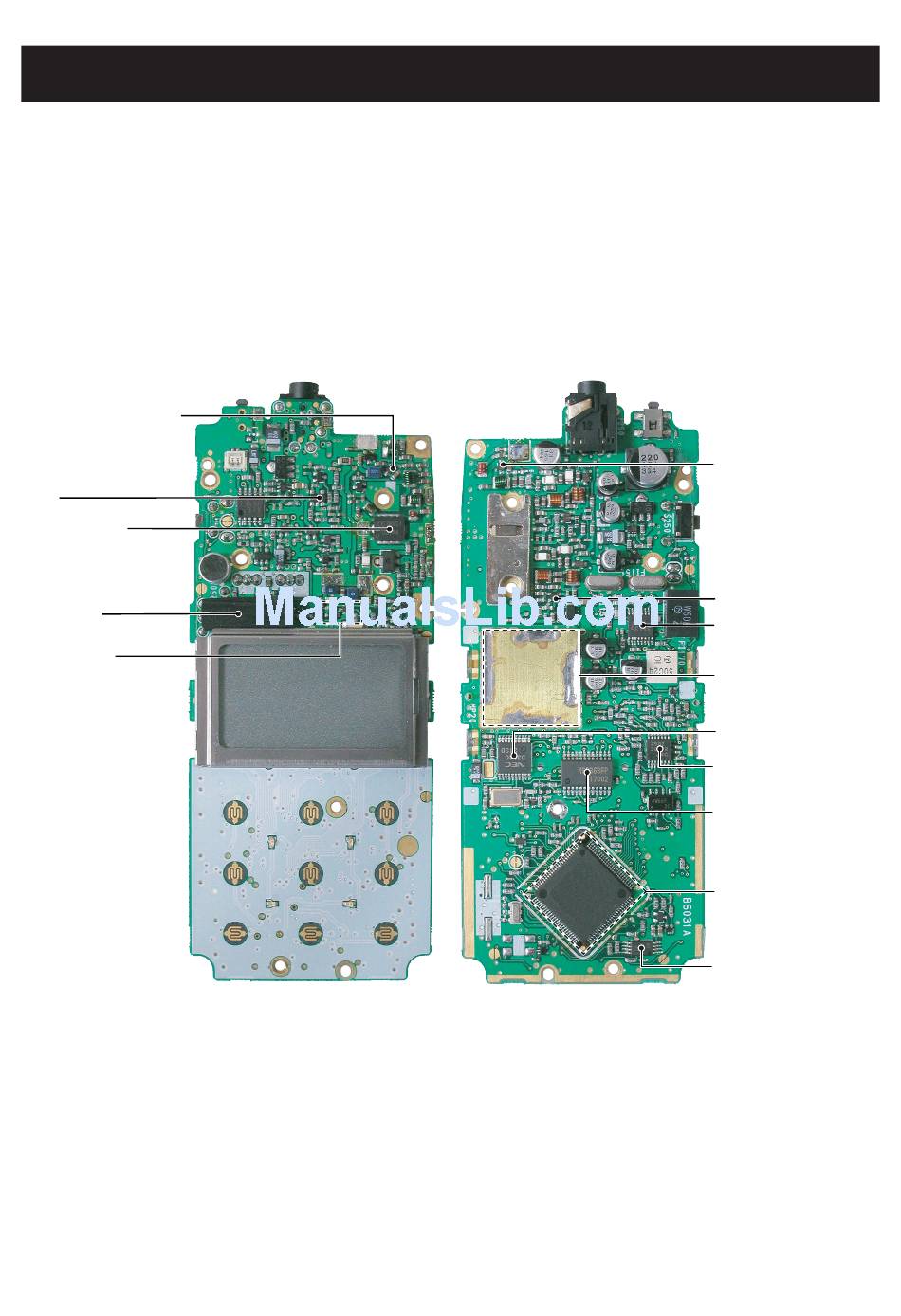

INSIDE VIEWS
TOP VIEW
BOTTOM VIEW
2 - 1
Antenna switching circuit
(D90: 1SV307)
1st mixer
(Q150: 3SK299)
IF detector IC
(IC170: TA31136FN)
VCO circuit
PLL IC
(IC1: µPD3140GS)
Mic amplifier and
low-pass filter circuits
(IC200: NJM2902V)
D/A converter
(IC190: M62363FP-650C)
CPU
(IC360: M37560M8A-700GP)
EEPROM
(IC340: BR24L16FV)
