Icom IC-M32 Service Manual page 13

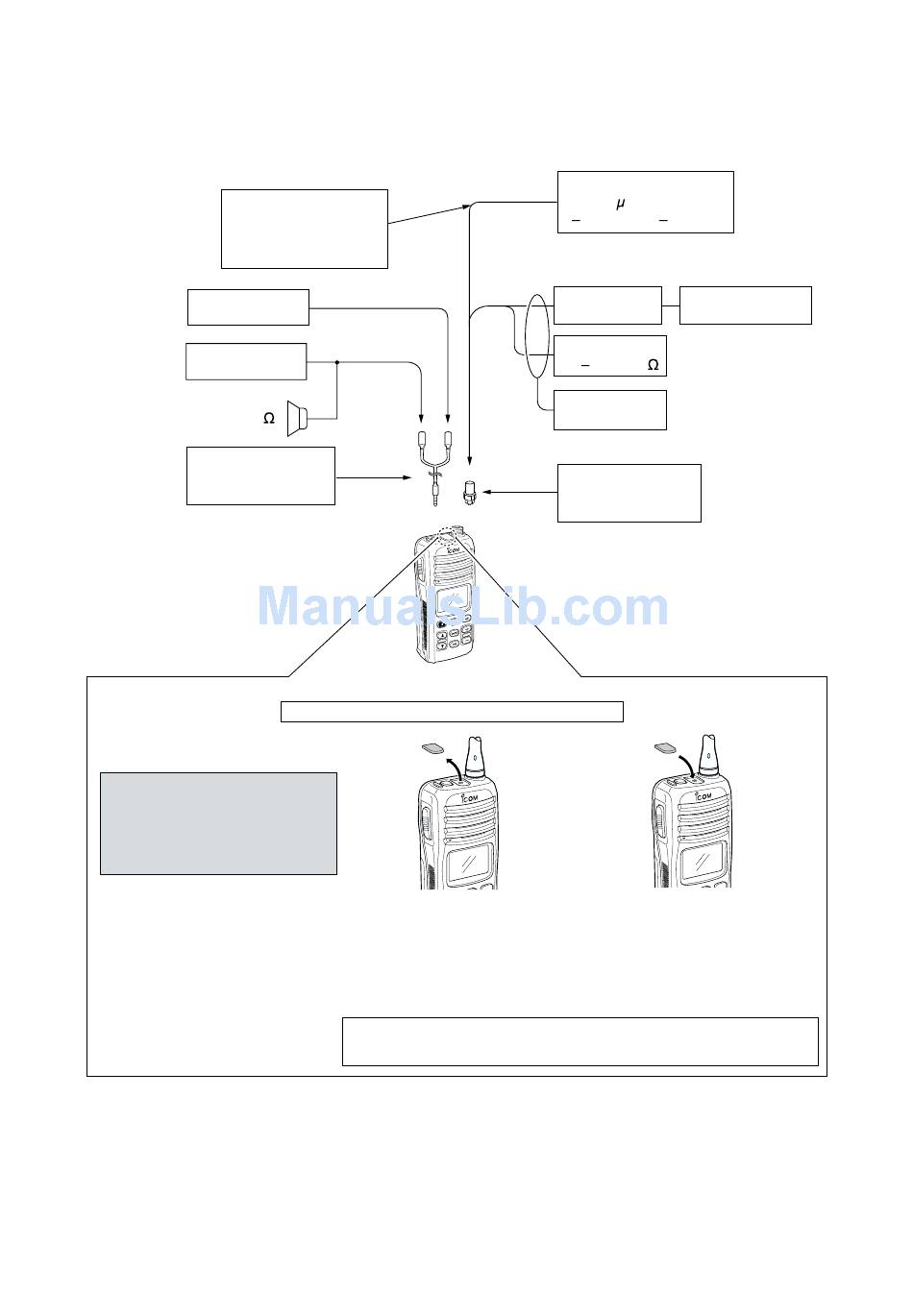

• CONNECTION
Audio generator
SINAD meter
Speaker (8
OPC-782
Optional plug adapter
cable
CAUTION!
DO NOT
detach the TOP PANEL
except for adjustment or cloning
to maintain the water resistance
capability.
CAUTION!
DO NOT transmit while
an SSG is connected to
the antenna connector.
to [MIC] jack
to [SP] jack
)
DETACHING/ATTACHING THE TOP PANEL
Detach the TOP PANEL with a
sharp point such as tweezers for
adjustment.
BE CAREFUL cracking the TOP
PANEL.
NOTE:
adhesion, replacement to a new one is necessary.
Standard signal generator
to the antenna connector
( 127 dBm to 17 dBm)
Attenuator
40 dB or 50 dB
RF power meter
0.1 10 W/50
Frequency
AD-98FSC
Optional STUD-BNC
adapter
If the tape on the back of the TOP PANEL has lost its
5 - 2
0.1 V to 32 mV
FM deviation meter
counter
After adjustment, be sure to
reattach the TOP PANEL to
maintain the water resistance
capability.
