Chairman Robo Owner´s manual
Key switch
The key switch is a plug which is inser-
ted in the side of the control panel. The
key must be inserted before the main
power switch can be activated.
Main power switch
The main power switch functions as
an on/off button for the power supply
to the wheelchair and must be swit-
ched on for the wheelchair to work.
Seat lift
The switch for maneuvering the seat
lift up and down. When the seat lift is
in operation, the indicator lamp lights
(figure 11). When the seat lift is activa-
ted from its lowest position, the maxi-
mum speed is reduced by half
(2,2 miles/h).

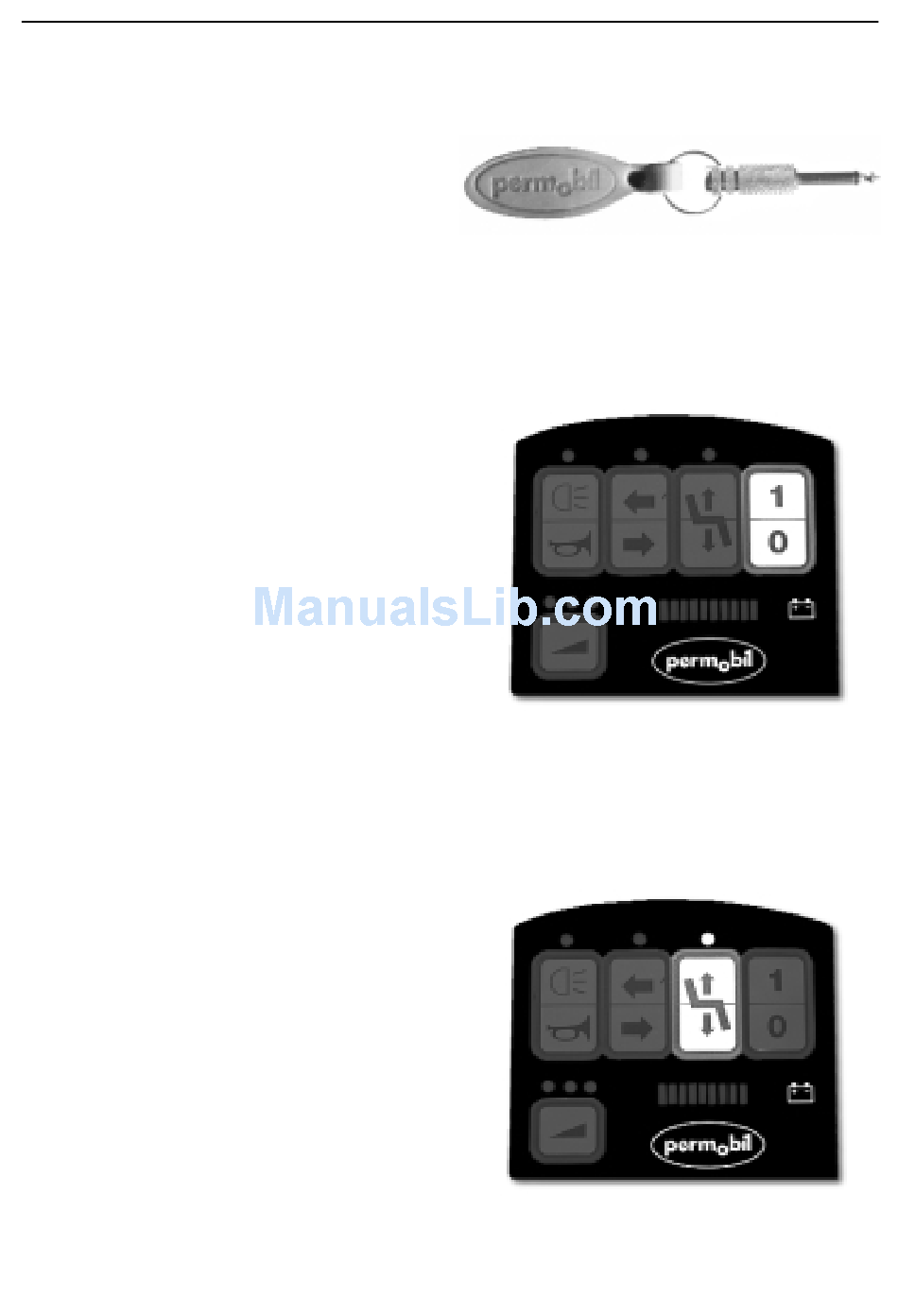

Figure 10. Key switch
Figure 11. Main power switch
Figure 12. Seat lift switch
- 15 -
Design and function
