<Vari-focal Lens with Auto Iris> --- Optional Lens

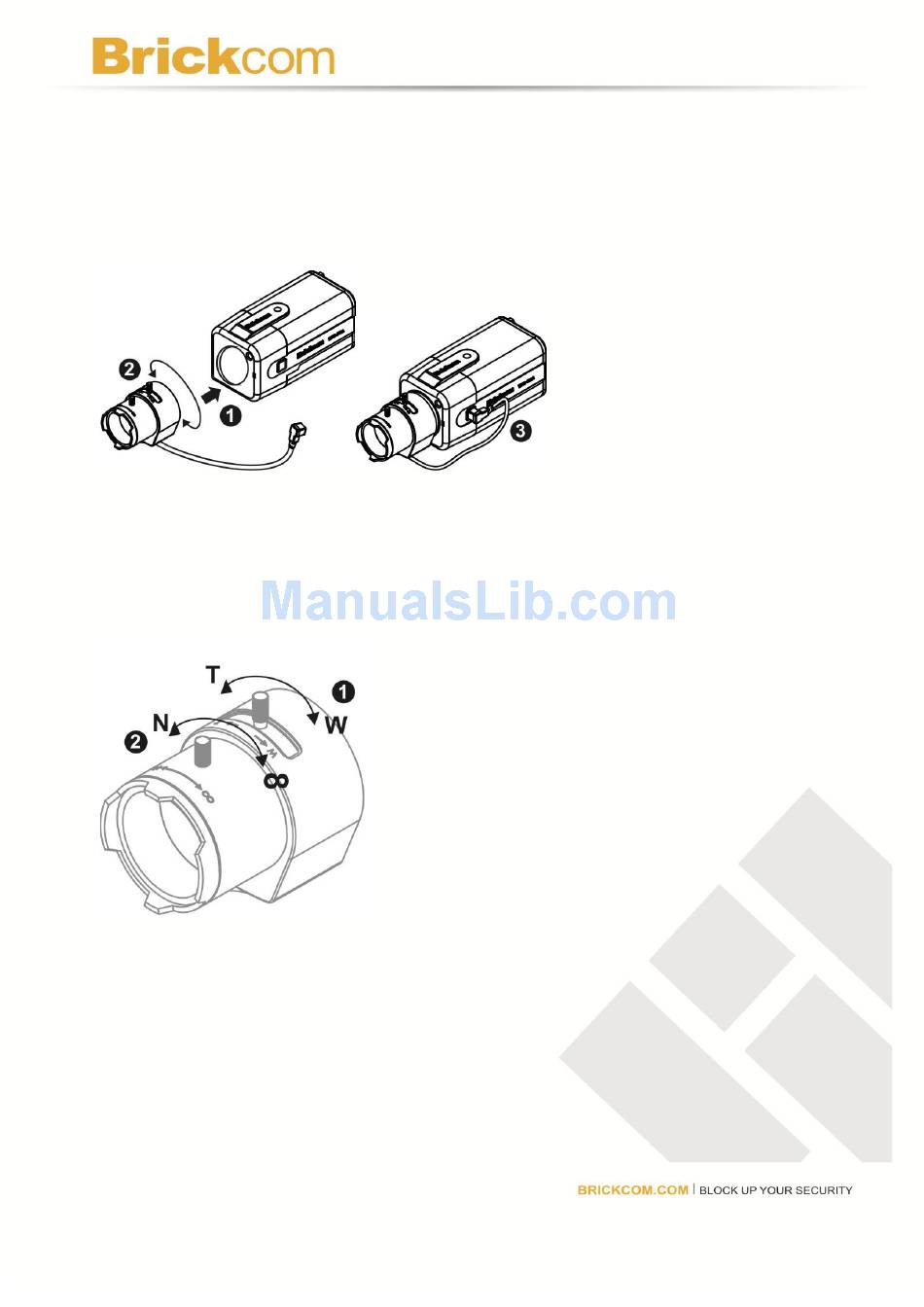

Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount
until it stops.
If necessary, adjust focus controller, and zoom controller to get the best resolution.
Connect the lens cable plug (DC Iris control cable) to the camera side connector.
To adjust the lens:
The zoom controller can be manually adjusted to control the zoom factor on the camera.
Users can create a tighter or wider view of the site being recorded.
Adjust the focus controller to control the focus range of the lens.
*For further information of vari-focal lens with auto iris, please refer to the supplied lens'
instruction manual.
