<Vari-focal Lens with Auto Iris> (DC Drive) --- CS Mount
Focus Controller
Extension I/O Terminal Block

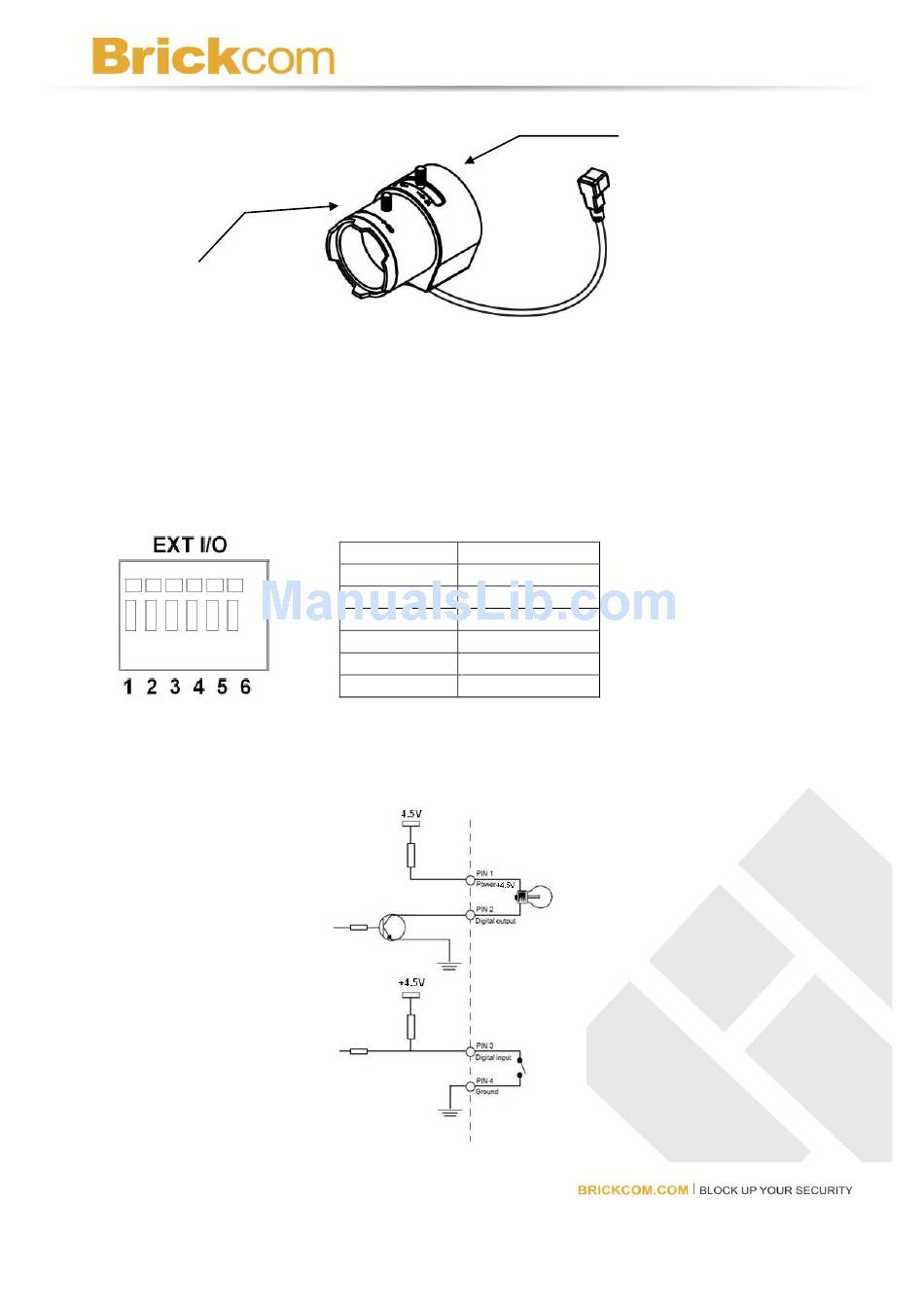

The Network Camera provides an extension I/O terminal block which is used to connect the
camera with external input/output devices. The pin definitions are listed as below.
DI/DO Diagram
Pin
Function
1
Power +5V
2
Digital Output
3
Digital Input
4
Ground
5
RS-485 -
6
RS-485 +
9
Zoom Controller
