Chapter 5- Installation

5.1 Hardware Installation

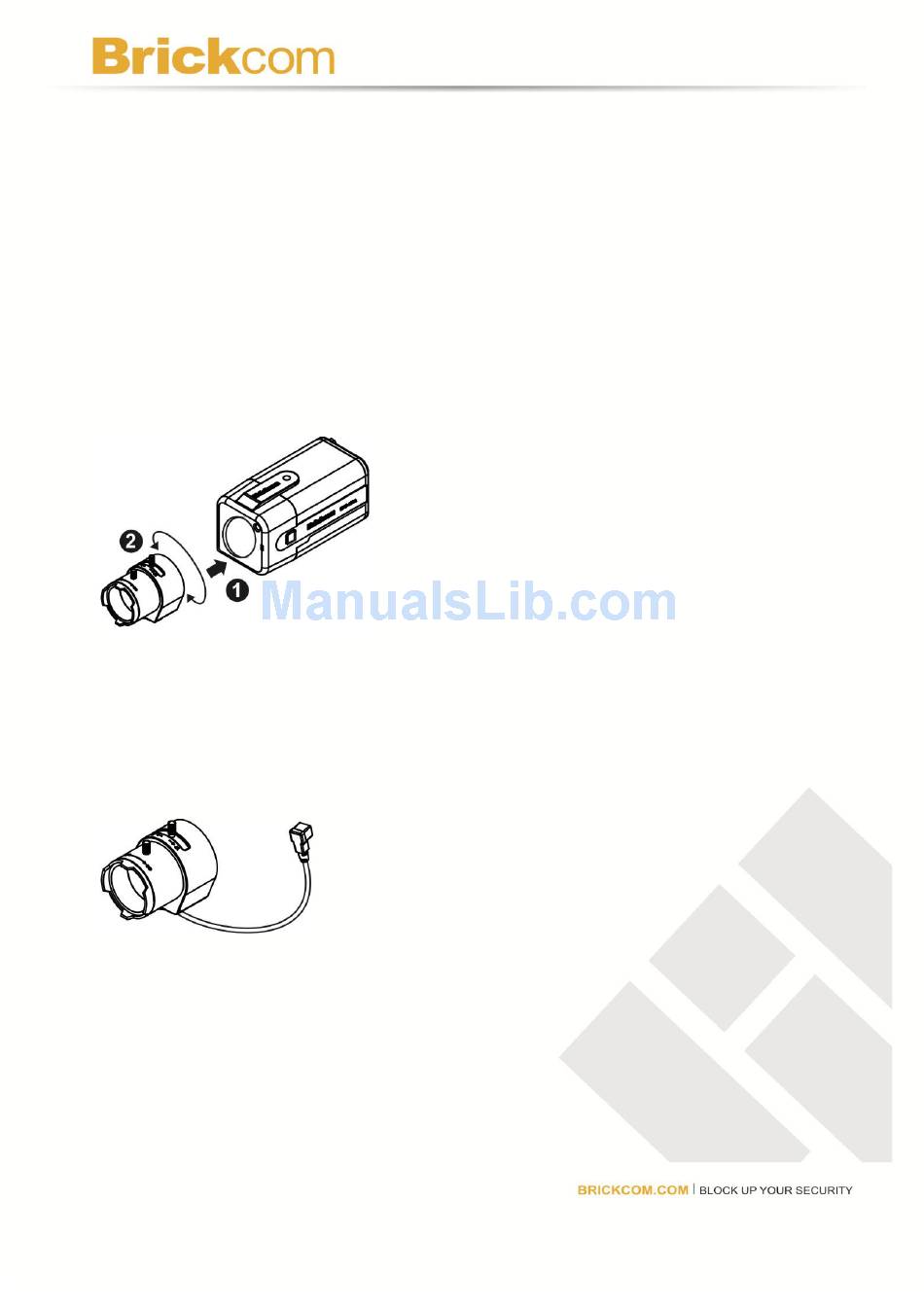

Mounting the CS-Mount Lens to the Camera
<Vari-focal Lens with Manual Iris> --- Optional Lens
Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount
until it stops.
If necessary, adjust the iris controller, focus controller, and zoom controller to get the best
resolution.
To adjust the lens:
Adjust the iris ring controller to control the amount of light coming through the lens. The
more the iris is opened, the brighter the scene will be.
The zoom controller can be manually adjusted to control the zoom factor on the camera.
Users can create a tighter or wider view of the site being recorded.
Adjust the focus controller to control the focus range of the lens.
