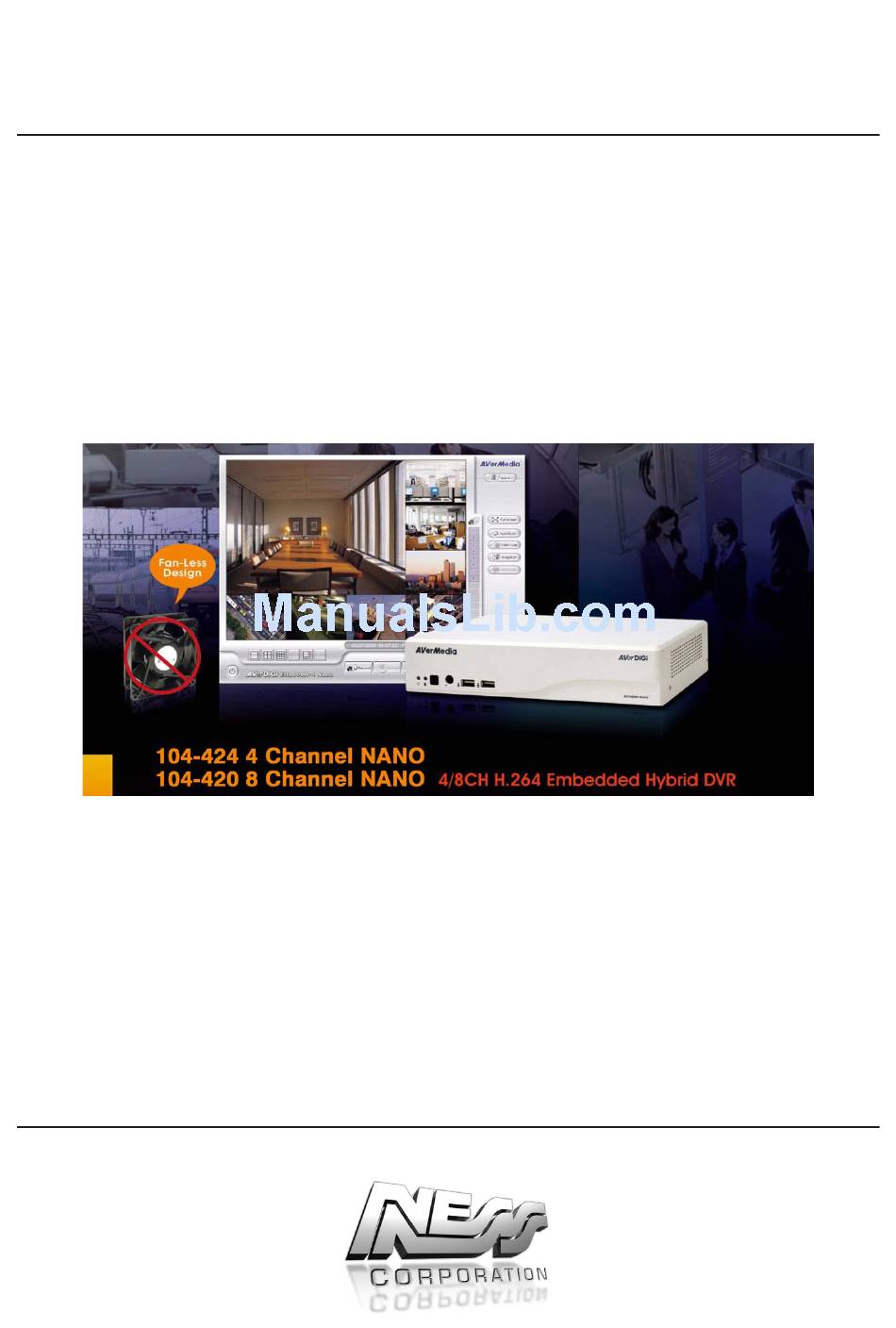

  • Page 1 104-424 / 104-420 Nano 4ch / 8ch DVR FiRmwaRe UpDate pRoceDURe...
  • Page 2 Innovative Electronic Solutions www.ness.com.au...
  • Page 3 The following sections are described how to upgrade the firmware of DVR system. The way to upgrade the firmware are same for EH1116H-4 series and EH6000H series DVR. We use EH1116H-4 series DVR as an example in following sections. Please make sure your DVR model before download DVR firmware. Wrong DVR model’s firmware may cause the DVR system break down.
  • Page 4 2. After download the firmware file, un-zip the file and save on USB pen drive. [Note] Copy the entire firmware file folder into USB pen drive. 3. Then, create a folder named Update and copy the IP camera patch file that user can download from web site http://surveillance.aver.com/ same as downloading the firmware file and import configuration file that user has export from DVR system.
  • Page 5 7. After firmware upgrade is completed, the DVR system will check the files of Update folder and if configuration file and IP camera patch file has found, then, the import and upgrade procedure will be processed. If file is not found, the message is displayed it.
  • Page 6 Local UI Upgrading Upgrade the DVR system firmware through Update button in System Setting window. When upgrading DVR firmware, the IP camera patch file is upgrading at the same time. When upgrading IP camera patch file, only IP camera patch file is upgraded. 1.
  • Page 7 2. Plug the USB pen drive to USB port on DVR unit. Then, click Setup >> System and click Update button. Current DVR System firmware version Click it to start firmware upgrade 3. After click update button, Firmware Update dialog is shown up and DVR system has detected the firmware file on USB pen drive and ready for upgrading procedure.
  • Page 8 5. After upgrade is completed, click OK and DVR system will reboot automatically.
  • Page 9 III. Remote ISP Upgrading User can upgrade the DVR firmware from remote PC. The PC that uses to upgrade DVR firmware must can connect to DVR system through LAN or WAN network. The DVR hard disk needs to have 250MB free spec. When upgrading DVR firmware, the IP camera patch file is upgrading at the same time.
  • Page 10 Run the ISP application on PC and enter the DVR’s IP address, Port (Remote Update Configuration port in Network setting), and Password (admin password). Then, Click Read File button and locate where firmware file is. Click Connect button to connect with DVR system. After connected with DVR system, click Upload button to upload the firmware to DVR system.
  • Page 11 Then, click Confirm button to start upgrading procedure. If user wants to discontinue the upgrade procedure, click Stop button instead Confirm button. After confirm the upgrade procedure, the upgrading window is displayed on screen at DVR system site. Wait until the upgrade complete message is displayed on ISP application, the upgrade procedure is completed.
  • Page 12 © 2012 AVer Information Inc. All Rights Reserved.
