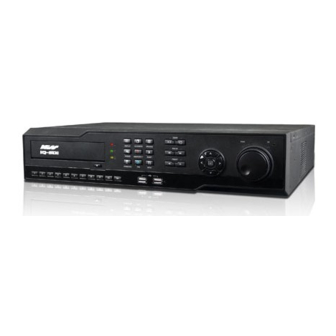

Ness IQ Premium DVRs Series III
HD-SDI / 960H / Hybrid
User's Manual
REV Nov14

Advertisement

Table of Contents
loading

Related Manuals for Ness HD-960H

Summary of Contents for Ness HD-960H

  • Page 1 Ness IQ Premium DVRs Series III HD-SDI / 960H / Hybrid User’s Manual REV Nov14...
  • Page 2 FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 Cautions  This product has free voltages (100V ~ 240V). See installation instructions before connecting to the power supply.  This product uses a Lithium battery.  To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. ...
  • Page 4 12. Servicing  Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel. 13. Damage Requiring Service  Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions: ①...
  • Page 5 The List of Configuration 4 / 8CH DVR Set 8 / 16CH Manual / CMS CD Remote Controller Quick Guide Screws HDD Brackets Rack Bracket (Except A and E Type) Data Cable Power Cable Adapter...
  • Page 6 Mandatory Setup & Operation Precautions  STEP 1. Date / Time Configuration (‘before’ HDD(s) installation)  Plug a network cable, if any.  Turn on the DVR and press ‘OK’ on no HDD(s) detection message.  Go to SETUP>SYSTEM>General>Setup.  Check on ‘NTP Setup’ box, and then select your ‘Time Zone’. ...

  • Page 7: Table Of Contents

    Table of Contents 4.3.4  Storage ..........41  PRODUCT FEATURES ........ 10     4.3.5  Camera ..........44  1.1  Unpacking ............10  4.3.6  Audio ........... 45  1.2  Service ............10  4.3.7  Text-In ..........45  4.4  RECORD ............45  1.3  System Connection Diagram ......10  4.4.1 ...
  • Page 8 6.5  View ..............83  8.1  System Requirements ........ 115  6.5.1  Server List ........... 83  8.2  Setup and Login .......... 115  6.5.2  Remote Device System Log ....84  8.3  Live Display ..........116  6.5.3  Remote Device Event Log ....84  6.5.4  CMS System Log ........ 85  8.4 ...
  • Page 9 11.1  U sage of Serial-In Function ....... 145  12.1.9  C able ..........156  12.1.10  S creen Display Information ... 156  11.2  C onnection Method ........145  12.2  H D SDI repeater .......... 157  11.3  C onnection Diagram ........145  12.2.1  I ntroduction ........157  11.4 ...

  • Page 10: Product Features

    Product Features 1.1 Unpacking  This equipment is an electronic appliance, so it should be handled with special care.  After unpacking, please check if all the following items are included. - DVR Main body A and E Type : Power Supply Adapter (DC 12V, 5A) and Power Supply Cable C and F Type : Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable J Type...
  • Page 11 C Type – 16 channel IQ Series 960H DVR...
  • Page 12 E Type – 4 channel IQ Series HD-SDI DVR...
  • Page 13 F Type – 8 / 16 channel IQ Series HD-SDI DVR...
  • Page 14 J Type – 8 / 16 channel Series True Hybrid DVR...

  • Page 15: Specification

    1.4 Specification Type Signal Format NTSC or PAL (Auto / Manual) Video Input 4 / 8 (BNC) 16 (BNC) Video Output Composite : 1 1 port (Max. 1920 x 1080) HDMI 1 port (Max. 1920 x 1080) Spot Out Composite : 1 (Multi Spot) Loop Out 16 (BNC) Recording rate (Max)

  • Page 16: Installation

    Installation 2.1 Hard disk and DVD-RW Installation 2.1.1 SATA Port  When installing HDDs, make sure to connect from SATA 1 Port. A Type  - Main board of this DVR has three SATA port: it is indicated as SATA 1 and 2. E Type ...

  • Page 17: Internal Sata Storage

    2.1.2 Internal SATA Storage  C, F and J Type DVRs have 5 internal SATA Ports.  1-4 SATA Port: It is designed to mount HDD. Connect from SATA 1 port when installing HDDs.  5 SATA Port: Please mount a DVD-RW. ...

  • Page 18: Connector Wiring

    2.2 Connector Wiring 2.2.1 Video-In/Loop Out Connections A and C Type  Connect Analog camera to ‘VIDEO IN’.  If a user wishes to link a camera input to another device, use ‘LOOP OUT’. (C Type).  Assure the ‘VIDEO IN’ (top connector) and ‘LOOP OUT’ (bottom one) connections are connected properly, not opposite way. E and F Type ...

  • Page 19: Hdmi Connections

    2.2.4 HDMI connections  Connect HDMI cable to HD out port of rear panel and HDMI port of HD output device.  Please Click ( ) SETUP> DEVICE > DISPLAY > General and the following screen will display.  Click the box below to select resolution. - A user can select the resolution among ‘1920x1080 (60Hz)’, ‘1920x1080 (50Hz)’, ‘1280x720 (60Hz)’, ‘1280x720 (50Hz)’...

  • Page 20: Alarm Connections (Relay)

    2.2.9 Alarm Connections (Relay)  Connect Alarm Output (buzzer, siren, etc.) to ‘NO and/or NC’ connectors, Power to ‘COM’ connector and Ground to ‘GND’ connector. 2.2.10 RS-485/422 Connections  PTZ Camera and Keyboard controller connector.  Please use TX+, TX-, RX+ and RX- terminals accordingly. 2.2.11 RS-485 Over Coax Connections ...

  • Page 21: Connections Guideline

    2.2.16 Connections Guideline  Video out Connector: If only the monitor is connected to VIDEO OUT connector, please set the impedance switch on the rear side of the monitor to 75 ohms to prevent abnormally bright or collapsed images. If wish to connect another device (e.g., a recorder) to the back of the monitor, please set the impedance switch on the rear side of the monitor to HIGH Z (High Impedance) and set the last device to 75 ohms.

  • Page 22: Input Device And Screen Icons

    Input Device and Screen Icons 3.1 Key and LEDs A and E Type NAME BUTTON Operating mode Setup mode • Control Pan/Tilt rotation of up/down/left/right in PTZ mode •Up/Down/Left/Right on • REW/Backward/Play, Pause/Forward/FF in Playback mode screen cursor control MENU •...

  • Page 23: Camera Select Keys

    • Video search mode on SEARCH • Zoom-In on PTZ mode • Fast backward playback (changes up to x128 with each press) • Focus Near in PTZ mode • Fast forward playback (changes up to x128 with each press) • Focus Far in PTZ mode •...

  • Page 24: Front Panel

    3.3 Front Panel A and E (4CH) Type 4 / 8 Channel DVR C (16CH), F (8/16CH) and J (8/16CH) Type 8 Channels DVR 16 Channels DVR 3.4 Using a Remote Controller  Usage of a remote controller is same as the front panel keys. ...

  • Page 25: Using A Mouse

    3.5 Using a Mouse  Mouse provides an easier access to adjustment. Refer to below for proper use.  Left mouse button functions the same as Enter ( ) key on the front panel of DVR.  Right mouse button displays the channel function key such as Audio, PTZ, PIP, Color and Position on selected channel. A and C Type Function Name of Key...

  • Page 26: Screen Icon

    3.6 Screen Icon Icon Description Icon Description Continuous recording schedule Continuous + Motion recording schedule Motion recording schedule Motion + Alarm recording schedule Alarm recording schedule Cont. + Motion + Alarm recording schedule Continuous + Alarm recording schedule No Recording schedule Continuous recording mode Motion recording mode Alarm recording mode...

  • Page 27: Setup

    Setup 4.1 Login  For security purpose, users have to input the password to enter the setup menu.  Please press from Display Menu Bar to enter the setup menu and the following screen will display.  In order to use all functions and privileges, log in as ID: admin. ...

  • Page 28: System

    4.2 SYSTEM 4.2.1 Status  Entering Setup Menu following screen will display.  System Status show information of the DVR like followings - DVR name - DVR ID - MAC Address - Firmware - Date - Language - IP Address - UPnP - Video Signal - HDD Usage...
  • Page 29 Setup DVR Name  Name your DVR on your own.  Please Click ( ) keyboard icon on DVR Name box and the following virtual keyboard will display.  Please Click ( ) desired letters (characters) on the virtual keyboard to input. Use to erase one character every time.
  • Page 30 Setup  Import: Copy a DVR configuration file stored in USB memory stick to DVR. Please plug in the memory stick and then Click ( ) - Please choose ‘OK’ to confirm and choose ‘Cancel’ to cancel.  Export: Store the Menu setup of DVR to USB memory stick. Please plug in the memory stick and then Click ( ) ...
  • Page 31  Please Click ( ) Select box next to Check NTP Server in Interval to sync the time regularly by selected interval.  NTP Server: Click ( ) or address in NTP Server box and the virtual keyboard will display. Input IP address of NTP server ...
  • Page 32 Firmware  Users may upgrade DVR when it is required.  Please follow the Upgrade process below. ① Plug USB memory stick which has a proper firmware file. ② Click ( ) Then, software version stored in the USB will display on the left-hand side. ③...

  • Page 33: Event

     Then, lists of User will show as follows.  To Edit the users, select a user from the list and Click ( )  To Delete the users, select a user from the list and Click ( ) NOTE Only ‘Admin user’...
  • Page 34  System Log shows various event logs by User ID(s) like below - System Start - System Reboot - Setup Default/Import/Export - Resolution Change - Video out Change - Time Adjust Before/After - NTP Sync Success/Fail - Firmware Upgrade Success/Failure - Log Delete/Export - Setup Enter/Exit - Playback Start/Exit...

  • Page 35: Device

    4.3 DEVICE 4.3.1 Display  Please Click ( ) DEVICE>Display and the following screen will display. General  Users are able to set its video output resolution between 1024 x 768 ~ 1920 x 1080.  Video In / Out will help users to select its video input and output between NTSC, PAL and AUTO. ...
  • Page 36 Position (OSD)  Position (OSD) menu allows users to adjust the position of Channel OSD on the monitor. Use it when some letters are dropped/invisible/blocked on the monitor.  Adjust Horizontal to change margin between both ends of the monitor on horizontal side and OSD. Margin range is between 0 and 50, with a larger number representing greater margin.

  • Page 37: Spot Monitor

     Check  ‘Cam box’ that wish to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing.  To adjust the location of the cameras for each sequence, Click ( ) each Drop-down list and able to select the channel. ...

  • Page 38: Network

    4.3.2 Network  Please Click ( ) DEVICES>Network and the following screen will show.  Please Click ( ) Network Type. When you click the Drop-down list, users can select to Static (fixed IP) or DHCP (floating IP).  In Static, users must manually set the static IP address for use. - Set IP Address, Subnet Mask, Gateway DNS Server 1 &...
  • Page 39 CAUTION DUE TO THE VARIOUS LOCAL JUNK MAIL POLICIES, EMAILING MAY NOT WORK PROPERLY. SSL EMAIL SERVERS MAY ALSO NOT WORK CORRECTLY. IF SO PLEASE DEACTIVATE THE SSL FEATURE IN THE (YOUR) SERVER SETUP. NOTE THAT SOME SERVER CANNOT DEACTIVATE THIS FEATURE Port ...

  • Page 40: Alarm

    NOTE DDNS service port number 95 is NOT required to be port forwarded at all. CAUTION WHEN DEVICES (PC, Mac, SMART PHONES, etc.) ARE UNDER THE SAME ROUTHER WITH A DVR, THE USER CANNOT USE THE DDNS NAME TO CONNECT. USE THE DVR’S PRIVATE IP ADDRESS FOR THIS CASE. Party DDNS - Check ...

  • Page 41: Storage

    Alarm In  The Alarm In menu will allow users to give title and to select the type of Alarm input.  Click ( ) the keyboard icon on the right-hand side of each box on name column or name column and the virtual keyboard will display.

  • Page 42: Hdd Format

    HDD Format  This page shows information of HDDs installed in the DVR.  When users install full storage device and DVD-RW including one e-SATA storage(C, F, G H and J Type), then following procedures will be listed as below: - 1.
  • Page 43 NOTE When “Attention or Warning” is detected by S.M.A.R.T, notification (Alarm out, Email, Beep and Message) will not activate. Overwrite  Click ( ) Overwrite and the following screen will display. Overwrite Setting  Click ( ) Overwrite box and users may activate the overwrite function. (Overwriting mode is default) - This function makes restart the recording from the beginning when the HDD is full.

  • Page 44: Camera

    4.3.5 Camera  Please Click ( ) DEVICE>CAMERA and the following screen will display.  Click ( ) the each Name box and the virtual keyboard will display. Then, register names of cameras.  If a check box is checked on Use column, a video of the corresponding camera is recorded and displayed on the monitor. However, if users do not check the checkbox, “UNUSE”...

  • Page 45: Audio

    4.3.6 Audio  Please Click ( ) DEVICES>Audio and the following screen will display.  The Audio menu allows users to choose whether to record Audio, if connected  When a check box is marked  on Record column, corresponding audio and video from Linked Camera will be recorded. However, if the check box is not marked, audio will not record.
  • Page 46 -HD-SDI Type- (Maximum Recording Rate by Resolution) E and F Type 30/60hz (25/50hz) 960x480 (960x576) 1280 x 720 1920 x 1080 4 Channel DVR 30 (25) fps per Channel 8 Channel DVR 30 fps per Channel 15 fps per Channel 16 Channel DVR 30 fps per Channel 15 fps per Channel...
  • Page 47 Continuous  Please Click ( ) Continuous and the following screen will display.  The Continuous menu allows users to set occasional recording rates and resolution.  Each box on Title column shows camera title registered in DEVICES>Camera. Users cannot change camera titles here. ...
  • Page 48 Alarm  Please Click ( ) Alarm and the following screen will display.  The Alarm menu allows users to set Alarm based recording rates and resolution.  Each box on Title column shows camera title registered in DEVICES>Camera. Users cannot change camera titles here. ...
  • Page 49 Emergency  Please Click ( ) Emergency and the following screen will display.  The Emergency menu allows users to set Emergency based recording rates and resolution, when ‘Emergency button pressed.  Each box on Title column shows camera title registered in DEVICES>Camera. Users may not change camera titles here. ...

  • Page 50: Schedule

    4.4.2 Schedule  Please Click ( ) RECORD>Schedule and the following will display. Setting  The Schedule table displays one week divided by hour and date. Each cell represents one hour. Users may choose appropriate recording conditions by hour. Holidays could be defined by users separately. ...

  • Page 51: Motion

    ② Click ( ) on date needed to be registered as holiday. ③ Click ( ) ADD button and Virtual keyboard will display to input description of holiday ④ Please choose ‘OK’ to confirm the input and the date will be copied to the Holidays table. ⑤...

  • Page 52: Motion

     Select Alarm out, Preset and Notification to use when Alarm In sensor goes off.  Link Notification displays E-mail addresses registered in System>General>Account>User>Email  Please follow the setup procedures below. ① Click ( ) Drop-down list of Alarm In box and select Alarm In 1. ②...

  • Page 53: Emergency

    -Popup: When selected Camera detects Motion, it will make the popup screen on the main monitor -Message: When selected Camera detects Motion, the Motion message will pop up on the OSD  Repeat the above procedure for Cam 2~ Cam 16 ...

  • Page 54: Text-In

    4.5.3 TEXT-IN  Please Click ( ) RELAY>TEXT-IN and the following screen will display.  Select cameras for Preset, Alarm Out and Notification to use when Text In comes to DVR. (PTZ Preset is frequently used for this case).  Link Notification displays E-mail addresses registered in System>General>Account>User>Email ...
  • Page 55  Link Notification displays E-mail addresses registered in System>General>Account>User>Email  Please follow the setup procedures below. ⑨ Click ( ) Drop-down list of camera box and select Cam 1. ⑩ Select alarm outputs to be worked when video loss is occurred to cam 1. Please check  a check box of use column on Alarm Out box.

  • Page 56: Operation Instruction

    OPERATION INSTRUCTION 5.1 Viewing 5.1.1 First Image  Power on DVR and the attached cameras (if any) will display.  The screen will display date/time and icons below. Icon Description Icon Description Continuous recording schedule Continuous + Motion recording schedule Motion recording schedule Motion + Alarm recording schedule Alarm recording schedule...

  • Page 57: View Format

     On the right bottom side of the screen, disk usage will show by %.  On the left top side of each channel screen icon will show as its operation.  At the normal state, HDD Overwrite mode is on and icon shows.

  • Page 58: Pan / Tilt / Zoom Control

    5.1.5 Pan / Tilt / Zoom Control  Press PTZ key to operate a PTZ camera connected to DVR. PTZ operations are only available in the full screen format.  In Pan/Tilt/Zoom mode, the icon is displayed on the bottom of the screen. ...

  • Page 59: System Log

     Press Menu button to pop-up PTZ camera OSD setup screen and set up Tour and Pattern items. - Since these functions make use of a memory function of the camera itself, users should set them in Camera OSD. - Once users complete the setup, close the Camera OSD menu. - Users can conveniently use Tour and Pattern functions simply by Clicking Tour and Pattern buttons.

  • Page 60: Playback

    5.2 Playback 5.2.1 Search  Press key on the System Menu Bar, or Press Search button on the front of the DVR and the following Search menu will display.  There are four ways to search video; calendar, event, thumbnail and smart search. - Calendar Search: search by calendar.

  • Page 61: Calendar Search

    NOTE Time period on the time indication bar can be adjusted by mouse scroll. It can be adjusted by 1 min to 3 hour time duration blocks. NOTE If you don’t use mouse or front button while the DVR is playing recorded data, the DVR would stop playback in 10 minutes automatically. Calendar Search ...

  • Page 62: Event Search

    Event Search  This Event Search is useful when users set up event recording like Motion, Alarm In (if any), Text In (if any), and Emergency.  Please Click ( ) to do Event Search and the following Search menu will display. ...

  • Page 63: Thumbnail Search

    Thumbnail Search  This Thumbnail Search is useful when users search by snapshot of certain period. This is also called as ‘Panorama Search’.  Please Click ( ) to do Thumbnail Search and the following Search menu will display.  Follow the procedure below to search video by Thumbnail. ①...

  • Page 64: Digital Zoom In Playback

    Smart Search  This Smart Search is useful when users search by designating the certain area. If there is any movement in the area, Smart Search will show the video automatically.  Please Click ( ) to do Smart Search and the following Search menu will display. ...

  • Page 65: Menu Bar

    5.3 Menu Bar  Menu bar enables users to control all features as front button.  Move mouse cursor to Left and Right side of the screen to access Menu Bar during live monitoring. Display Menu Bar (Left Side) System Menu Bar (Right Side) Icon Description Icon...

  • Page 66: Bookmark

    5.4 Bookmark  Bookmark allows users to save certain time during both live monitoring and playback mode. And able to go back to the bookmarked time during playback.  Press in both Live and Playback mode and the following popup window will display. ...
  • Page 67 NOTE To archive in jpeg format please use snapshot in Playback mode. NOTE Please do not change the settings by DVR or CMS, while archiving. NOTE Please enter all the necessary information before Click ‘OK’. NOTE If the total archiving file size exceeds 2GB then the new archived file will be produced every 2GB. From the second file it will have Date and time stamp of the starting time after the original file name given by the user.
  • Page 68 Professional Central Monitoring Software CMS Pro Full-featured Enterprise Class Surveillance Solution User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 69: Cms Pro

    CMS Pro 6.1 CMS Pro Features 6.1.1 Introduction  The CMS Pro is a central surveillance system solution that monitors multiple sites with video, audio and event signals from DVRs over networks.  The software supports different windows of live viewer, playback player, interactive map viewer, various search panes and event signal monitoring panes.

  • Page 70: Installation

    6.2 Installation 6.2.1 Software Installation  Please follow the program installation procedures below. ① If an old version of CMS Pro program was installed, it is recommended to completely uninstall or delete the old version. ② Insert the provided CD in a PC. ③...

  • Page 71: Login

    ⑦ When the following screen appears, click “Install.” ⑧ When the following screen appears, click “Finish” to complete the installation. NOTE If the PC has a previously installed CMS Pro, the installer may ask whether to overwrite the existing DB or not. The DB contains setting values on the program.

  • Page 72: Menu

    NOTE Users may change the password in [Setup] – [Change Password] menu. For the detailed information, please refer to the ‘Chapter 6.4.7 Change Password’ page. The CMS Pro saves settings and layouts on the program of the current user when the program is closed. 6.3 Menu ...

  • Page 73: Setup

    6.4 Setup 6.4.1 Local Setup - Device  Please make sure the network setting of DVR has been done properly prior to the remote connection setting. 6.4.1.1 Remote Site Connection Setup  Click Setup – Local Setup – Device to enter the setup and a dialog will pop up as below picture. 6.4.1.2 New Device Register Device ...
  • Page 74 Camera  Choose a camera name between DVR and CMS setting or both. - Device Camera Name: Display camera name of DVR. - CMS Camera Name: Display Camera name of CMS. - Both (Device-CMS) Camera Name: Display both as [DVR name]-[CMS name]. ...

  • Page 75: Device Group Setup

    6.4.1.4 Remove Registered Site  Select a site to delete on local setup window and click “Remove”  The site will be removed on the local setup window. 6.4.2 Device Group Setup  It is possible to make a group of multi-devices for user’s convenience. - Users are able to combine multiple devices as one group of connection for easy control.

  • Page 76: Local Setup - Environment

    6.4.2.3 Remove Group Setting  Select a group to delete on Group Setting window then click “remove”  The group will be removed on the local setup window. 6.4.3 Local Setup - Environment  This enables users to adjust the default setting of CMS Pro software for user’s convenience. 6.4.3.1 System ...
  • Page 77 NOTE If users check “Show covert video” box, this setting will be applied to playback as well. NOTE All changes made above will be applied after program restarts.  Date / Time format: Users can adjust and set the mode of date / time display in accordance with the location. - Date/Time: show current time.
  • Page 78  Instant Recording Users can customize the storage path of the instant recording file by selecting HDD installed in PC. - Select Drive: Select PC’s HDD where instant recording file should be saved from the drop down menu and click “Add”. It will show Drive type, Free Space and Total Space of selected HDD.

  • Page 79: Instant Playback

     Setup Import: Copy the Menu setup stored in USB memory stick (or PC HDD) into DVR. Please plug in the memory stick and then click ( ) Import.  Setup Export: Store the Menu setup of DVR in USB memory stick (or PC HDD). Please plug in the memory stick and then click ( ) Export.

  • Page 80: Local Setup - Account

    6.4.4 Local Setup - Account  When more than 2 users need to access CMS Pro, multiple User Accounts and its authorization can be set in this menu.  This setup is only permitted to Admin account holder. 6.4.4.1 Add User Account ...

  • Page 81: Local Setup - E-Map

    6.4.4.4 Login Setting  This function protects any activities of all Manager/User accounts by asking ID and Password prior to the fulfillments.  Select the activities from the list ( ) and click “Apply” to save. 6.4.5 Local Setup – E-map ...

  • Page 82: Remote Device Setup

    ⑤ Drag “Text” icon into E-Map for additional comment. ⑥ Drag “Link” icon into E-Map to link to anther E-Map. ⑦ So as to link between E-Maps, please drag another E-map into the dragged “Link” icon. ⑧ To save setting, please click “Save” icon. ...

  • Page 83: Change Password

    6.4.6.1 System  Refer to 4.2 System for more detail. 6.4.6.2 Device  Refer to 4.3 Device for more detail. 6.4.6.3 Record  Refer to 4.4 Record for more detail. 6.4.6.4 Relay  Refer to 4.5 Relay for more detail. NOTE Some settings cannot be modified remotely.

  • Page 84: Remote Device System Log

     If uncheck “Visible” in the server list menu, then the list will not be shown.  Check “Left” or “Right” to move the list to left or right side of the screen. 6.5.2 Remote Device System Log  User can check the system log of the device in this menu. ...

  • Page 85: Cms System Log

     Double click the detected “Alarm In” or “Motion” event in the remote device event log to check the video of the event.  Click the “Refresh” button to refresh the data.  Click the right mouse button on the registered device to on/off Event Log in the Server List. ...
  • Page 86  HDD Status HDD is not connected and cannot be added. HDD is connected. HDD is not connected currently but can be added. An error occurred in HDD.  Camera Status Camera is in covert mode. Camera is connected. Camera is not connected currently but can be added. Camera is not connected and cannot be added.

  • Page 87: Show All Windows

    6.5.6 Show All Windows  This function will make visible all the invisible window panes. 6.6 Application 6.6.1 Search  There are five different types of search menu; Timebar, Event, POS/ATM, Thumbnail and Smart Search  The detailed information and directions is described in chapter 6.8. 6.6.2 Exit ...

  • Page 88: Live (Live Video Monitoring System)

    6.7 Live (Live Video Monitoring System) 6.7.1 Overview  This program is to display live video from multiple channels in customized screen format.  The program is based on user friendly interface. Users may configure the entire program and open or close the panes and screens in the program.
  • Page 89 6.7.2.3 Instant Playback  Instant playback is available in both Live1 and Live2 pane, but screen capture is available in either live1 or live2.  After right mouse click, move the mouse cursor to “Instant Playback”. Then, play and setup menu will display. - Play: The recorded video of the pre-setup time will be displayed in the playback viewer.
  • Page 90 Zoom in / out function Zoom In Zoom Out Zoom Area: The Screen will revert to x4 digital zoom screen. Zoom Area NOTE Digital Zoom function can be only used when the display is on 1Ch mode. The digital zoom function is able to zoom approximately x32. 6.7.2.5 PTZ Control ...
  • Page 91  Zoom Zoom in Zoom out  Focus Near Focus Far Focus  Iris Iris Open Iris Close  Preset Save Preset Go to Preset - Drop down menu: Select a preset number which is set in the camera. - Preset Name: Save the selected preset name. 6.7.2.6 Screen Capture &...

  • Page 92: Instant Recording

     Click “Hide Captured Image” to hide the captured images. 6.7.2.7 Audio On/Off  Right click and select Audio On/Off to turn on/off audio from the channel.  Audio On/Off function is applied to only one channel out of all connected channels. 6.7.2.8 MIC On/Off ...
  • Page 93  If users click ‘OK’, it will start recording of that specific channel.  When users want to view the archived file, please choose “Open Folder”  It will open the saved directory of the file.  When users double click the created file, password window will pop –up. ...

  • Page 94: Screen Layout Control

    6.7.2.10 Display Option  Users can set up the display of camera name and time in “Display Option”.  After right mouse click, check the “Show Camera Name” to display the camera name or uncheck the menu to hide it. ...

  • Page 95: Audio Volume Control

    6.7.6 Audio Volume Control  Users can control the audio volume using the bar controller at the bottom of the screen. 6.8 Search 6.8.1 Overview  5 ways of Search are available. (Time Bar Search, Event Search, POS/ATM (keyword) Search, Thumbnail Search, and Smart Search).
  • Page 96  Users can change the speed of rewind and fast forward from x1 to Extreme. The actual speed may be limited by DVR’s network uploading bandwidth.  Users can use Right click to access Audio On/Off, Digital Zoom and Capture and Print Screen. - Audio On/Off: Users can enable audio function.

  • Page 97: Event Search

     Select a start time, end time, file name, the location of the file, password and the cameras to store.  Click “Start EXE Backup” to start archiving. NOTE Archiving function can be initiated only in time bar search. 6.8.3 Event Search ...

  • Page 98: Thumbnail Search

     Display Position – Users are able to select the text display option of the playback. - Text Window: Only text will be displayed in the top right side of the search window during the playback. - Overlay: The text will be overlaid on the playback video. - Both: The text will be overlaid on the video and the text window as well.

  • Page 99: E-Map

    6.9 E-Map 6.9.1 Overview  The ‘Map Viewer’ program is to display event signals over map images so that users may acknowledge event status more easily.  Users may recognize event occurrence with visual notifications on icons over the map image and audible notifications on speaker system of a PC.

  • Page 100: Uninstalling Cms Pro

    6.10 Uninstalling CMS Pro  Please click the “Uninstall” file in the CMS Pro folder in the PC.  Click the uninstall file and the following message box will pop up.  Click “OK” to remove the program and its components. ...
  • Page 101 iCMS iCMS User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 102: Icms Viewer

    iCMS VIEWER 7.1 System Recommendations Recommended Core 2 Duo 2.26GHz or higher Main Memory 2GB or higher Video Memory 512MB or higher Display Resolution 1024ⅹ768 (with 32bit color) or higher 30GB or higher HDD Storage Space Network 100~1000 Mbps Fast Ethernet Operating System Mac OS 10.6.0 or higher NOTE...

  • Page 103: Login

     In the virtual driver, users will find iCMS icon. Please move the iCMS icon to ‘Application’ folder (‘Application’ folder is located in the ‘Go’ Menu below). 7.3 Login  After installation of the software, iCMS icon appears in ‘Application’ folder. ...

  • Page 104: Local Setting

    7.4.2 Local Setting  Please Click ‘Setup’ button on the top of the Toolbar and the following screen will display.  There are three types of setup such as Device Manager, Display Setup and Password Change. 7.4.2.1 Display Manager  Please Click ‘Device manager’ and the following screen will display. ...
  • Page 105  If users want to scan the devices instead of typing the information manually, please Click ‘Scan device’. It will automatically detect DVR units currently connected to local networks.  Click “Scan Device”, then following ‘Dialog’ will pop up.  Including IP address, the information of connected DVRs in the network will be listed. ...
  • Page 106 NOTE This option will be applied after program restarts.  Date / Time format: Users can adjust and set the mode of date / time display in accordance with the location. - Date Format: select the date format among YYYY-MM-DD/MM-DD-YYYY/DD-MM-YYYY. - Time Format: select the time format between 24Hours/ 12 Hours AM/PM.

  • Page 107: Live View

    7.5 Live View 7.5.1 Connection  Please choose one of the registered sites in Server list on the right hand side of the ‘Live Display’ screen and the right Click on the mouse button will pop up the menu with ‘Connect’. ...

  • Page 108: Health Check

    NOTE The selected channel is outlined in blue 7.5.3 Health Check  Please choose one of the registered sites in Server list and the right Click on the mouse button will pop up the menu with ‘Health Check’.  Please choose ‘Health check’ function when users want to check the status of the DVRs. ...

  • Page 109: System Log

    - Zoom In/Out, Focus Near/Far, Iris Close/Open Zoom Out/ In Focus Near / Far Iris Close / Open - Preset Control button  Please choose the number from the drop down list from 1 to 256.  After selecting the number, please type the description on the empty space below the drop down list and Click “Save”. ...

  • Page 110: Event Search

     Please choose one of the devices to playback from the Server List and right Click on the mouse to have popup menu with Connect.  Select Date - In calendar, dates with recorded data are marked in red.  Select the date among the dates marked in red. ...

  • Page 111: Pos/Atm

     Please Click ‘Connect’ to start the event search  Event search has Event Type, Select Camera and Date/Time setting. ① Event Type: it has Emergency, Alarm and Motion. Please choose one event that users want to use. ② Select Camera: Please select the camera that users want to view from Cam1 to Cam 16 for the event (Only 1 camera can be selected).

  • Page 112: Disconnection

     The following screen shows the result of the POS/ATM search.  Double Click on the event to playback of the data. 7.7 Disconnection  When disconnect, please right Click on the connected site and choose ‘Disconnect’  if users Click ‘Disconnect’, the message box below will display...

  • Page 113: Uninstall

    7.8 Uninstall  Please go into the ‘Application’ folder and right Click on the iCMS icon.  Please choose ‘Move to Trash’ to uninstall the iCMS program...
  • Page 114 CMS Web Client Pro CMS Web Client Pro User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 115: Cms Web Client Pro

    CMS WEB CLIENT Pro 8.1 System Requirements  Web Client Pro may not run properly if the PC does not meet minimum requirements. Other programs should not run on the same PC where this is running. Otherwise, Web Client Pro software may not perform as designed. Minimum (Enable Dual Streaming) Recommended (Disable Dual Streaming) Intel Core i5...

  • Page 116: Live Display

    8.3 Live Display  After Login, following screen will display. ⑤ ④ ② ③  The screen contains following features: ① Display current live video ② Setting display mode - Search: Opening search mode in new window. - PTZ: Open PTZ control panel. - Capture: Capturing the image of selected channel.

  • Page 117: Search Screen

    8.4 Search Screen  Click then following screen will display on a new window. ② ③ ④ ⑦ ⑧ ⑥ ⑤  The screen contains following features: ① Searched playback video displays. ② Setting Date/Time to search. - Click a date in calendar, and then recorded data will be showed up in Time bar. - Start Time: Setting starts time.

  • Page 118: Ptz Control

    8.5 PTZ Control  Click then following screen will display on a new window. ② ③ ④ ⑤ ⑥  The screen contains following features: Pan/Tilt Direction button. Zoom In / Zoom Out control button. Focus Near / Focus Far control button. Iris control button Preset control button Camera select button.

  • Page 119: Capture

    8.6 Capture  Click then following screen will display on a new window. ③ ④ ② ⑤ ⑥  The screen contains following features: Captured Image is displayed. Color Control - Users can change Brightness, Contrast and Saturation of the captured image. Save as Image - Users can save the edited image in new name.

  • Page 120: Cms Mobile Viewer

    CMS Mobile Viewer CMS Mobile Viewer User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 121: Cms Mobile Viewer

    CMS MOBILE VIEWER 9.1 iPhone / iPad (mViewer Pro) 9.1.1 System Requirements  There are no other requirements to run this program because it is specialized to perform on iOS interface. 9.1.2 Installation  Turn on the iPhone or iPad then connect to App Store. ...

  • Page 122: Site Registration

     If users do not have the account, then Tap “ ” and it is registered by free. 9.1.3 Site Registration  Tap “ ” icon on iPhone or iPad then below will show.  Tap “ ” then below will show and tap “ ”...

  • Page 123: Connection

     To edit the saved site, tap “ ” next to site Name, then change the value, and tap “ ”.  To delete the saved site, slide the finger from right to left across Device Name. Then tap” ” to remove the site. NOTE Please tap ‘On’...

  • Page 124: Live View (Portrait View)

    9.1.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. (1 → 2 → 3 …… 14 → 15 → 16) - Slide finger from Left to Right to descend. (16 → 15 → 14 …… 3 → 2 → 1) ...

  • Page 125: Live View (Landscape View)

    9.1.6 Live View (Landscape View)  To select other channels, - Slide finger from Right to Left to ascend. (1 → 2 → 3 …… 14 → 15 → 16) - Slide finger from Left to Right to descend. (16 → 15 → 14 …… 3 → 2 → 1) ...

  • Page 126: Search

    9.1.8 Search  Users are able to search the recorded data with iPhone or iPad  Tap “ ” on Main menu or “ ” on Live monitoring to use search function.  Choose date that wish to search from Calendar ...

  • Page 127: Snapshot Gallery

    9.1.9 Snapshot gallery  Users are able to save the snapshot taken with mViewer pro while live monitoring and Playback.  Tap “Snapshot gallery” from main menu and select the device.  To see other pictures slide finger across the screen. ...

  • Page 128: Android Phone (Mviewer Pro)

    9.2 Android Phone (mViewer Pro) 9.2.1 System Requirements  This program is designed and applied only for Android OS (version 2.3 or higher) based mobile device.  Display: Min. 3.7 inch screen NOTE mViewer Pro might not work even though Android OS version is high enough. It is due to the hardware specification of Android device. 9.2.2 Installation ...

  • Page 129: Site Registration

    9.2.3 Site Registration  Tap “ ” icon on application menu then below will show.  Tap “ ” on the main menu and tap “ ” on top right corner.  Enter Device Name, IP/Host address.  Enter Cmd/Stream port value. (Default, 5920/5921) ...

  • Page 130: Connection

    9.2.4 Connection  Tap on Device Name to connect the DVR to mobile device. 9.2.5 Live View (Portrait View)  To select other channels, - Slide finger from Right to Left to ascend. (1 → 2 → 3 …… 14 → 15 → 16) - Slide finger from Left to Right to descend.

  • Page 131: Live View (Landscape View)

     Tap on “ ” or “ ”to choose split mode between 1, 4, 9 and 16. - In Multi-channel display mode, users can double tap on certain channel to change to 1CH display mode.  Tap “ ” to take Snapshot. - Enter file name and press “...

  • Page 132: Ptz Control

     Tap on “ ” to choose split mode between 1, 4, 9 and 16. - In Multi-channel display mode, users can double tap on certain channel to change to 1CH display mode.  Tap “ ” or “ ” to select video steam. - Select “Low”...

  • Page 133: Alarm Out Control

    9.2.8 Alarm Out Control  Users are able to manually send Alarm out command with the mobile device.  Tap “ ” to enable the Alarm Out control and it will display on lower left corner of Live screen.  Tap the numbers to send out Alarm from the connected DVR to its output source. 9.2.9 Search ...

  • Page 134: Snapshot Gallery

     Tap “ ” or “ ” or “ “to choose split mode between 1, 4, 9 and 16. - In Multi-channel display mode, user can double tap on certain channel to change to 1CH display mode.  Tap “ ”...

  • Page 135: Setting

    9.2.11 Setting  Tap “ ” to check the information of the application.  Users can read the manual.  Users are able to set Password Lock. - Tap “Password Lock” from the setting menu. - Enter password. (Default password is 1111) - Tap “...

  • Page 136: Keyboard Controller

    Keyboard Controller Keyboard Controller User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 137: Connection

    KEYBOARD CONTROLLER 10.1 Connection  Users may connect cameras and Keyboard to a DVR.  Please see below for connection examples. RS485 ports are used for connections. 10.1.1 Configuration Diagram  Example  Please make sure to connect “Tx to Rx“ or “Rx to Tx” with same polarity. (+ to +) and (- to -). 10.1.2 USB Connection ...

  • Page 138: Keyboard Configuration

    10.3 Keyboard Configuration DVR Mode KEYS SPD mode DVR control Mode PTZ Mode ① EXIT Key DVR Mode select Key ② SPD Mode select Key Setup Key Number Pad Key ③ Clear Key ENTER Key Display Key Preset Key (PRESET) ④...
  • Page 139 System Log Key Emergency recording Search Key Activate Tour Key (TOUR) Archive Key Activate Pattern Key (PATTERN) Spot control Key Hold Key (HOLD) Pause on Live Key DVR Menu Key REW Key Backward Key ⑤ Play/Pause Key Forward Key FF Key PTZ Mode Key Camera Menu Key (MENU)

  • Page 140: Setup

    10.4 Setup 10.4.1 DVR Control Mode  Press in DVR Mode to enter Main Setup and enter password. (Default password is 0000) Keyboard Detail Option Firmware version DATE Date setting YY/MM/DD TITLE SET Camera title CONTROL ID ID No. Change DVR SPD Set Baud rate 2.4Kbps~57.6Kbps...

  • Page 141: Operation

    10.5 Operation 10.5.1 DVR/SPD Mode Conversion  Press “System ID” + “ ” to enter DVR control Mode.  Press “Speed Dome Camera ID” + “ ” to enter PTZ camera control Mode. Example If users wish to connect to SYSTEM ID 3 DVR then press Numpad “ “+ “...

  • Page 142: Ptz Mode

    : Playback control in DVR Search Mode. : View a channel in full screen (by selecting a number with ENTER button). NOTE For detailed information on PTZ Mode, please refer to 4.3.5 Camera. 10.5.2.3 PTZ Mode  In order to enter PTZ mode, press “Camera ID” + “ “.
  • Page 143  Then, users should be able to operate the Speed Dome camera directly with CP1300. NOTE Please check Protocol and Baud rate before operating the Speed Dome Camera using CP1300. 10.5.3.2 Buttons  (PRESET): Press number Key and PRESET then the camera will move to designated point. ...
  • Page 144 TEXT-IN (POS) TEXT-IN (POS) User`s Manual This document contains preliminary information and is subject to change without notice.

  • Page 145: Text-In (Pos)

    TEXT-IN (POS) 11.1 Usage of Serial-In Function  Enables users may use Serial In connections to record/search/display text data from POS/Cash Register’s serial.  Users can choose the data whether to record/display or both. 11.2 Connection Method  Up to four ATM/POS channels are available could be connected. ...
  • Page 146 NOTE After cables connected and Serial In (DVR menu) values changed, please restart the DVR so that the DVR recognizes attached Serial In connections. Use RS232 null modem cable between POS/Cash Register and USB to RS232 converter. RS232 cross-over connector is useful when users need to switch the Rx/Tx connections.

  • Page 147: Relay

    11.4 Relay 11.4.1 Relay Setup (Optional)  Click “Setup>Relay>TEXT-In” and the following screen will display.  Select cameras for Preset, Alarm Out and Notification while the Text In is operation, if necessary.  Link Notification displays E-mail addresses registered in System>General>Account>User>Email ...

  • Page 148: Schedule Setup (Mandatory)

    11.4.2 Schedule Setup (Mandatory)  Click “Setup>Record>Schedule” then shows as below.  Check the box (□) item related to Alarm. ‘Continuous + Alarm’ is recommended  Click the Time/Date that wishes to activate TEXT-IN function on schedule.  Do the same for additional Text In channel. 11.5 Setup (Mandatory) ...

  • Page 149: Link Cam

    11.5.2 Link Cam  Click and following screen will display.  Link the POS1, 2, 3, 4 to any channel and it is possible to select more than one channel per POS device. 11.5.3 Device Setting  Check the box (□) next to ’Use’ to activate the setting for POS device. Setup ...

  • Page 150: Example

    Discard Pattern  Discard Pattern: Does not show the specified data on OSD screen. Sets up in order to designate dummy data or characters which is not to be displayed. Can be designated up to 33 of discard patterns in total. ...
  • Page 151  Input the pattern of dummy data to Discard Pattern like ‘[3D’ on the picture.  Choose the data which willing to display and enter the Start Pattern and End Pattern.  Check or uncheck the ‘Auto’ box to see the differences. Depending on models of POS/Cash Register machines, it may give a better result or not.

  • Page 152: Search

    11.6 Search  TEXT-IN can be searched by keyword in Playback mode.  Click ( ) in the Playback mode, then Users will see the following screen.  Please Click ( ) to do Event Search and choose ‘POS/ATM Search’ then virtual keypad is display. Type a keyword to search by.
  • Page 153 HD-SDI Video Signal Accessory HD-SDI Video Signal Accessories User`s Manual This document contains preliminary information and is subject to change without notice.
  • Page 154 The List of Configuration (HD-SDI to HDMI Converter) (1 In / 1 Out Repeater) (FO to HD-SDI Converter) (HD-SDI to FO Converter) Power Adapter and Cable...

  • Page 155: Hd-Sdi Video Signal Accessories

    HD-SDI Video Signal Accessories HD signal converter 12.1.1 12.1.2 Introduction  HSC 1200 is an HD signal converter which converts video signal from HD-SDI to HDMI. 12.1.3 Features  Convert HD-SDI to HDMI  Equalized HDMI input supports long HDMI cables up to 30m, 24 gauge ...

  • Page 156: Connector Wiring

    12.1.8 Connector Wiring 12.1.8.1 HD-SDI In/Out and HDMI In/Out Connections  Connect an ‘HD-SDI OUT’ of HD-SDI device to ‘HD-SDI IN’ using by 75ohm coaxial cable.  Connect an ‘HDMI OUT’ to ‘HDMI IN’ of device with HDMI output using by HDMI cable. 12.1.8.2 Power Supply Connections ...

  • Page 157: Hd Sdi Repeater

    12.2 HD SDI repeater 12.2.1 Introduction  HSR 1110 is an HD SDI repeater to extend the signal transmission distance between HD-SDI devices. The transmission distance is easily extended up to 150m and if it requires extending longer than 150m, it may connect another repeater to extend the signal transmission and it will be extended up to another 150m.

  • Page 158: Connector Wiring

    12.2.7 Connector Wiring 12.2.7.1 1 In/ 1 out HD-SDI Connections  Connect an HD-SDI device (e.g. Camera) to ‘HD-SDI IN’ of HD-SDI repeater.  Connect an HD-SDI device (e.g. DVR) to ‘HD-SDI OUT’ of HD-SDI repeater. 12.2.7.2 Power Supply Connections ...

  • Page 159: Technical Specification

    12.3.3 Technical Specification Model Transmitter Receiver Format 3 Gb, 1.5Gb, 270Mb Auto Detect Video Inputs 1 LC Fiber Optic Connector 1 HD-SDI Input(SMPTE 292M) 1080p 24/25/30 Input Format 1080i 50/60 720p 24/25/30/50/60 Video Outputs 1HD-SDI Output(SMPTE 292M) 1 LC Fiber Optic Connector 1080p 24/25/30 Output Format 1080i 50/60...

  • Page 160: Connector Wiring

    12.3.7 Connector Wiring 12.3.7.1 HD-SDI in Connections  Connect HD-SDI Camera to ‘HD-SDI IN’ of HFO1200 using 75 ohm coaxial cable 12.3.7.2 Fiber Optic Out Connections  Connect the “LC Fiber Optic out” of HFO1200 which can be connected to opposite site of Fiber optic converter (HFO 1100) by using the fiber optic cable.
  • Page 161 Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.

This manual is also suitable for:

Hd-sdiHd-hybrid

Table of Contents
