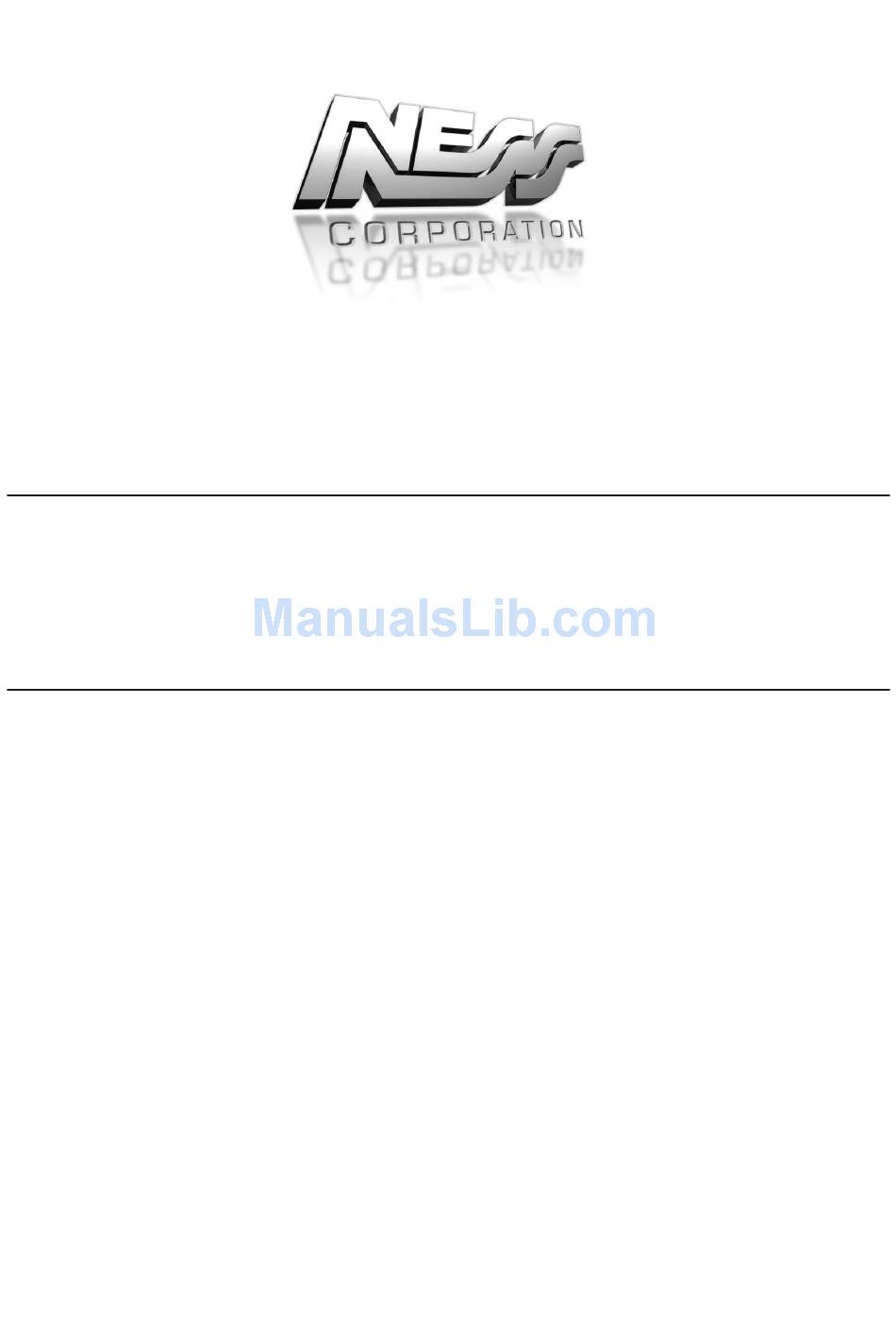

- Page 1 Ness H.264 HD-SDI DVR User’s Manual REV1.1 Nov11...
- Page 2 All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
- Page 3 DVR User’s Manual Caution and Preventive Tips • Switch the 115/230V selector to your local voltage standard • Handle with care, do not drop the unit • Mount the unit in an equipment rack or place it on a solid, stable surface. •...
-
Page 4: Important Information
DVR User’s Manual Important Information Before proceeding, please read and observe all instructions and warnings in this manual. Retain this manual with the original bill of sale for future reference and, if necessary, warranty service. When unpacking your unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. -
Page 5: Table Of Contents
DVR User’s Manual Table of Contents 1. Overview ........................7 2. System Setup........................8 2.1 Position the Unit .....................8 2.2 Select Video Format ....................8 2.3 Connect Devices to the Unit ...................8 2.4 Rear Panel Connectors ..................9 3. General System Setup ....................11 3.1 Front Panel Introduction .................. - Page 6 DVR User’s Manual 4.1.4 View Recorded Video ................30 4.1.5 Taking Snapshots ..................31 4.2 Sequence Setup....................31 4.3 Search Recorded Video ..................32 4.3.1 Search by Time..................32 4.3.2 Calendar Search..................33 4.3.3 Search by Event ..................34 4.3.4 Search by Text ...................35 4.4 Video Export......................36 4.4.1 Export from OSD Setup Menu ..............36 4.4.1.1 Select the External Device ............36 4.4.1.2 Select Video for Exporting ............37...
- Page 7 DVR User’s Manual 5.3.1.2 Operate Cameras with Dome Control ..........52 5.3.1.3 Digital Zoom of Camera Display...........53 5.3.1.4 Manually Trigger Relay Output Devices ........53 5.3.2 Instant Recording..................54 5.3.2.1 Record Video Instantly ..............54 5.3.2.2 Playback Instant Recorded Video ..........54 5.3.3 Playback Video ..................54 5.3.3.1 Playback Remote Video ...............55 5.3.3.2 Playback Local *.drv Files ............56 5.3.3.3 Playback Controls ................56...
-
Page 8: Overview
Web-browser plug-in allowing users to view live or recorded video images, and enables remote configuration. The remote software is stored in the H.264 HD-SDI DVR and deployed over a LAN, WAN or Internet connection to remote Windows-based computers. This simplifies the installation and maintenance of the software components so all remote users are using the same software coming from the unit. -
Page 9: System Setup
DVR User’s Manual System Setup The notices and introduction on system installation will be described particularly in this chapter. Please follow the description to operate the unit. In order to prevent the unit from data loss and system damage that caused by a sudden power fluctuation, use of an Uninterruptible Power Supply (UPS) is highly recommended. -
Page 10: Rear Panel Connectors
DVR User’s Manual Connecting Short-term Device If any short-term devices shall be installed to the DVR as parts of the unit ® system, such as USB ThumbDrive or any USB devices, etc., make sure those devices are connected only after the unit is powered on. The reason is because the DVR can recognize the external devices only after the power-on process is done completely. - Page 11 DVR User’s Manual NAS (Reserved) The NAS connector allows users to connect a Network Attached Storage (NAS) device to expend HDD capacity of the DVR. LAN 10/100/1000M (RJ-45) The DVR is capable of networking and it allows the videos to be viewed over the LAN network or the Internet by using the Internet Explorer.
-
Page 12: General System Setup
DVR User’s Manual General System Setup Before operating the DVR, some general configuration should be setup first. The following subsections will introduce function keys on the front panel and general configuration of the DVR. The regular displayed OSD information and its displayed positions are shown as following figure. -
Page 13: Function Keys
DVR User’s Manual 3.1.2 Function Keys This section describes the function keys, which are for normal operation, on the front panel of the DVR. Please refer to the Setup Guide for the graphical illustration of function keys. POWER Key • After power cord is correctly connected, press this key to switch power on. •... - Page 14 DVR User’s Manual MODE Press repeatedly to select desired main monitor display format. According to the monitor displaying type, there are several available viewing modes: full-screen and 4-window. Refer to section Viewing Modes for detailed information. PLAY Press this key to switch between live image and playback video. NOTE: The video of latest 5 ~ 10 minutes cannot be played back because the video is still saved in the buffer.
-
Page 15: Enter Osd Setup Menu
DVR User’s Manual JOG / SHUTTLE (for specified models) The jog/shuttle knob, shown as the figure on the right, is a combination of a shuttle ring with an embedded jog disk. It provides wide latitude in playback control. Note that the jog/shuttle knob is active only when the DVR is in Playback mode. -
Page 16: User Management
DVR User’s Manual 3.2.1 User Management The DVR provides the option to create up to seven sets of usernames and passwords with customized authority, excluding the preset “admin” account. From the Main Menu, select <System> <User Management> and the menu is as the following. User Management Password Protection Account Setup... -
Page 17: Power On / Shutdown The Unit
Auto Rebooting The H.264 HD-SDI DVR series unit can be set to reboot automatically once a day/week at predetermined time in order to keep the DVR system more stable. Select <Off> to disable the auto rebooting function. -
Page 18: Hdd Auto Scan
DVR User’s Manual Rebooting Time If the auto rebooting function is enabled, select a desired time to perform the auto rebooting function. 3.3.1 HDD Auto Scan When the DVR found file system error while recording, the DVR will reboot and HDD auto scan will be initiated. If by any chance auto scan failed, the HDD will need to be formatted. -
Page 19: System Date / Time Setting
DVR User’s Manual System Date / Time Setting Users can set the current date, time and other OSD parameters in Date/Time menu (under System setup menu). The login account should have authority to access the System setup menu. In OSD setup menu, select <System> and press ENTER, then select <Date/Time>... -
Page 20: Daylight Saving Time
DVR User’s Manual Date Display Mode This function allows user to set the OSD display type of the date. There are three options to select from: <Y/M/D>, <M/D/Y> or <D/M/Y>. “Y” represents “Year”, “M” represents “Month” and “D” represents “Day”. Move to the item and press ENTER, the option starts blinking. -
Page 21: Network Time Protocol Setup
DVR User’s Manual 3.4.3 Network Time Protocol Setup Time Zone Select <Time Zone> to enter the time zone. To find out the correct local time zone, please visit www.greenwichmeantime.com or refer to the following figure. NOTE: The <Time Zone> must be set to the correct local time zone or the <Network Time Protocol Setup>... -
Page 22: Record Schedule / Quality Setting
DVR User’s Manual Record Schedule / Quality Setting The Record setup menu allows users to set recording quality, recording schedules, and other recording parameters. Login with a proper account to access Record setup menu. In the Main menu, move the cursor to <Record> and press ENTER;... -
Page 23: Preset Record Configuration
DVR User’s Manual 3.5.2 Preset Record Configuration The <Preset Config> is used to select the preset recording quality and frame rate. In normal circumst ances, it is strongly recommended to set the preset configuration as <Best Quality>. Below table shows the PPS and picture size under <Best Quality>... -
Page 24: Pre-Alarm Recording
DVR User’s Manual Data Lifetime Mode This item allows the user to choose preferred data lifetime mode. There are three types of data lifetime mode: General, By Day, and By Channel. When a specific mode is selected, further settings of the other two items below will be grayed out and cannot be accessed. -
Page 25: Circular Recording
DVR User’s Manual 3.5.6 Circular Recording Users can choose to record video in circular mode or in linear mode. If circular mode is selected, the DVR stores new video into the HDD spaces while overwriting the oldest recorded video. Alternatively, if linear mode is selected, the DVR will stop recording when the HDD is full. -
Page 26: Pos Setup
DVR User’s Manual Purge Event Before The item is used to delete event video before a specific date. Use LEFT / RIGHT keys to move the cursor to next or previous field, ENTER to select the item and UP / DOWN to adjust the value. Start To Purge After the video or data to be deleted are selected, set this item to <Yes>... -
Page 27: Exception Pos Setup
DVR User’s Manual 3.6.3 Exception POS Setup This sub-menu is used to define the conditions that are to be treated as an “Exception” and thus trigger an action (the function will be implemented later). Exception POS Setup Exception No. Trigger Exception String NO SALE By Numerals... -
Page 28: Input Setup
DVR User’s Manual <Inside The Range>: When the value of a transaction is within a certain range, it will be marked as an exception. The range need to be defined in the following sub-setting <Value> and <Value (Upper Limit)>. <Outside the Range>: When the value of a transaction is beyond a certain range, it will be marked as an exception. - Page 29 DVR User’s Manual Text Filter This item is used to choose the text filter. The supported models for pole display and printer are listed as below. Pole Display Printer POS Machine Cache Technology VFD-202T Citizen CBM-1000 II Acula AQ-812 Citizen C2202 Citizen CT-S300 IBM SurePOS 700 Digipos CD5220...
-
Page 30: Basic Operation
DVR User’s Manual Basic Operation The DVR allows users to access some general operations through the front panel easily. The following sections introduce the general operations. View Live / Playback Video The general functions in Live and Playback mode are described in the following sections. -
Page 31: View Live Cameras
DVR User’s Manual 4.1.3 View Live Cameras Users are allowed to view live camera in versatile viewing modes. The general operation under live mode is described as follows. Freeze Live Image Press FREEZE while viewing live image, the image pauses but the date / time information does not, and the system clock continues running. -
Page 32: Taking Snapshots
DVR User’s Manual FREEZE Press FREEZE to pause the playback video. When the recorded video is paused, press LEFT / RIGHT to move playback video single step reverse / forward respectively. Press FREEZE again to resume playback video. PLAY Press it to start playing back video or stop playing back video and return to live mode. -
Page 33: Search Recorded Video
DVR User’s Manual Search Recorded Video The DVR is capable of searching and playing back recorded video by date / time, events, or text. To search by time, select a specific date and time of the wanted video or enter Calendar Search. To search by event, select channels to display the event list. -
Page 34: Calendar Search
DVR User’s Manual NOTE: The date/time information will be shown on the screen with a DST icon if the Daylight Saving Time function is enabled. “S” indicates summer time and “W” indicates winter time. 4.3.2 Calendar Search Follow the steps below to search recorded video via Calendar Search. •... -
Page 35: Search By Event
DVR User’s Manual 4.3.3 Search by Event “Event List” allows users to search wanted video by event. The Event List is displayed as below: Event List Date Time Type 2010/12/07 AM 11:26:50 Motion 2010/12/07 AM 11:53:03 Alarm 2010/12/17 PM 12:14:42 Alarm 2010/12/07 PM 12:45:31 Motion... -
Page 36: Search By Text
DVR User’s Manual 4.3.4 Search by Text When a POS device is connected to the DVR, users can search for videos with text data. The “Text Query Page” is displayed as below: Text Query Page By Text Item Item By Numerals Value Value (Upper Limit) By Date/Time... -
Page 37: Video Export
DVR User’s Manual Video Export The following sections will show how to export video through the OSD setup menu and through the hot keys on the front panel, respectively. Note that the system log will keep records of all video exportations, including duration, start time, and end time. -
Page 38: Select Video For Exporting
DVR User’s Manual The DVR only supports EXT3 file system. If an external HDD will be connected to the unit, ensure the format of the HDD is EXT3. Device Name The item shows the name of the available device. Available The item shows the free space of the available device. -
Page 39: Digital Signature
DVR User’s Manual The DRV and original files can only be played back with the remote monitoring software and DVRPlayer, and multiple cameras video can be played back from one file. The AVI files can be played back with Windows Media Player. -
Page 40: Ezburn Introduction
DVR User’s Manual 4.4.2.1 ezBurn Introduction Built with the ezBurn technology, ezBurn function provides users the easier way to export desired video with built-in DVD+RW or to an external device, ® such as an USB ThumbDrive TWO keys (SEARCH and COPY) and THREE touches are all what’s needed for completing the export. -
Page 41: Export Event Video
DVR User’s Manual • If there is no exportable device connected to the DVR, then a warning message will be shown on the screen, as below figure: No exportable device detected. Please install the target device/media to the DVR. Enter: Retry ESC: Exit Retry 4.4.2.3... -
Page 42: Dome Protocol Setup
DVR User’s Manual 4.5.2 Dome Protocol Setup The Dome Protocol lists the supported dome protocols for communicating with dome cameras connected to the DVR. From the Main menu, select <Camera> and press ENTER. To configure dome protocol, select a camera first and set the communication protocol associated with dome camera using the Direction keys and ENTER. -
Page 43: Dome Controlling Key
DVR User’s Manual NOTE: The settings become effective after saving the changes and exiting from the menu. 4.5.4 Dome Controlling Key After pressing DOME to enter Dome Control mode, a dome control panel will be displayed. The controlling buttons are: Iris Close/Open, Focus Far/Near, Zoom Out/In, Preset, Live, Pan/Tilt Speed, Direction buttons, and Auto Focus. -
Page 44: Functional Keys
DVR User’s Manual Direction Buttons Click on the buttons to pan and tilt the lens of selected dome camera. Auto Focus Click on this button to automatically adjust focus of the dome camera. The front panel keys can also perform the functions listed above. Please refer to Setup Guide for the graphical illustration of functional keys. -
Page 45: Run Dome Camera Tour
DVR User’s Manual • Input a desired preset number. • Click on the <Go Preset> button to call the preset point. Then the selected dome camera will rotate to the preset position automatically. 4.5.7 Run Dome Camera Tour Users can also display dome camera tour setup at the dome camera side. Follow the steps to run display of dome camera tour. -
Page 46: Upnp Nat Traversal Function
DVR User’s Manual Install the UPnP interface components in a PC: • Click <Start> <Control Panel> <Add or Remove Programs>. • Then click <Add/Remove Windows Components> on the left. • In Windows Components Wizard, double click on <Networking Services>, then check the box in front of <Universal Plug and Play>. •... -
Page 47: Remote Monitoring Software
DVR User’s Manual Remote Monitoring Software The remote monitoring software is a remote browser-based software application designed to operate with the DVR products. Using the software, users are allowed to view live and recorded video, and to configure the DVRs remotely via a LAN, WAN or Internet on a personal computer. -
Page 48: Software Installation
DVR User’s Manual Software Installation Refer to the following description to install the remote monitoring software. 5.2.1 Change Internet Settings The PC operating with the remote monitoring software should be set to accept ActiveX plug-ins. Please follow the steps to set the Internet security settings appropriately. - Page 49 DVR User’s Manual • Uncheck “Require server verification (https:) for all sites in this zone”. Type the IP address of the unit in field and click <Add> to add this web site to the zone. • Click <OK> to confirm the setting and close Trusted sites dialog. •...
-
Page 50: Install Remote Monitoring Software
DVR User’s Manual 5.2.2 Install Remote Monitoring Software Start the browser to initiate the installation of the remote monitoring software on the PC. The IP address of the DVR can be saved as a Favorites item in the web browser to enable easy access in the future. •... -
Page 51: Log In / Log Off
DVR User’s Manual 5.2.2.1 Log in / Log off Login using the same accounts setup in the DVR. The authority level is also the same as setup in the DVR. One preset account “admin” and up to four other accounts can access a DVR at the same time. -
Page 52: Software Upgrades
DVR User’s Manual 5.2.2.2 Software Upgrades If a new version of the remote monitoring software is available on the DVR, upgrade will be prompted while accessing the unit. Follow the steps to upgrade the software. • The message as the above figure will be prompted. Click <Yes> to accept version upgrade. -
Page 53: Select Display Mode
DVR User’s Manual 5.3.1.1 Select Display Mode Choose the number of windows to be displayed on the main window. Click on the display button in MODE section. The available selections is 4 camera display. To view certain window in full-screen, either double-click on the preferred grid, or click on the corresponding CAMERA button. -
Page 54: Digital Zoom Of Camera Display
DVR User’s Manual Iris +/− This item is used to open and close the iris to let more or less light into the camera. Click on <Iris +> to open iris or <Iris −> to close iris. Zoom +/− Users are allowed to zoom-in or zoom-out using the adjusting buttons. Zoom-in to enlarge a certain area and zoom-out to view more area. -
Page 55: Instant Recording
DVR User’s Manual 5.3.2 Instant Recording Instant Recording function allows users to record video to the PC by one click. NOTE: The Audio function is set to OFF as the default setting. 5.3.2.1 Record Video Instantly Follow the steps to start recording instantly: •... -
Page 56: Playback Remote Video
DVR User’s Manual 5.3.3.1 Playback Remote Video To view remote video, click <Play> on the main window toolbar, and then <Remote Playback> tab. The <Remote Playback> screen will be displayed. The <From> and <To> in the <Available Record Video> display the date and time from which recorded video is available for playback. -
Page 57: Playback Local *.Drv Files
DVR User’s Manual 5.3.3.2 Playback Local *.drv Files The <Local Playback> tab allows users to playback *.drv video files stored in the PC's hard drive. Follow below steps to playback a downloaded *.drv file with the remote monitoring software. • Click <Open> and the file selection screen is displayed. •... -
Page 58: Verify Digital Signature
DVR User’s Manual 5.3.4 Verify Digital Signature The digital signature aims to authenticate a video file exported from the DVR. Follow the description to verify the digital signature. • Click <Play> on the main window toolbar. • Click <Verify> tab to display the Verify window. •... -
Page 59: Take A Snapshot
DVR User’s Manual 5.3.6 Take a Snapshot Snapshot is a simple screen capture tool. When users click on the SNAPSHOT button, it will capture the screenshot of the window that is currently showing on the screen. Each click captures one screenshot to be saved as a JPEG file on the desktop. -
Page 60: Remote Software Upgrade/ Reboot Of Connected Dvr
DVR User’s Manual 5.3.8 Remote Software Upgrade/ Reboot of Connected DVR Users can remotely perform software upgrade or reboot the connected DVR. Remote Software Upgrade Click MENU button in the main window toolbar. A Configuration window will be displayed. Go to <System Setup> <System/Version Info>... -
Page 61: Remote Monitoring Software Troubleshooting
DVR User’s Manual 5.3.9 Remote Monitoring Software Troubleshooting What happened if the server requests to upgrade the software every time the DVR is connected? If the following screen displays repeatedly, please follow the steps to delete the temporary internet files. •... -
Page 62: Appendix A: Recommended Hdds
DVR User’s Manual Appendix A: Recommended HDDs The following is a list of recommended SATA HDDs. Brand Model Name Model Number Size Barracuda 7200.12 ST2500418AS 500GB SV35 ST3500411SV 500GB Seagate SV35 ST31000526SV Barracuda Green ST1500DL003 1.5TB Barracuda Green ST2000DL003 AV-GP WD5000AVDS 500G AV-GP... -
Page 63: Appendix B: Remote Controller
DVR User’s Manual Appendix B: Remote Controller A remote control is provided for the DVR. The operational function keys (on the lef t) and dome camera control keys (on the right) on the remote control are listed as below figure: DVR Control mode Dome Camera Control mode... - Page 64 DVR User’s Manual The keys of the remote control function as the keys of the front panel of the DVR. The only difference between the remote control and the front panel is the “DVR SEL” key. The DVR Selection key is used to switch control between different DVRs. The remote control can be used to control up to 16 DVRs.
-
Page 65: Appendix C: Usb Mouse Operation
DVR User’s Manual Appendix C: USB Mouse Operation Users can use an USB mouse to operate the DVR. To use the USB mouse, please read through the following descriptions. Plug in an USB mouse to any USB port of the DVR. Move the USB mouse, and the cursor should appear. - Page 66 DVR User’s Manual Motion Detection Area Setup When users are setting the motion detection area, an USB mouse can help to speedily complete the setup. Enter the OSD setup menu and go to the following path: <Event> <Per Channel Config> <Detection Config>...
-
Page 67: Appendix D: Keyboard Access Sketch
DVR User’s Manual Appendix D: Keyboard Access Sketch The following sketch shows the keys used to access and control the connected DVR. -
Page 68: Appendix E: Jog / Shuttle Control
DVR User’s Manual Appendix E: Jog / Shuttle Control The jog/shuttle knob is used to provide wide latitude in playback control. Note that the jog/shuttle knob is active only when the DVR has been in Playback mode. While playing back recorded video, users can rotate the shuttle ring to select different speed of forward and backward playback.
