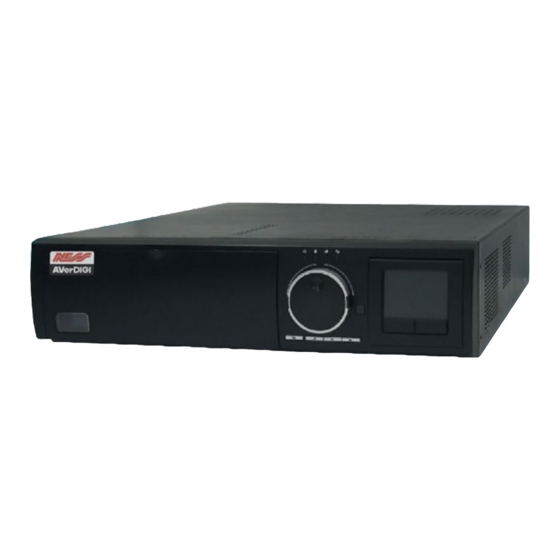

Ness 104-005 User Manual

16ch & 32ch nvrs / dvrs
Hide thumbs

Advertisement

Quick Links

Download this manual
104-005
104-295, 104-296
NESS-NET 16ch & 32ch NVRs / DVRs
USER'S MaNUal
With a comprehensive IP caMERa lIST showing compatibility
with IP cameras from most major manufacturers.
See pages 53+

Advertisement

loading
Need help?

Need help?

Do you have a question about the 104-005 and is the answer not in the manual?

Questions and answers

Related Manuals for Ness 104-005

Summary of Contents for Ness 104-005

  • Page 1 104-005 104-295, 104-296 NESS-NET 16ch & 32ch NVRs / DVRs USER’S MaNUal With a comprehensive IP caMERa lIST showing compatibility with IP cameras from most major manufacturers. See pages 53+...
  • Page 2 Features Continuous Recording / Smart Recording / Motion Recording / Audio Recording / Alarm Recording / Manual Recording Recording Modes All modes can be triggered by schedule De-interlace Optimize for dynamic or static camera scenes Options Motion Detection Detecting any kind of movements within the camera focus Privacy Protection Editable shield preventing private areas from monitoring and recording Operation via front...
  • Page 3 1.4.3 Front Panel of SA6000E RACK/6032E RACK (1) (2) Name Function (1) Locker To lock the front cover (2) USB port x 2 To connect external USB devices (3) Power switch To on/off the system unit (4) Removable HDD drawer It can be installed SATA hard disk (5) Removable HDD drawer To on/off the removable hard disk...
  • Page 4 Name Function To reset alarm status To enable/ disable recording video (10) To enable/ disable network connection A functional key for multiple system control Press to enable multiple function modes and the button will turn to blue light. To exit multiple function modes, press again.
  • Page 5 Name Function To move PTZ camera lens to left, right, up and down : To zoom in view of PTZ camera lens : To zoom out view of PTZ camera lens : To focus in PTZ camera lens : To focus out PTZ camera lens : To speed up movement of PTZ camera lens (12) PTZ control button : To speed down movement of PTZ camera lens...
  • Page 6 Name Function system status indicators: : System power indicator. Indicate running state of system. Lights when the system is running. : Hard disk/ DOM indicator. Indicate running state of the hard disk/ DOM. Lights (15) Status LEDs when the HDD/ DOM is reading or writing : Recording status indicator.
  • Page 7 1.4.4.1 Using AB Repeat Function AB Repeat function allow user to set a video segment from A to B point and play on the surveillance screen until user stop. Switch to Playback mode to enter multiple function mode Press During the playback, press to set the A point of video segment.
  • Page 8 Familiarizing the Remote Control Buttons of SA6000E/9000E Name Function Switch to playback mode, preview mode or E-map mode To reset alarm status To select the time and date of playback file Fast play the video playback at the speed of 2x, 4x, 8x, 16x or 32x Decrease the video playback at the speed of 1/2x, 1/4x, 1/8x To pause playing To rewind the recorded video...
  • Page 9 Name Function To move PTZ camera to left (13) To move PTZ camera to right To move PTZ camera to up To move PTZ camera to down Confirm or make a selection (14) Cancel a selection As a number key for entering password in playback and preview mode Channel camera selection number in playback and preview mode (15) As a preset position with...
  • Page 10 Name Function (16) : To quick backup the recorded video file (See Chapter 4.6.2) : To setup a A-B point video segment for playing(See Chapter 1.4.4.1) : To lock all buttons function of the panel and remote controller. To unlock, press and user will be required to enter the system password (default is admin/admin) To enable/ disable recorded video...
  • Page 11 Chapter 3 Using the DVR Software Running the Unit for the First Time When the unit is turned on for the first time, the system will prompt you to enter the CD-Key. The CD Key is a label on rear of the unit. Function buttons in Advanced/Preview Mode Name Function...
  • Page 12 Name Function (3) Split Screen Mode It provides 7 kinds of split display modes for your selection. You can select one of the split display modes by clicking the following icon. 1-Cam display 4-Cam split display 9-Cam split display 16-Cam split display 8-Cam split display 13-Cam split display 32-Cam split display...
  • Page 13 Name Function (13) iPOSLive To view the real time iPOS data of channels. Click the iPOSLive to call out the real time iPOS data windows. User can move the each channel of iPOS windows apart to proper position. If user didn’t enable the multi-channel of iPOSLive( see aslo iPOS Pro Setting in System Setting), and then, user should only can view one channel each time.
  • Page 14 Name Function Use the entire area of the screen to only display the video. To return, press the right (17) Full screen button of the mouse or ESC on the keyboard or click the arrow icon. When you switch to full screen in multiple-screen mode, Left click to toggle to only display one of the video in the multiple-screen mode or all.
  • Page 15 3.2.1 Using Event Log Viewer Show the record of activities that take place in the system. 1. Click the Event Log button on DVR system main interface. The Event log viewer window will show up. 2. Select the Date to view or search certain event log by key word. Enter the key word in Find Text column and click Search button.
  • Page 16 3.2.2 Using the Object Viewer Click Object Viewer bar to view and search FaceFinder event log. Name Function (1) Close Click to close Object Log Viewer windows (2) Search Mode Switch to face object log search mode. In search mode UI, select the camera to search the object.
  • Page 17 Function Buttons in Playback Mode To switch in Playback mode, click Playback button at the lower right corner of Advanced/Preview mode user interface Name Function (1) Split Screen Mode Select from 6 kinds of split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.
  • Page 18 Name Function (5) Date Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file. The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera ID.
  • Page 19 Name Function (11) Export Export includes Snapshot, Print, Output Video Clip, and Backup function. Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format. Print: Print the screen shot. Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format (see also Chapter 3.7).
  • Page 20 3.3.1 Watermark Verification Now, SA DVR supports watermark-checking to identify the authenticity of playback video. SA DVR program can only verify when a single channel in full screen playback mode. To verify the playback video doesn’t been modified. Click to verify the playback video. Watermark verification windows will show up as following:...
  • Page 21 Function Buttons in Compact Mode To view in Compact mode, click Exit button. In the logout dialog box, click Compact. Name Function (1) Split Screen Mode Select from 7 kinds of split screen type to view all the camera, or one camera over the other or alongside on a single screen.
  • Page 22 Function Buttons in PTZ Camera Controller (11) (10) Name Function (1) Close Exit PTZ camera controller. (2) Setup Configure PTZ cameras.(see Chapter 3.11) (3) AutoPan Operate the PTZ cameras automatically based on the selected camera group preset position number. (4) Focus +/- Adjust the focus manually to produce clear image.
  • Page 23 3.6.2 To Use the EMAP To use the EMAP: Click EMAP. In the EMAP screen, click the camera icon to switch on the area where the camera is located on the map and to display the video at the upper right corner of the EMAP screen. At the lower right corner of the EMAP screen, it lists all the warning message.
  • Page 24 To Bookmark a Section of the Video Click Bookmark. The video playback stops when the bookmark button is executed. In the Bookmark dialog box, you may do the following: Add to include the new reference mark in the bookmark list. You may select to enable/disable file protection.
  • Page 25 3.10 To Search Using the Event Search Click on the video screen on where you want to search. Click Event Search. The Event Search text (red) would appear at the lower left corner of the screen. In the Event Search Setting dialog box, check the type of condition you want to search. If you select POS, in the Find Text box, type the word.
  • Page 26 3.12 To Setup the PTZ/IP PTZ Camera 3.12.1 Setup the PTZ Camera 1. In the PTZ control panel, click Setup. 2. When the PTZ Setup dialog box appears, select the camera number and check the Use PTZ box. 3. In the Connection Settings section, select the COMPort where the PTZ camera is connected, PTZ ID number and PTZ camera protocol.
  • Page 27 (2) (3) Name Function (1) Adjust arrow To move the camera lens to up, down, left or right (2) Speed up/down To speed up or down movement of camera lens (3) Focus +/- Adjust the focus manually to produce clear image. (4) Zoom +/- Zoom in and out the image.
  • Page 28 Backup Video Players Chapter 5 You can playback the backup files using QPlayer applications. When you back up the recorded file, QPlayer applications are automatically included in the backup folder. With QPlayer, it is the same as in Playback mode and supports six (6) different split screen types to view all the video at the same time.
  • Page 29 Name Function (5) Date Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file. The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 16 represent the camera ID.
  • Page 30 Using Functional Keys Chapter 6 The DVR system provides shortcut keys. The table shows the function keys and descriptions. Function Keys Description Exit System Display system information Start recording Enable network function Access system settings Switch to playback mode Access E-map setting Access PTZ camera control panel Snapshot Switch to Full Screen...
  • Page 31 Using the Remote Programs Chapter 7 You can use Microsoft Internet Explorer to access DVR server by entering the IP address or domain name. To use this feature, make sure that you are connected to the internet and the Network feature is enabled. Accessing this feature for the first time you will be prompted by your browser to install WebCamX.cab, allow the installation and you should be able to connect and login afterwards.
  • Page 32 Familiarizing the WebViewer Buttons Right-clicking on the webViewer video screen, enables you to start video recording, change video quality, switch camera and enable/disable DirectDraw. (15) (14) (13) (12) (11) (10) Name Function (1) DirectDraw Enhance the video quality. Not all graphic cards can support this function. (2) Received file size Indicate the size of the data being sent per second.
  • Page 33 Name Function (15) Select cameras Click Add Server and select the server type between DVR and IP Cam to add. to view Click Delete Server to delete the selected item. Click Import to replace it with the previous saved list. Click Export to save the list.
  • Page 34 - Description Add a short comment. (4) Video Adjustment Adjust the Brightness, Contrast, Hue and Saturation of the selected camera. (5) Auto Brightness Control Automatically adjust the brightness. (6) Night View Automatically adjust the exposure to make the image more visible especially when the site is dark. You can only use this function when the Auto Brightness Control is enabled.
  • Page 35 Familiarizing the WebViewer PTZ Buttons Name Function (1) Direction buttons Adjust and position the focal point of the PTZ camera. Click the center to pan automatically. (2) Select PTZ Choose to enable/disable the PTZ camera. In the Select PTZ dialog box, Select column, click to enable/disable viewing and controlling the PTZ camera.
  • Page 36 Familiarizing the Remote Console Buttons (17) (16) (15) (14) (13) (12) (11) (2)(3) (10) Name Function (1) DirectDraw Enhance the video quality. Not all graphic cards can support this function. (2) Exit Close the Remote Console. (3) Volume Enable/disable the sound. (4) Split Screen Select from six (6) different split screen type to playback the recorded video file of all the Mode...
  • Page 37 7.3.1 To Setup Remote Console Setting Click OK to exit and save the setting and Cancel to exit without saving the setting. (1) Storage Path Set the directory on where to save the data. When there is not enough free space to record one hour data, the system automatically replaces the oldest data.
  • Page 38 7.3.2 Familiarizing the Buttons in PTZ Camera Controller (11) (10) Name Function (1) Close Exit PTZ camera controller. (2) Setup Configure PTZ cameras.(also see Chapter 3.12) (3) AutoPan Operate the PTZ cameras automatically based on the selected camera group preset position number.
  • Page 39 Using the Remote Playback To use this feature, first you need to select the source of the file. In the Select Playback Mode dialog box, choose Local Playback to open the file that is recorded in the Remote Console, and Remote Playback to open the file that is recorded in the DVR server.
  • Page 40 7.4.1 Familiarizing the Local Playback Buttons (15) (14) (13) (12) (11) (10) (4) (5) Name Function (1) Split Screen Mode Select from six (6) different split screen types to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.
  • Page 41 Name Function (10) Export Export includes Snapshot, Print, Output Video Clip, and Backup function. Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format. Print: Print the screen shot. Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format (see also Chapter 3.7).
  • Page 42 7.4.2 Familiarizing the RealTime Playback Buttons (11) (10) Name Function (1) Split Screen Mode Select from two (2) different split screen type to playback the recorded video file of all the camera, or one camera. If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode. To zoom in an area on the screen, Right click and Drag a square on the area you want to enlarge.
  • Page 43 Name Function (8) Status bar Display the recorded date, time and play speed. (9) Camera ID Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera. (10) Snapshot Capture and save the screen shot either in *.jpg or *.bmp format.
  • Page 44 7.4.3 Familiarizing the Download and Playback Buttons (11) (10) (4) (5) Name Function (1) Split Screen Mode Select from six (6) different split screen types to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen. - If there are only 4 cameras, you won’t be able to switch to 9, 16, and 13 split screen mode.
  • Page 45 Name Function (10) Export Export includes Snapshot, Print, Output Video Clip, and Backup function. Snapshot: Capture and save the screen shot either in *.jpg or *.bmp format. Print: Print the screen shot. Output Video Clip: Save the segmented file in *.mpg, *.avi, or *.dvr format. Follow the below steps to output a video clip: Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut.
  • Page 46 7.6.3 To Use the PDAViewer Run the PDA-Viewer 5.5 in the Programs. Familiarizing the PDAViewer buttons. (10) Name Function Hook up to the NV DVR server. Make sure you are connected to internet. (1) Connect When the iView screen appears, click Add to add DVR server. Enter the server IP, port, user ID, password and select the connection type.
  • Page 47 Name Function (9) Zoom Zoom in and out the PTZ camera image. (10) Direction buttons Adjust and position the focal point of the PTZ camera. To change the video quality, enable/disable audio, and select to display different camera, tap on the video screen longer the pop up menu will appear.
  • Page 48 10. The sensor and relay devices will list as below: 11. User can change the relay status. Select the relay and tap on video screen longer the pop up menu will appear, and then, select the status (ON, OFF, Tigger) 7.6.5 Using JavaViewer to Access DVR Server Using the mobile phone within Symbian Smart Phone OS to access the DVR through Internet.
  • Page 49 7.6.6 To Use the JAVA-Viewer 1. Run the JAVA-Viewer program. 2. Enter the DVR IP address, port number, user ID, and password. Please refer to your DVR server setting for that information. 3. And then, select the Connect to connect to DVR server.
  • Page 50 Image Verification Chapter 8 ImageVerification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files. To Run the ImageVerification program Click Start>Programs>DSS>ImageVerification. In the ImageVerification screen, click Load Source Image and locate the image source. Click Verify Image to begin the process.
  • Page 51 iEnhance Chapter 9 The bundled iEnhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the wanted portion of the video, zoom in and out the image, and print or save the screen shot.
  • Page 52 Name Function (16) Original Display the original state of the image. Screen (17) Temporary Display the sample settings. Click the sample to apply the setting on the current video. Setting Block (18) Status Bar Display the date, and time of the video. (19) Progress Bar Show the progress of the file being played.
  • Page 53 IP Camera Support List IP Cameras compatible with Ness IP DVRs 104-005 NESS-NET 16ch REALTIME NVR 104-295 NESS-NET 32ch NVR 104-296 NESS-NET 16ch NVR IP Camera Firmware in the NVRs should be version 5.0.0.15 for compatibility with these listed IP cameras.
  • Page 54 *1280x1024 resolution only supported on CH1 and MJPEG mode AMTK Device Device Channels Video Supported Audio Firmware Name Standard Resolution Ports Support Presets AM3015 MPEG4 640x480 IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs AM3511 MPEG4/MJPEG 640x480 3.0.2.2033 AM3514 MPEG4/MJPEG 640x480 3.0.2.2457...
  • Page 55 MPEG4/MJPEG 1280x1024 V3.2.39_As.1 CAM420 MPEG4/MJPEG 720x480 V3.2.39_As.1 AVICO Device Channels Video Supported Audio Firmware Name Standard Resolution Ports Support Presets S818_AVJW38_SV4.2 ACIP-TD5600 MPEG4 720x480 S818_AVJW38_HV1.1 *Do not support I/O control IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 56 Support Presets IPC-618C MPEG4/JPEG 720x480 A1D-220-V3.08.04-NB D-Link Device Device Channels Video Supported Audio Firmware Name Standard Resolution Ports Support Presets 704x480/N DCS-6620 JPEG/MPEG4 IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs 704x576/P DCS-G900 MJPEG 640x480 1.22 (2006-11-22)
  • Page 57 Video Supported Device Channels Video Supported Audio Audio Firmware Name Standard Resolution Ports Support Presets IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs Firmware Name Standard Resolution Ports Support Presets DS-2DF1617F MPEG4 704x576 DS-2DF1617F MPEG4 704x576 2CD852MF...
  • Page 58 JPEG 1280x1024 IQeye510 JPEG 752x480 B2.8/608(080303) IQeye602 JPEG 1600x1200 IQeye701 JPEG 1280x1024 V2.8/6(080313) IQeye702 JPEG 1600x1200 V2.8/6(080313) IQeye703 JPEG 2048x1536 V2.8/6(080313) IQeye755 JPEG 2560x1920 V2.8/6(080313) IQeye853 JPEG 2048x1536 V2.8/6(080313) IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 59 Lumenera Device Channels Video Supported Audio Firmware Name Standard Resolution Ports Support Presets Le275 MJPEG 720x480 *Support resolution, quality, brightness and contrast control. Messoa Device Channels Video Audio Supported IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 60 JPEG 640x480 BB-HCM331 JPEG 640x480 BB-HCM380 JPEG 640x480 BB-HCM381 JPEG 640x480 1.33 BB-HCM403 JPEG 640x480 3.20R01 BB-HCM515 JPEG 640x480 3.51R00 BB-HCM511 MPEG4/MJPEG 640x480 Yes(PT only) DG-NS202 MPEG4 640x480 1.11J2 IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 61 Yes(Z only) 1.00-00 <C07112001> VCC-HD4000P MJPEG 1024x768 1.00-02 <080916-05> Sony Device Device Channels Video Supported Audio Firmware Name Standard Resolution Ports Support Presets SNC-DF70 JPEG 640x480 2.13 SNTV704 MPEG4/MJPEG 720x480 IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 62 704x480/N IP2121 JPEG 704x576/P 704x480/N IP2122 JPEG 704x576/P 704x480/N IP3112 JPEG/MPEG4 704x576/P 704x480/N IP3122 JPEG/MPEG4 704x576/P TC5330 MPEG4/MJPEG 640x480 704x480/N PZ6112 JPEG/MPEG4 704x576/P IP6127 MPEG4 704x480 SD61x2 MPEG4/MJPEG 704x480 IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 63 MPEG4/MJPEG 720x480 2.4.5 Build 20080717 IP3400 MPEG4/MJPEG 720x480 0.8.10 IP2280 MPEG4 640x480 Yes* *Support Zooming only ZAVIO Supported Device Channels Video Audio Firmware Name Standard Resolution Ports Support Presets IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 64 *Do not support MJPEG mode LM.1.6.16.03 D611E MPEG4/MJPEG 704x480 *Do not support audio in MJPEG mode *Supported models are subjected to change due to different software version, always check latest software. IP Camera ComPatIbIlIty for Ness-Net 104-005 / 104-295 / 104-296 NVRs...
  • Page 65 All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
