Summary of Contents for Shark Pressure Washers STP-231007D

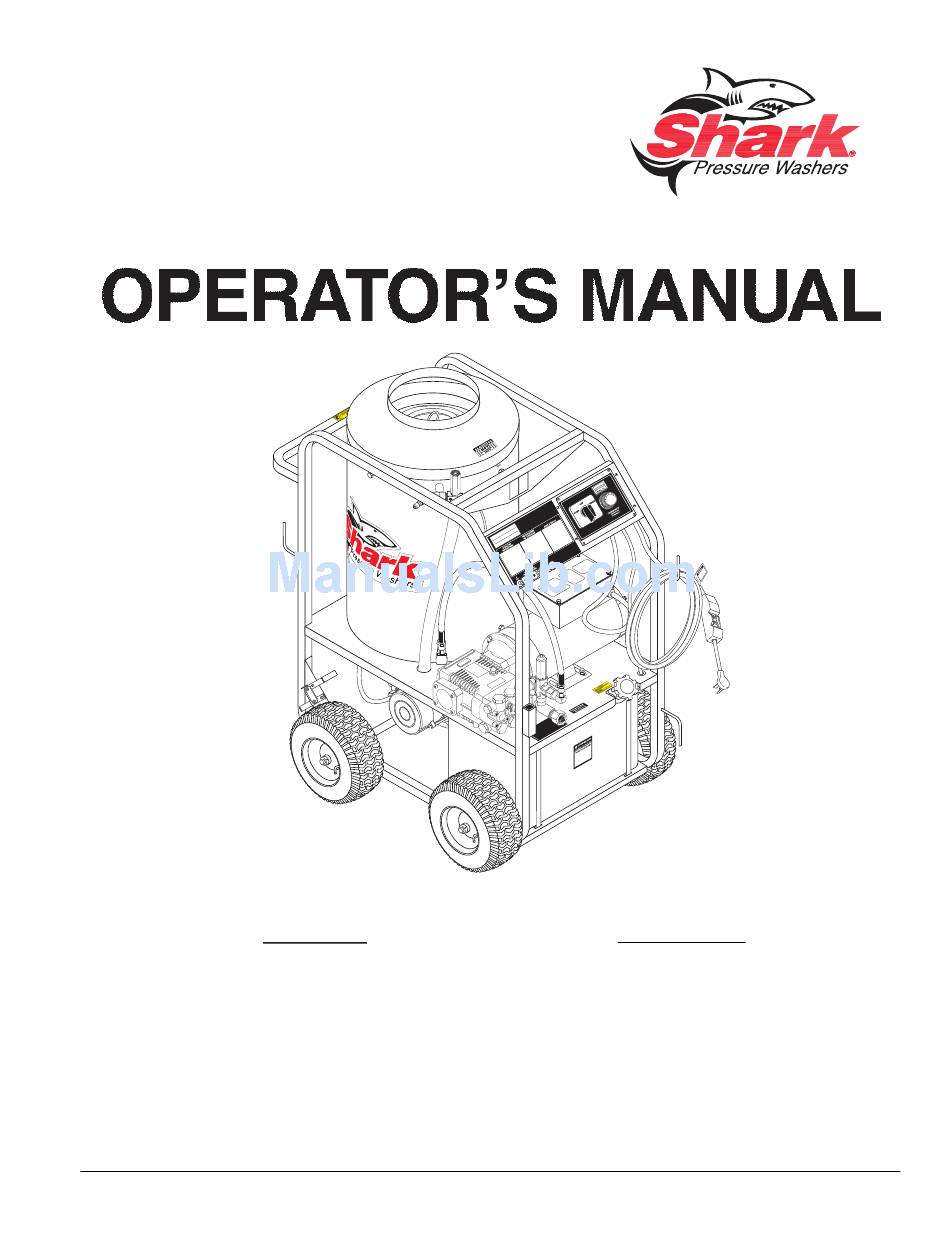

Page 1 ORDER # STP-231007D 1.109-101.0 STP-201507D 1.109-102.0 STP-352007A 1.109-103.0 STP-231007D 1.109-133.0 STP-352007A 1.109-134.0 o locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.shark-pw.com 9.801-191.0...
Page 2: Table Of Contents
CONTENTS Introduction and Safety Information Component Identiﬁ cation Operating Instructions Preventative Maintenance and Service 9-11 Exploded Views 12-13 Exploded Views Parts List 14-15 Control Panel Exploded View and Parts List Hose & Spray Gun Assembly and Parts List Downstream Injector Assembly and Parts List UU1 Unloader Exploded View and Parts List Pump Exploded View and Parts List 20-21...
Page 3 INTRODUCTION & IMPORTANT SAFETY INFORMATION DANGER: Improper connection of the equipment- ou for purchasing this Pressure Washer. grounding conductor can result in a risk of elec- We reserve the right to make changes at any time trocution. Check with a qualified electrician or without incurring any obligation.
Page 4 IMPORTANT SAFETY INFORMATION 10. Keep operating area clear of all persons. ARNING: High pressure devel- WARNING oped by these machines will WARNING: High pressure spray WARNING cause personal injury or equip- can cause paint chips or other ment damage. Keep clear of particles to become airborne nozzle.
Page 5 IMPORTANT SAFETY INFORMATION ALLATION Place machine in a convenient location providing ample support, draining and room for maintenance. This machine is intended for indoor use. Machine must be stored indoors when not in use. Location: The location should protect the machine from damag- ing environmental conditions, such as wind, rain, and freezing.
Page 6 TION C AU T I O N H O T WAT E R : Must use insulated spray gun and wand. Nozzle ON - OFF Switch Hour Meter Adjustable Thermostat Downstream Detergent Injector GFCI Wand Holder Fresh Water Faucet (not included) Discharge Nipple Burner...
Page 7: Component Identiﬁ Cation
TING INSTRUCTIONS Electrical: 5. Insert quick coupler onto discharge nipple and secure by pushing quick coupler collar forward. This machine, when installed, must be electrically 6. Securely attach the desired high pressure nozzle grounded in accordance to local codes. Check for into wand coupler as described in steps 4 and 5.
Page 8: Operating Instructions
OPERATING INSTRUCTIONS 4. Place detergent pick-up tube into container of HOW TO USE THE detergent solution. DETERGENT INJECTOR 5. Turn pressure control handle counterclockwise on the variable pressure wand. This lowers the pres- WARNING WARNING: Some detergents sure by directing the water ﬂ ow through the soap may be harmful if inhaled or in- nozzle and allows the detergent injector to siphon gested causing severe nausea,...
Page 9 ATIVE MAINTENANCE AND SERVICE solution of anti-freeze/water into a 5 gallon bucket. PREVENTATIVE MAINTENANCE Place a short section of garden hose into bucket and connect it to machine. Elevate bucket and turn pump on 1. Use clean fuel - kerosene, No. 1 home hearing to siphon anti-freeze through machine.
Page 10: Preventative Maintenance And Service
PREVENTATIVE MAINTENANCE AND SERVICE the soot on the coil must be washed off after coil has been removed using the following steps: Burner Nozzle: 1. Remove the tank head assembly by lifting the tank Keep the tip free of surface deposits by wiping it with a head off.
Page 11 ATIVE MAINTENANCE AND SERVICE halfway back to the black smoke position previously UTION: If white smoke appears from burner ex- noted. Tighten locking screws. haust vent during start-up or operation, discontinue use and readjust air bands. Air Shutter Locking Screw NOTE: If a flue is installed, have a professional service- Air Shutter man adjust your burner for a #1 or #2 smoke spot on...
Page 12: Exploded Views
EXPLODED VIEW - LEFT (Reversed View of Labels) (Reversed View of Label) Detail See Control Panel Illus. To Fuel Tank Fuel Tank v. 02/14B...
Page 13 VIEW - RIGHT 28,29 D EP O SI TI VO R ES R EP O SI C IO View Overload Button v. 02/14B...
Page 14: Exploded Views Parts List
EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-782.0 Collar, 5/8" Bore Shaft 9.175-018.0 UU1 3500PSI, UNIVERSAL UNLOADER 9.802-271.0 Wheel & Tire Assy, 6" Steel Rim w/Tube 9.800-049.0 Label, Manufacturer's Cleaning Solution 9.802-810.0 Washer, 5/8", Flat, SAE 8.918-425.0 Hose, 3/8"...
Page 15 VIEWS PARTS LIST ITEM PART NO. DESCRIPTION 9.802-583.0 Nozzle, Oil, HOL 1.00 A, 90° (231007D, 201507D) 8.717-272.0 Nozzle, Burner, 1.75 B 90° (352007A) 9.802-781.0 Nut, 3/8" Flange, Whiz Loc, NC 9.802-424.0 Cord, Service, SEO, 16/4, Coleman 64" 9.802-519.0 Strain Relief, 1/2" Metal, Two Screw 9.803-264.0 Nipple, 1/4"...
Page 16 CONTROL PANEL EXPLODED VIEW Thermostat To Burner Motor To Power Pressure Source Switch To Motor OL PANEL EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.750-094.0 Thermostat, 150C/302F 9.802-514.0 Strain Relief, Strt, Lq, Tite 9.802-449.0 Switch, 3 PS, 120V-230V, 1Ph 1 9.802-447.0 Conduit, Corr, Tubing, 1/4"...
Page 17 Y GUN EXPLODED VIEW HOSE AND SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-287.0 Nozzle SAQMEG 0003, 9.802-166.0 Coupler, 3/8" Female Red (201507D) 9.802-100.0 ▲ Quick Coupler O-Ring LG 1 9.802-288.0 Nozzle, SAQMEG 1503, 8.739-314.0 Hose, 3/8"...
Page 18 DOWNSTREAM INJECTOR EXPLODED VIEW DOWNSTREAM INJECTOR PARTS LIST ITEM PART NO. DESCRIPTION 9.802-215.0 Injector, Detergent, Non-Adjust #2 (231007D, 201507D) 9.802-216.0 Injector, Detergent, Non-Adjust #3 (352007A) 6.390-126.0 Clamp, Hose, UNI .46 - .54 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 6 ft. 9.802-160.0 Strainer, 1/4"...
Page 19 ADER EXPLODED VIEW 9.175-018.0 UU1 3500PSI, UNIVERSAL UNLOADER (SPARE) UU1 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 9.149-006.0 Sliding Connector Guide 8.751-394.0 Piston Housing O-Ring Backup A, D Piston C, D 6 x 1.45 x 1.68 Piston O-Ring Back Up A, D...
Page 20 SE.1 SERIES PUMP EXPLODED VIEW 8.904-791.0 SE 2020S 8.904-781.0 SE 3525F TORQUE SPECS Item # Ft.-lbs SE.1 SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION PART NO. DESCRIPTION 9.803-938.0 Crankcase 9.803-951.0 Brass Plug G1/4 9.804-586.0 Plunger Oil Seal 9.803-952.0 Manifold Stud Bolt See Kit Below O-Ring Ø...
Page 21 ARTS LIST ITEM PART NO. DESCRIPTION 9.804-584.0 Flange Screw 9.804-585.0 Crankshaft Seal See Kit Below Plunger Nut See Kit Below Copper Spacer See Kit Below Plunger 15mm (2020F, 2825F, 3525F) See Kit Below Plunger 18mm (2020S, 2825S) See Kit Below Copper Spacer See Kit Below O-Ring Ø1.78 x 5.28 See Kit Below Teﬂ...
Page 22 arts For best performance specify genuine KNA replacement parts v. 02/14B...
Page 23 Item # Part # Description Item # Part # Description 8.919-050.0 BURNER HOUSING ASSEMBLY 8.919-116.0 IGNITOR, BURNER 12VDC 8.751-160.0 AIR GUIDE 8.751-165.0 PLUG, HOLE 0.875 PLASTIC 8.700-758.0 FUEL PUMP, SUNTEC A2VA-3106 12-24V SOL 8.750-830.0 PLUG, HOLE 0.285 PLASTIC 8.700-759.0 FUEL PUMP, SUNTEC A2VA-3106 120V SOL 8.751-134.0 PLUG, 1/8"...
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Insufficient water supply Use larger garden hose; clean filter washer at water inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle.
Page 25: Maintenance Schedule
MAINTENANCE SCHEDULE ATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your local pres- sure washer dealer for maintenance.
Page 26 .shark-pw.com Form # 9.801-191.0 • Revised 02/14B • Printed in U.S.A. or Mexico...
