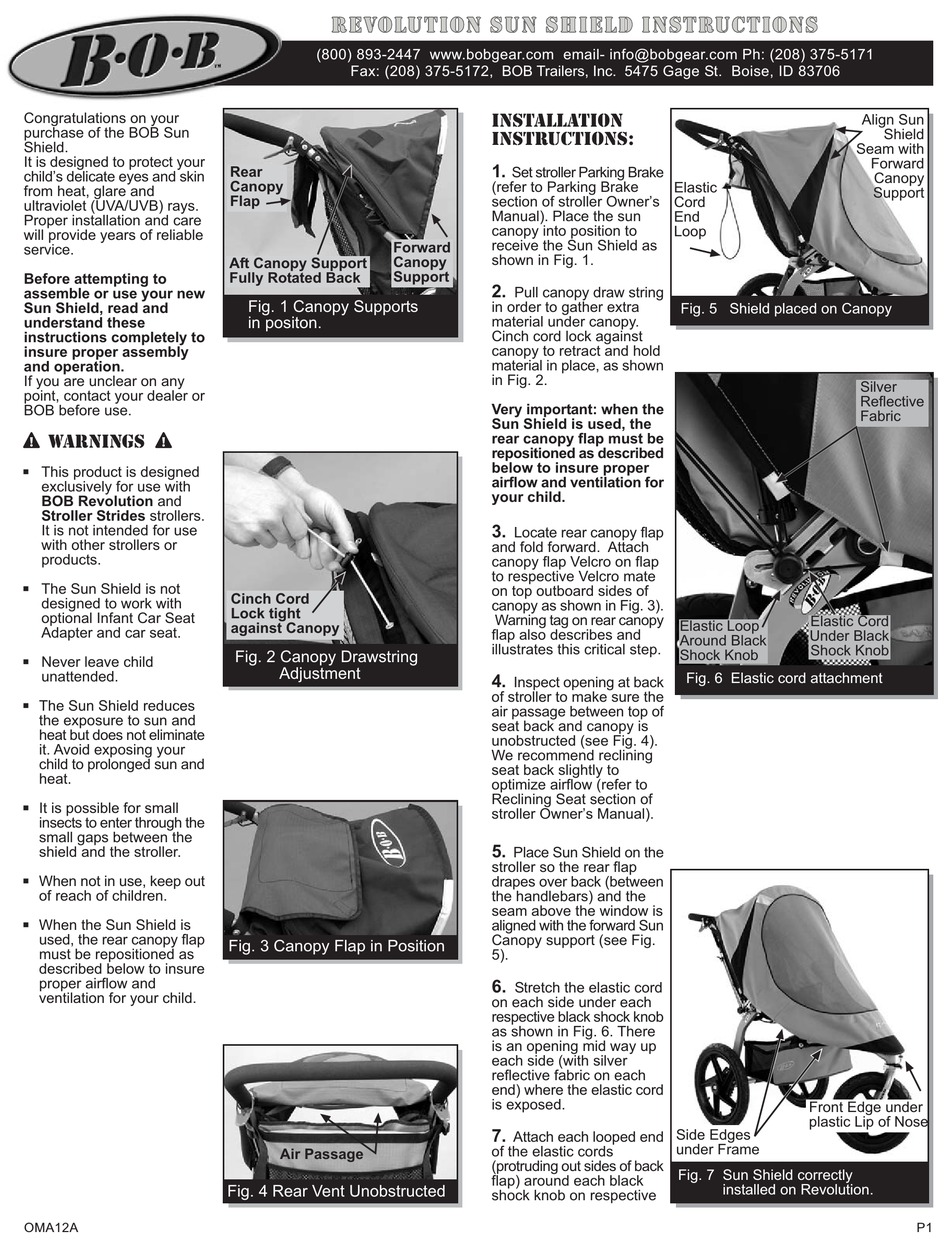

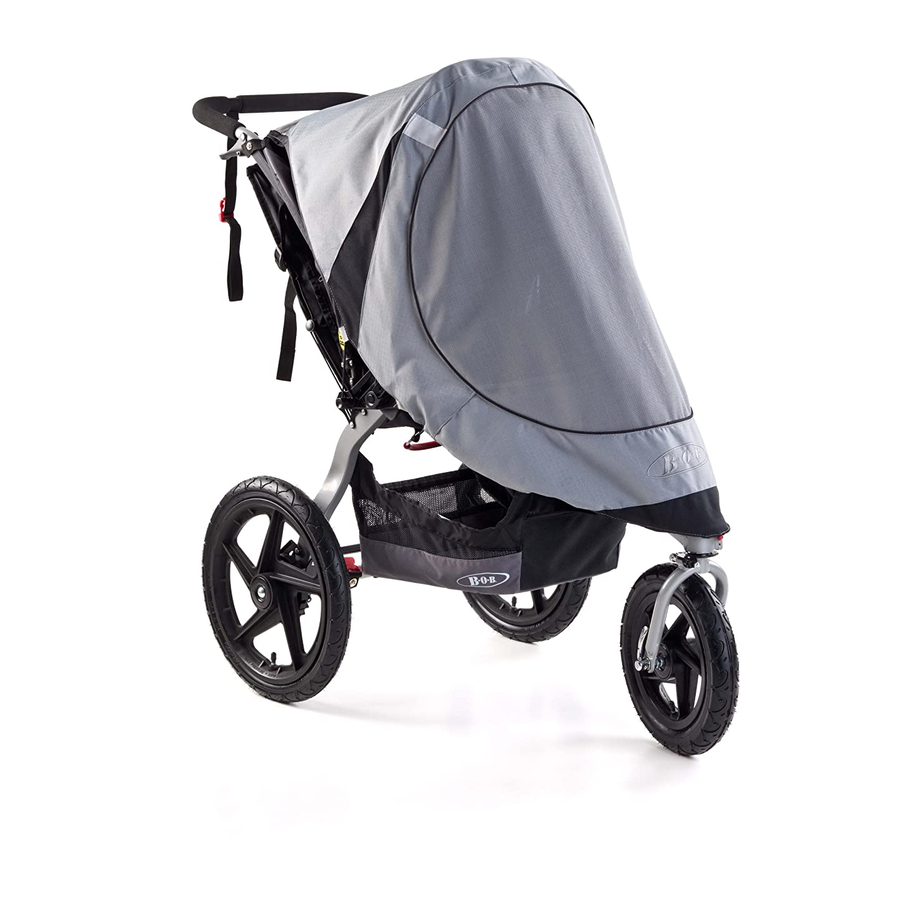

BOB Sun Shield Instruction Manual

Congratulations on your
purchase of the BOB Sun
Shield.
It is designed to protect your
child’s delicate eyes and skin
from heat, glare and
ultraviolet (UVA/UVB) rays.
Proper installation and care
will provide years of reliable
service.
Before attempting to
assemble or use your new
Sun Shield, read and
understand these
instructions completely to
insure proper assembly
and operation.
If you are unclear on any
point, contact your dealer or
BOB before use.

Warnings

. . This product is designed
exclusively for use with
BOB Revolution and
Stroller Strides strollers.
It is not intended for use
with other strollers or
products.
. . The Sun Shield is not
designed to work with
optional Infant Car Seat
Adapter and car seat.
. . Never leave child
unattended.
. The Sun Shield reduces
the exposure to sun and
heat but does not eliminate
it. Avoid exposing your
child to prolonged sun and
heat.
. It is possible for small
insects to enter through the
small gaps between the
shield and the stroller.
. When not in use, keep out
of reach of children.
. When the Sun Shield is
used, the rear canopy flap
must be repositioned as
described below to insure
proper airflow and
ventilation for your child.
OMA12A
Revol Rev olution sun shield ins ution sun shield instr
(800) 893-2447 www.bobgear.com email- info@bobgear.com Ph: (208) 375-5171
Fax: (208) 375-5172, BOB Trailers, Inc. 5475 Gage St. Boise, ID 83706
Rear
Canopy
Flap
Forward
Canopy
Aft Canopy Support
Support
Fully Rotated Back
Fig. 1 Canopy Supports
in positon.
Cinch Cord
Lock tight
against Canopy
Fig. 2 Canopy Drawstring
Adjustment
Fig. 3 Canopy Flap in Position
Air Passage
Fig. 4 Rear Vent Unobstructed
Installation
instructions:
1.
Set stroller Parking Brake
(refer to Parking Brake
section of stroller Owner’s
Manual). Place the sun
canopy into position to
receive the Sun Shield as
shown in Fig. 1.
2.
Pull canopy draw string
in order to gather extra
material under canopy.
Cinch cord lock against
canopy to retract and hold
material in place, as shown
in Fig. 2.
Very important: when the
Sun Shield is used, the
rear canopy flap must be
repositioned as described
below to insure proper
airflow and ventilation for
your child.
3.
Locate rear canopy flap
and fold forward. Attach
canopy flap Velcro on flap
to respective Velcro mate
on top outboard sides of
canopy as shown in Fig. 3).
Warning tag on rear canopy
flap also describes and
illustrates this critical step.
4.
Inspect opening at back
of stroller to make sure the
air passage between top of
seat back and canopy is
unobstructed (see Fig. 4).
We recommend reclining
seat back slightly to
optimize airflow (refer to
Reclining Seat section of
stroller Owner’s Manual).
5.
Place Sun Shield on the
stroller so the rear flap
drapes over back (between
the handlebars) and the
seam above the window is
aligned with the forward Sun
Canopy support (see Fig.
5).
6.
Stretch the elastic cord
on each side under each
respective black shock knob
as shown in Fig. 6. There
is an opening mid way up
each side (with silver
reflective fabric on each
end) where the elastic cord
is exposed.
7.
Attach each looped end
of the elastic cords
(protruding out sides of back
flap) around each black
shock knob on respective
tructions uctions
Elastic
Cord
End
Loop
Fig. 5 Shield placed on Canopy
Elastic Cord
Elastic Loop
Under Black
Around Black
Shock Knob
Shock Knob
Fig. 6 Elastic cord attachment
Front Edge under
plastic Lip of Nose
Side Edges
under Frame
Fig. 7 Sun Shield correctly
installed on Revolution.
Align Sun
Shield
Seam with
Forward
Canopy
Support
Silver
Reflective
Fabric
