BOB Sun Shield Instructions

Congratulations on your purchase of the BOB Sun Shield.
It is designed to protect your child’s delicate eyes and skin
from heat, glare, and ultraviolet (UVA/UVB) rays.
It also provides protection from wind and flying insects.
Proper installation and care will provide years of reliable
service.
Before attempting to use or attach your new Sun Shield,
read and understand these instructions completely to
insure proper assembly and operation. If you are unclear
on any point, contact your dealer or BOB before use.
Warnings
. This product is designed exclusively for use with BOB
Sport Utility, Sport Utility D’Lux and Ironman strollers.
It is not intended for use with other strollers or products.
. The Sun Shield is not designed to work with optional Infant
Car Seat Adapter and car seat.
. Never leave child unattended.
. The Sun Shield reduces the exposure to sun and heat but
does not eliminate it. Avoid exposing your child to prolonged
sun and heat.
. It is possible for small insects to enter through the small
gaps between the shield and the stroller.
. When not in use, keep out of reach of children.
. When the Sun Shield is used, the rear canopy flap must
be in correct position as described below. This will insure
proper air flow and ventilation for your child.

INSTALLATION INSTRUCTIONS:

1.
Set stroller Parking Brake (refer to Parking Brake section
of stroller Owner’s Manual). Place sun canopy into position
to receive the Sun Shield as shown in Fig.1.
2.
Pull canopy drawstring in order to gather extra material
under canopy. Cinch cord lock against canopy to retract and
hold material, as shown in Fig. 2.
Very Important: When the Sun Shield is used, the rear
canopy flap must be in correct position as described
below. This will insure proper air flow and ventilation
for your child.
3.
Locate rear canopy flap and fold forward. Attach canopy
flap Velcro on flap to respective Velcro mate on top outboard
side of each canopy as shown in Fig. 3). Warning tag on
rear canopy flap also describes and illustrates this critical
step.
4.
Inspect opening at back of stroller to make sure the air
passage between top of seat back and canopy is unobstructed
(see Fig. 4). We recommend reclining each seat back slightly
to optimize airflow (refer to Reclining Seat section of stroller
Owner’s Manual).
5.
Place Sun Shield on the stroller so the rear flap drapes
over back (between the handlebar) and the seam above the
window is aligned with the forward Sun Canopy support (see
Fig. 5).
6.
Stretch the elastic cord on each side under each respective
black shock knob as shown in Fig. 6. There is an opening
mid way up each side (with silver reflective fabric on each
OMA25
spor sport utility s t utility str troller sun Shield ins
(800) 893-2447 www.bobgear.com email- info@bobgear.com Ph: (208) 375-5171
Fax: (208) 375-5172, BOB Trailers, Inc. 5475 Gage St. Boise, ID 83706
Rear
Canopy
Flap
Aft Canopy Support
Fully Rotated Back

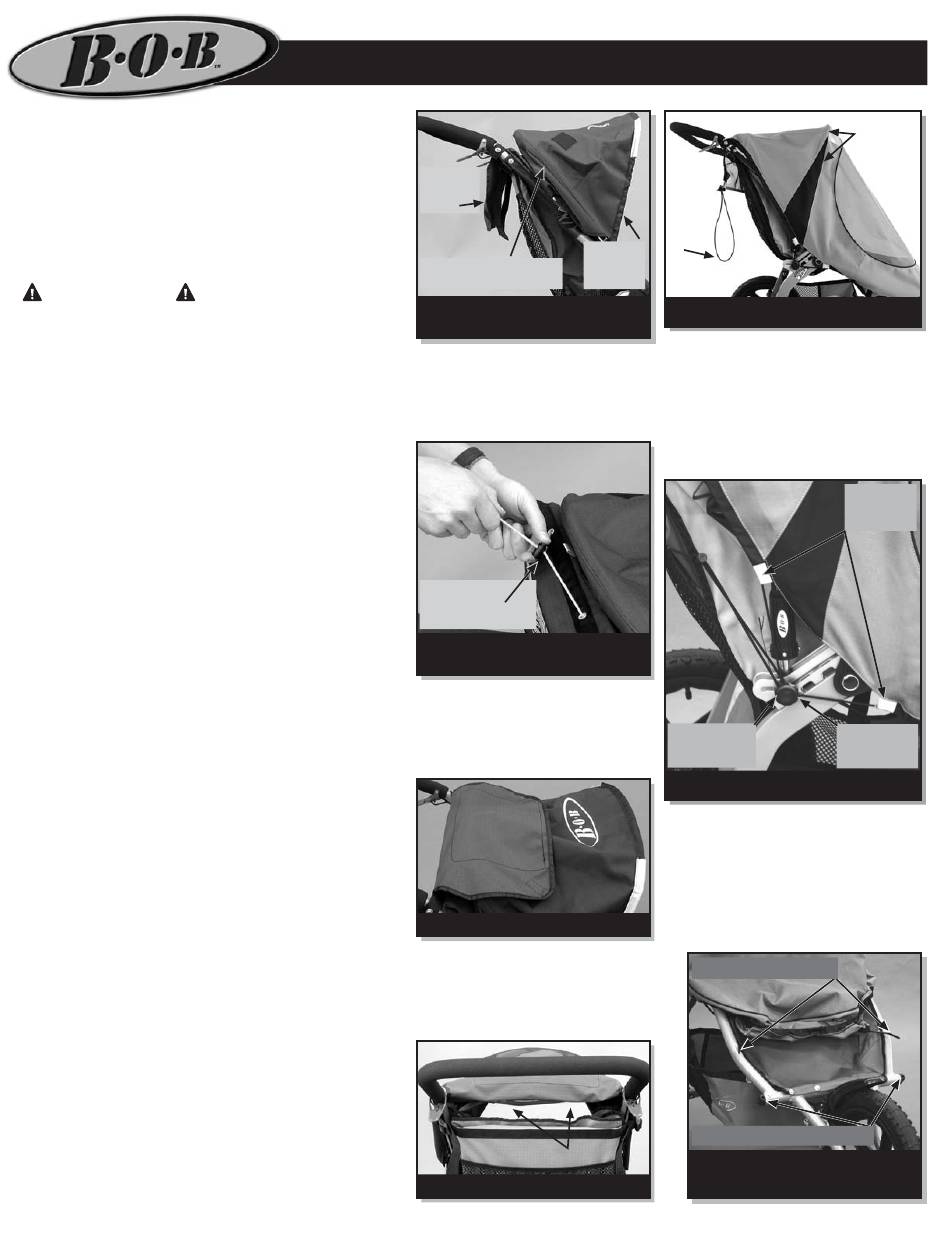

Fig. 1 Canopy Supports
