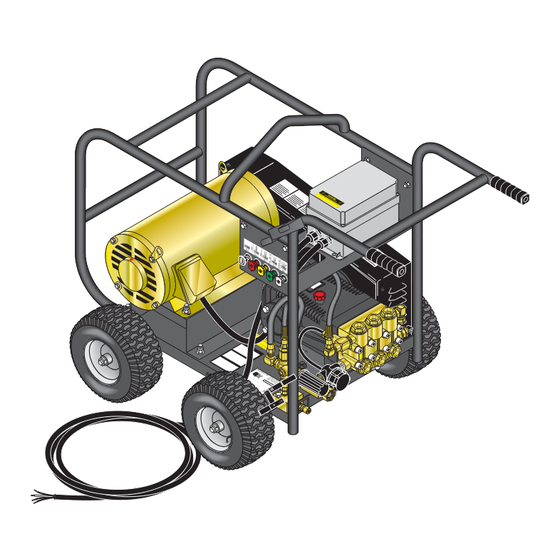

- Page 1 OPERATOR’S MANUAL ■ ■ MPE5-50024B MPE5-50024C ® For technical assistance or the dealer nearest you consult our web page at www.landa.com 8.914-000.0...
-
Page 3: Table Of Contents
CONTENTS Important Safety Information ..............2-3 Component Identifi cation ................. 4 Assembly Instructions ................5 Operating Instructions................6 Applying Detergent & General Washing Techniques ....... 7 Shutdown and Cleanup ................8 Troubleshooting ..................9 Preventative Maintenance ..............10 Oil Change Record ................10 Hose &... -
Page 4: Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. DANGER: Improper connection of the equipment- grounding conductor can result in a risk of elec- We reserve the right to make changes at any time trocution. Check with a qualified electrician or without incurring any obligation. - Page 5 IMPORTANT SAFETY INFORMATION 14. Inlet water must be clean fresh water and no hotter WARNING: Grip cleaning wand WARNING then 90°F. securely with both hands before starting. Failure to do this could 15. Manufacturer will not be liable for any changes result in injury from a whipping made to our standard machines or any components wand.
-
Page 6: Component Identifi Cation
COMPONENT IDENTIFICATION Optional Hose Reel & Mount Wand Electrical Spray Gun High Pressure Hose Pump Rupture Disk High Pressure Nozzles Unloader Valve Pump Protector High Pressure Outlet Cold Water Inlet Power Cord Pump — Delivers a specifi c gpm to the high pressure Rupture Disk —... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Spray High Safety Pressure Latch Outlet Coupler Collar High Pressure Hose High Pressure Hose STEP 1: Attach the high pressure STEP 2: Before installing nozzle, STEP 3: Connect the high pressure hose to the spray gun using tefl on turn on water supply and run hose to the high pressure outlet. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS STEP 1: Connect machine to ad- STEP 2: Trigger the spray gun to STEP 3: Turn machine on. equate power source. Push reset eliminate trapped air then wait for button on GFCI if equipped. a steady fl ow of water to emerge from the spray wand. -
Page 9: Applying Detergent & General Washing Techniques
APPLYING DETERGENT & GENERAL OPERATING TECHNIQUES WARNING: Some detergents tures. When the water reaches this temperature, the WARNING pump protector engages and cools the pump by dis- may be harmful if inhaled or charging the warm water onto the ground. This thermal ingested, causing severe nau- device prevents internal damage to the pump. -
Page 10: Shutdown And Cleanup
SHUT DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suc- STEP 3: Press trigger to release STEP 2: Turn off the motor. tion tube from container and insert water pressure. into one gallon of fresh water. For low pressure connect the black detergent nozzle. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION PUMP RUNNING Pump sucking air Check water supply and possibility of air NORMALLY BUT seepage. PRESSURE LOW Check valves sticking Check and clean or replace if necessary. ON INSTALLATION Unloader valve seat faulty Check and replace if necessary. Nozzle incorrectly sized Check and replace if necessary. -
Page 12: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 13: Hose & Spray Gun Assembly & Parts List
HOSE & SPRAY GUN ASSEMBLY 9.800-415.0-4 HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-228.0 Gun w/Wand (5000 PSI), 9.802-251.0 Hose, 1/4" x 1/2" w/Coupler Clear Vinyl 6 ft. 8.918-088.0 Hose, 3/8" x 50', 2W, TS,SO- 9.802-160.0 Strainer, Plastic, 1/4"... -
Page 14: Warranty
Authorized LANDA Dealer of the defect. Your Authorized LANDA Dealer will file a claim with Landa, who must subsequently verify the defect. In most cases, the part must be returned to LANDA freight prepaid with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized LANDA Dealer can help you obtain warranty service through these manufacturers’... - Page 16 Form #8.914-000.0 • Revised 06/12 • Printed in U.S.A. or Mexico...
