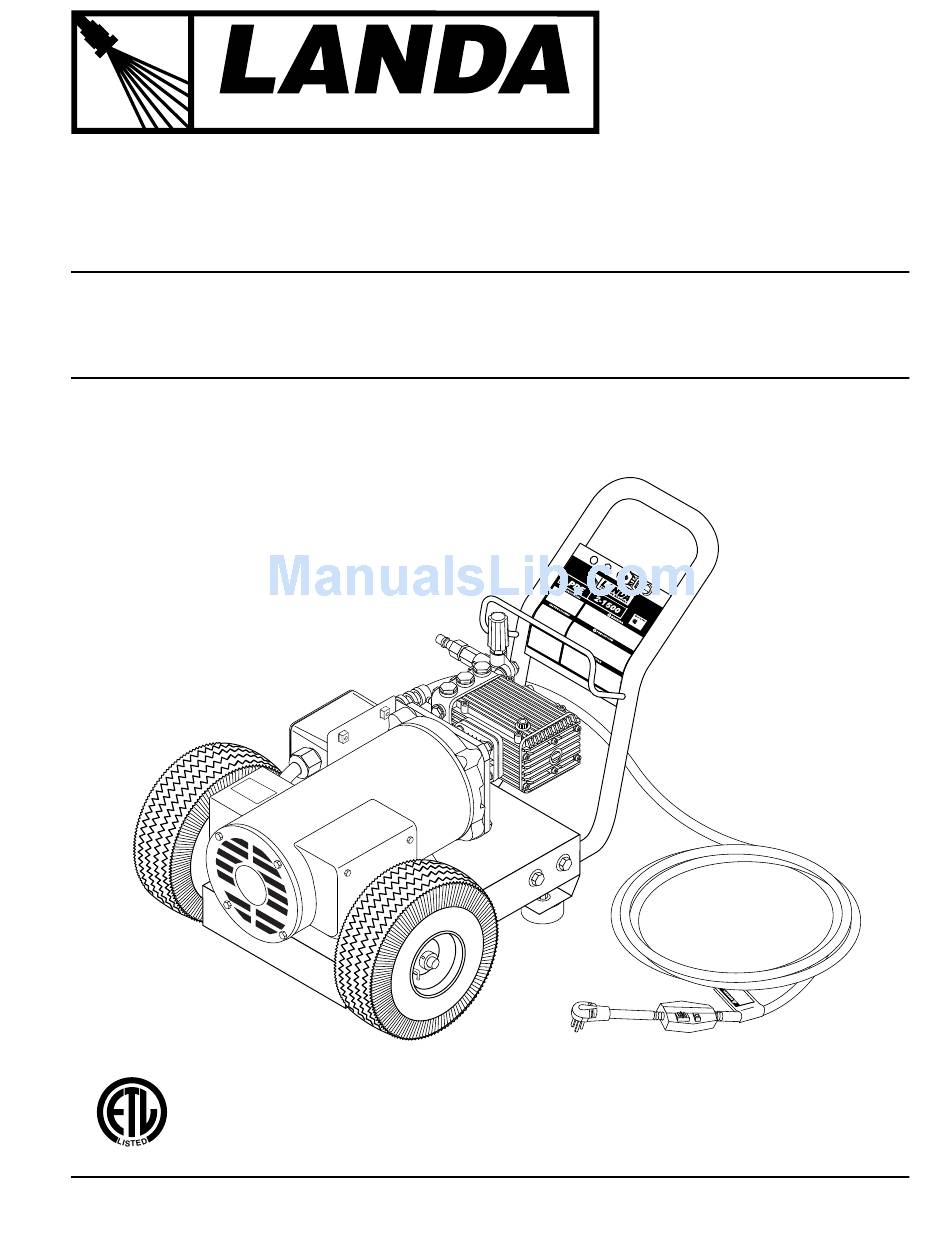

  • Page 1 I PDE2-1500 I PDE3-1500 I PDE4-2000 I PDE4-3000 ® LANDA, INC. 4275 N.W. Pacific Rim Blvd. Camas, WA 98607 For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100 or consult our web page at www.landa.com...

  • Page 3: Table Of Contents

    Component Identification ......................7 How To Use the Detergent Injector ....................8 Exploded View (PDE2-1100, 2-1500, 3-1500 4-2000)..............9 Parts List, Exploded View (PDE2-1100, 2-1500, 3-1500 4-2000) .........10 - 11 Exploded View (PDE4-3000)....................... 12 Parts List, Exploded View (PDE4-3000) ..................13 Downstream Injector Assembly #4-011183, #4-0111831 and #4-011184 ........

  • Page 4: Introduction

    Landa, Inc. reserves the right to make changes at any time without incurring any obligation. WARNING: Risk of explosion — do not spray flammable liquids.

  • Page 5: Pre-Operation Check

    8. On 230V machines, attach appropriate plug end (not tion and knowledge of the machine. included) to power cord. 13. Landa will not be liable for any changes made to our OPERATING INSTRUCTIONS standard machines, or any components not pur- chased from Landa.

  • Page 6: Shut Down Procedures

    CAUTION: Do not allow pump to run longer than 5 minutes without water. Disconnect all hoses to al- low water to drain. CAUTION: With machine off, open spray gun to re- lease pressure before removing discharge hose. LANDA PDE • REV. 9/02...

  • Page 7: Component Identification

    (not included) Brass Soap Nozzle Detergent Detergent Injector Bucket (not included) Power Supply Oil Dip Nozzle Stick Quick Coupler Swivel GFCI Connector Trigger Spray Wand (2 piece wand on 3-1500 and below) High Pressure Hose LANDA PDE • REV. 9/02...

  • Page 8: How To Use The Detergent Injector

    The machine can siphon and mix de- NOTE: The detergent injector will not siphon with MAY BE HARMFUL IF the high pressure nozzle at the end of the wand. tergents with the use of Landa's de- INHALED OR INGESTED tergent injector kit.

  • Page 9: Exploded View (Pde2-1100, 2-1500, 3-1500 4-2000)

    PDE SERIES PRESSURE WASHER OPERATOR’S MANUAL PDE2-11021D • PDE2-15021D • PDE3-15021A • PDE4-20021A EXPLODED VIEW Front View #2-1100 Model Only 4-2000, 4-3000 Models Only LANDA PDE • REV. 9/02...

  • Page 10: Parts List, Exploded View (Pde2-1100, 2-1500, 3-1500 4-2000)

    L Label, Ground 11-1042 5-2252 Pump, AR (4-20025) 90-20041 Collar, 5/8" Bore Shaft 5-3024 Unloader, General, YVB175 (2-11021D, 2-15021D, 2-01403 Bushing, 5/8" Snap 3-15021A, 4-20021A,G) 4-0303 Wheel and Tire Assy, 4", 5-3203 Unloader (4-20025) Tubeless, Sawtooth LANDA PDE • REV. 9/02...
  • Page 11 Yellow (2-15021D) 4-12804015 Nozzle, SAQMEG, 1504, Yellow (2-11021D) 4-12804515 Nozzle, SAQMEG, 15045, Yellow (3-15021A) 4-12805015 Nozzle, SAQMEG, 1505, Yellow (4-20021A,G) 2-2006 Nipple 3/8" x 3/8" NPT 90-1016 Bolt, 3/8" x 1" NC L Not Shown LANDA PDE • REV. 9/02...

  • Page 12: Exploded View (Pde4-3000)

    PDE SERIES PRESSURE WASHER OPERATOR’S MANUAL PDE4-30025A, B, C EXPLODED VIEW LANDA PDE • REV. 9/02...

  • Page 13: Parts List, Exploded View (Pde4-3000)

    Washer, 7/16" x 2-1/2" L Strain Relief, 1" (4-3000B/C) 1 6-05171 95-07161114A Tube Foot 5-2263 Pump, AR RKA35G30E-F17 90-5009 Spring Foot 10-08028 Tag, Remove Pump Plug L Not Shown 5-3203 Unloader, AR-20242G, 3-4 GPM/3500 PSI, Black Knob 1 LANDA PDE • REV. 9/02...

  • Page 14: Downstream Injector Assembly #4-011183, #4-0111831 And #4-011184

    2-3 GPM, 0.70" (2-1500, 3-1500) 3-12021 Injector, Det, Non Adj., 3-5 GPM, 0.83" 4-011184 Detergent Injector Assy, 3-5 GPM, 0.83" (4-2000, 4-3000) 2-9000 Clamp, Screw, #4 4-02080000 Tube, 1/4" x 1/2", Clear Vinyl /ft. 2-1904 Strainer, 1/4", Hose Barb LANDA PDE • REV. 9/02...

  • Page 15: Hose & Spray Spray Gun Assembly

    4-01212 Spray Gun, Shut-off Series 2000 1 (2-1100, 2-1500, 3-1500) 4-0110410 Wand, SS, 31.4" w/Coupler L Not Shown (4-2000) 4-0110540 Wand, SS, 42" (4-30025A,B,C) 1 See Exploded View Parts Breakdown 4-16540 Brass Soap Nozzle (Black) LANDA PDE • REV. 9/02...

  • Page 16: Troubleshooting

    Check that main voltage corresponds to the specifications overheating for the PDE. Wait a few minutes before turning on the machine again by resetting the GFCI cord. For parts or information contact your local LANDA dealer LANDA PDE • REV. 9/02...

  • Page 17: Preventative Maintenance

    Attention to regular preventative mainte- nance procedures will assist in preserving the performance of your equipment. Contact your Landa, Inc. dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform maintenance more often under severe conditions.

  • Page 18: Warranty

    TICULAR PURPOSE. LANDA does not authorize any other party, including authorized LANDA Dealers, to make any represen- tation or promise on behalf of LANDA, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of LANDA products conforms to local codes.

  • Page 19: Spanish

    Lea la etiqueta de advertencia del cable electrico. 11. Landa no se hará responsable de ninguno de los cambios hechos a nuestras unidades éstandar, o 3. Para proteger al operador de un por ningún componente que no sea comprado choque eléctrico, la máquina...
  • Page 20 7. Para la seguridad del operador y de acuerdo a los 18. El agua de entrada debe ser aqua dulce limpia fría. estándares de seguridad eléctricos, los modelos 19. Landa, Inc. No será responsable por cualquier PDE2-15025D y PDE2-15021D cuentan con cambio o alteración hecho a la máquina o unidades conector de 120v 20 amp que únicamente se pueden...

  • Page 21: Manual Del Operador

    Manguera para Detergentes Enganche Tanque para Boquilla de Cobre Rapido Detergentes para Detergente (no se incluye) Pistola de Medidor de Riego Cople de Aceite Varilla Fuente GFCI Poder Varilla Gatillo Conector Giratorio Manguera de alta Presión LANDA PDE • REV. 9/02...
  • Page 22 5 minutos sin agua. Desconecte todas las mangueras para permitir que el agua se escurra. ADVERTENCIA: Con la maquina apagada, abra la pistola para dejar salir la presion antes de remover la manguera de descarga. LANDA PDE • REV. 9/02...
  • Page 23 Enganche Rápido Manguera Para Inyector de Detergentes Detergente Boquilla de Descarga Regulador Cople de Varilla Conector Rápido Pistola de Riego Varilla Boquilla de Presión Gatillo Boquilla de Cobre Para Detergente Manguera de Alta Presión LANDA PDE • REV. 9/02...
  • Page 24 A pesar de no ser necesario para el servicio de garantía, le solicitamos que registre su unidad para el lavado a presión. Para ello, llene la tarjeta de registro y envíela a vuelta de correo. Para obtener el servicio de LANDA de la garantía, debe hacer llegar el producto a un Distribuidor de LANDA autorizado, con flete prepago, acompañado del comprobante de la compra, dentro del...
  • Page 26 ® WATER CLEANING SYSTEMS 4275 NW Pacific Rim Blvd. • Camas, WA 98607 USA Form #96-620 • Revised 9/02 • Printed in U.S.A. by Landa, Inc., Camas, WA 98607...
