MSB Technology Link DAC III User Manual page 6

plugging its two sockets into these two headers. The board should be oriented so
the writing is in the same direction as on the LINK board. Make sure the pins line
up both up and down and right and left. It is very easy to shift the board one pin
position in any direction. Before seating the board, inspect from all directions to
confirm position. The board can then be pressed down firmly.
S I
WITCH NSTALLATION

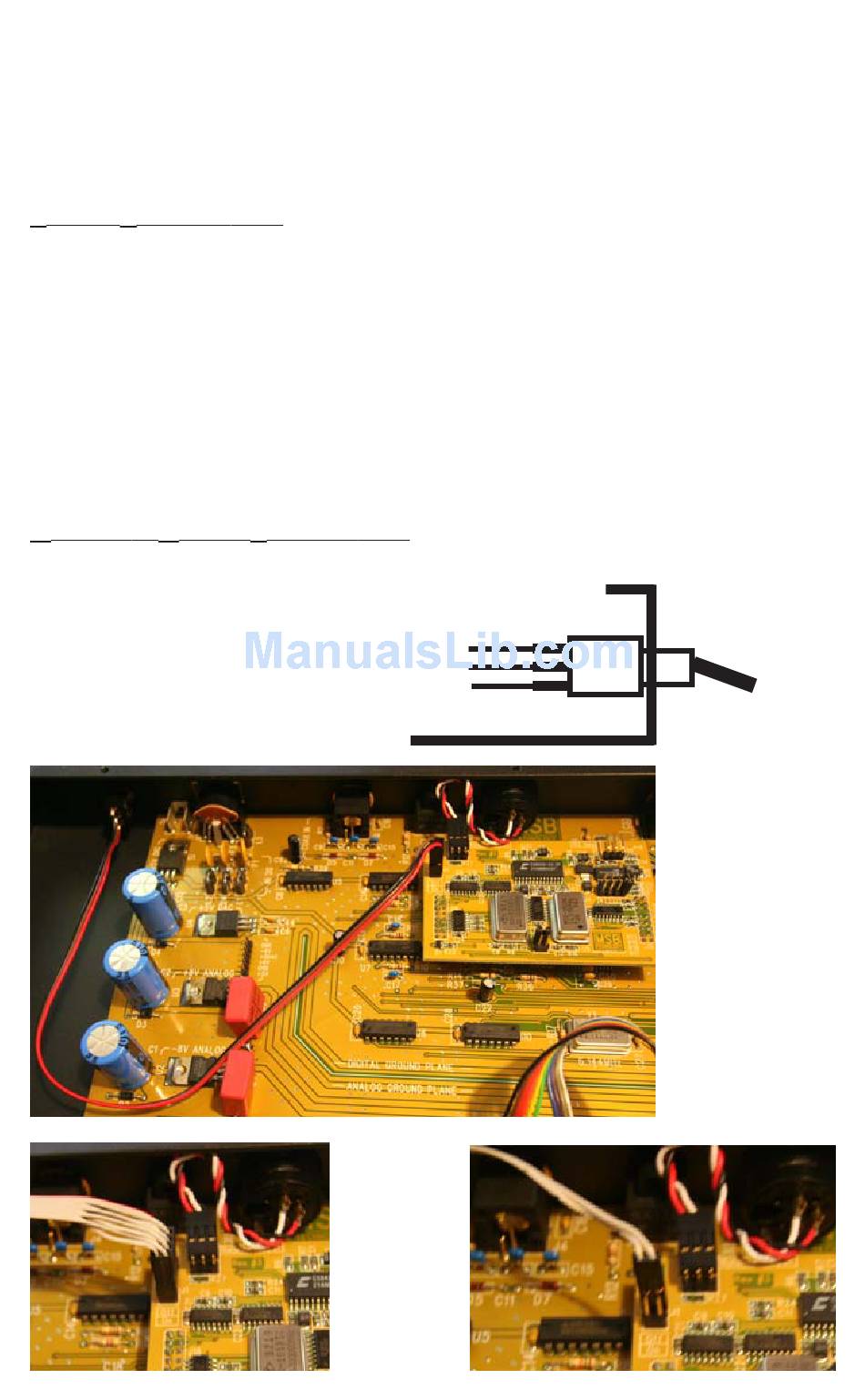

On the back of the LINK III is a 1/4" hole with a plastic plug in it, next to the power
connector. Remove the plastic plug. Install the switch in the hole oriented as
shown. Plug the switch into J1 "Off" on the new Network board. The connector is
oriented in J1 as shown on page 3. Some DACs already have a switch installed. It
is used to change the phase. Unless it is the same as the new switch supplied,
remove it and replace it with the new switch. Jumpers should be installed in the
location the switch was removed from as shown. Select the phase you want with
the jumpers. The switch now is used for upsampling, not phase invert.
A S
LTERNATE WITCH
With different models the switch may
vary as shown. Try the connector dif-
ferent ways until it works.
I
NSTALLATION
wires on top
Black
Brown
Red
6
Upsample
Normal
