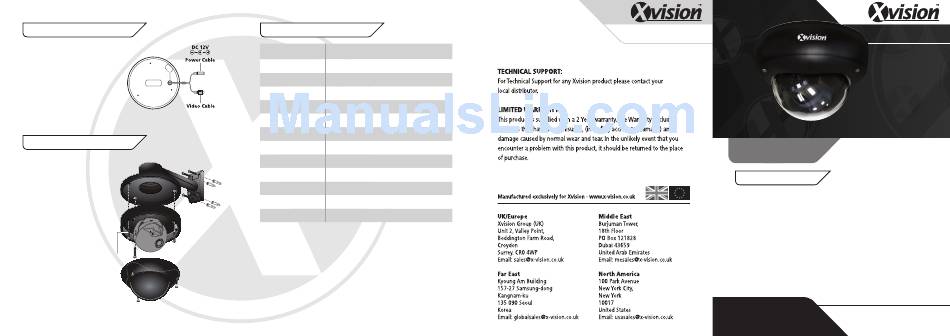

6. Connection

1. Connect the video output
(BNC Connector) to a monitor
or other video device through
a 75 Ohms type coaxial cable.
2. To connect the power source,
insert the DC Power plug into
the DC Jack on the camera's
trailing lead. (as shown in
Figure 5
Figure 5).

7. Optional Wall Bracket

The dome camera can be wall
mounted with an optional
bracket (not supplied) which will
allow the camera to be angled at
over 90°, something that cannot
be done using the standard
3-Axis mechanism. To mount:
1. Attach the camera to the
bracket as shown.
2. Fix the wall bracket to the Fixing
Screws
(x3)
wall surface using the screws
and wall plugs supplied.
3. Make adjustments to the
camera lens and focus once
the camera is in place before
closing and securing the
dome cover to the base. Figure 6
Specifications
Model: VIS338DX-3
Picture Type: Colour
Image Sensor: Sony 1/3" HQ1 Super HAD CCD
DSP: Xvision IXC1HQE
Resolution: 550 TVL
Lens Viewing Angle: 23 to 92°
Minimum Illumination: 0.2 Lux
Audio: No
Operating Voltage: 12V DC 130mA
Suggested Power Supply: 12V DC 300mA
Mounting: Wall/Ceiling
Weatherproofing: Yes
Dimensions: (ØxH) 148x98mm
CCTV
VIS338DX-3
Model:
Colour 550 TVL Vandal Resistant Dome Camera
with Auto Iris Varifocal Lens
Before you begin
z Please unpack the box carefully and identify that all the parts are present.
z The camera is suitable for indoor or outdoor use. Please bear in mind the
following points when choosing a mounting position.
- The camera must be positioned so that it will not point directly into the
sun (sunrise and sunset) or any bright light, as this may cause damage
to the camera.
- Avoid viewing areas where half the area is in bright sunlight and the
other half is dark, such as in the shadow of a building. All types of
cameras have difficulty in 'seeing' with such a large lux level variation.
z Do not cut the camera cables, this will void the warranty.
z Make sure you use only the recommended power supply. Damage caused to
the camera by incorrect voltage or wiring is not covered by the warranty.
