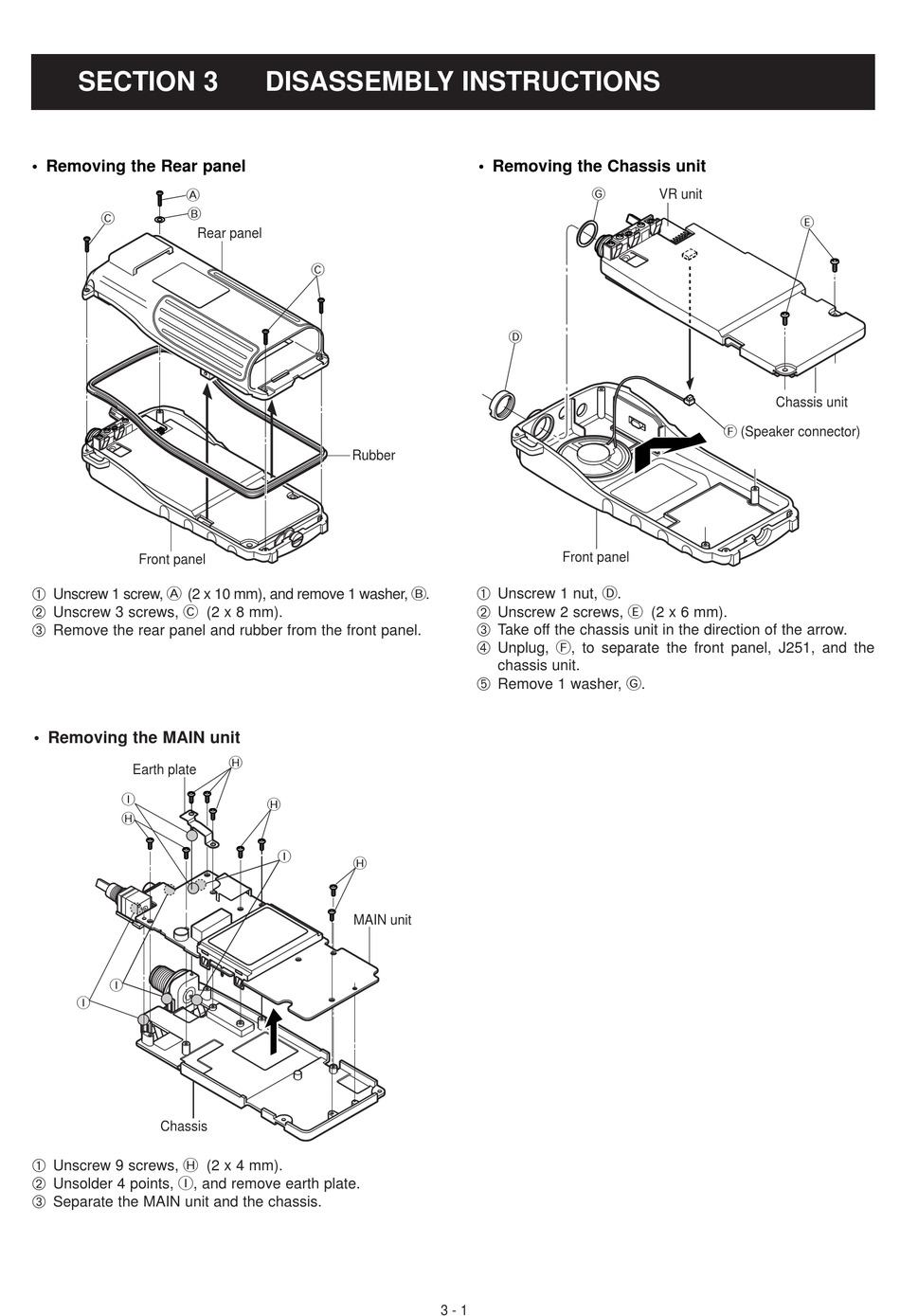

SECTION 3
• Removing the Rear panel
A
B
C
Rear panel
Front panel
¡ Unscrew 1 screw, A (2 x 10 mm), and remove 1 washer, B.
™ Unscrew 3 screws, C (2 x 8 mm).
£ Remove the rear panel and rubber from the front panel.
• Removing the MAIN unit
Earth plate
I
H
I
I
Chassis
¡ Unscrew 9 screws, H (2 x 4 mm).
™ Unsolder 4 points, I, and remove earth plate.
£ Separate the MAIN unit and the chassis.
DISASSEMBLY INSTRUCTIONS
C
Rubber
H
H
I
H
MAIN unit
• Removing the Chassis unit
G
D
Front panel
¡ Unscrew 1 nut, D.
™ Unscrew 2 screws, E (2 x 6 mm).
£ Take off the chassis unit in the direction of the arrow.
¢ Unplug, F, to separate the front panel, J251, and the
chassis unit.
∞ Remove 1 washer, G.
3 - 1
VR unit
E
Chassis unit
F (Speaker connector)
