Icom IC-M2A Service Manual page 23

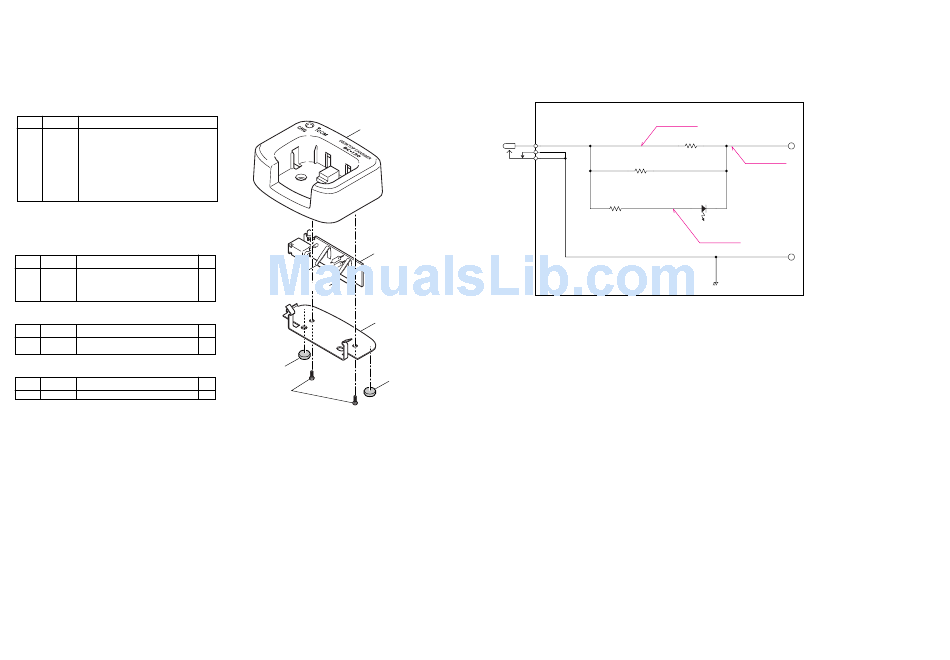

• BC-150 CHARGER PARTS LIST
ELECTRICAL PARTS
[CHARGE UNIT]
REF. NO. ORDER NO. DESCRIPTION
R1 7070001130 RESISTOR 120 ERG2SJ
R2 7070001140 RESISTOR 150 ERG2SJ
R3 7010007100 RESISTOR 1K PSD1/4V
J1 6510023070 CONNECTOR HEC2305-01-250
DS1 5040001390 LED TLG124A
EP1 0910054642 PCB B-5787B
MECHANICAL PARTS
[CHASSIS]
REF. NO. ORDER NO. DESCRIPTION
MP1 8510014350 2523 Case
MP2 8110007680 2523 Cover
MP3 8810008660 Screw B0 3 x 8 NI-ZU (BT)
MP4 8930047830 Leg cushion (C)
[CHARGE UNIT]
REF. NO. ORDER NO. DESCRIPTION
MP1 8930057120 2523 Terminal
MP2 8930057120 2523 Terminal
[ACCESSORIES]
REF. NO. ORDER NO. DESCRIPTION
MP1 8810001460 Screw A0 3.5 x 20 SUS
Screw abbreviations A0, B0, BT: Self-tapping
NI-ZU: Nickel-zinc
SUS: Stainless
MP1(C)
CHARGE unit
QTY.
MP1 (CH)
1
1
MP2 (CH)
2
2
MP2 (C)
QTY.
1
1
MP4 (C)
QTY.
MP3 (C)
2
NOTE: (C) : CHASSIS
(CH): CHARGE UNIT
• BC-150 VOLTAGE DIAGRAM
J1
HV
GND
GND
MP4 (C)
16.4V (No load)
13.0V (Charge)
MP1
R1 120
VCC
16.4V (No load)
8.0V (Charge)
R2 150
DS1 TLG124A
R3 1 k
9.9V (No load)
16.4V (Charge)
MP2
GND
7 - 3
