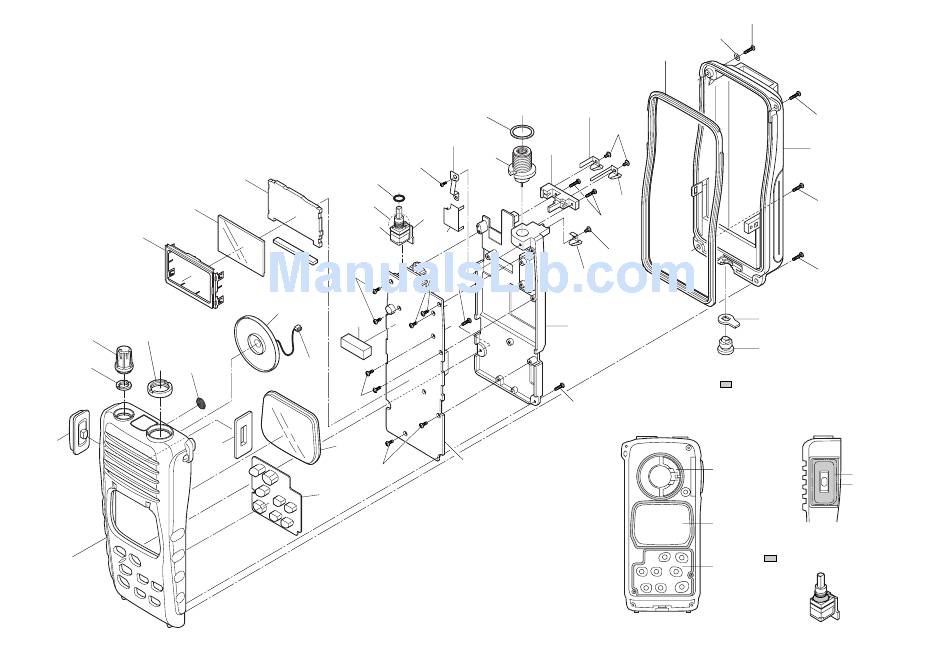

Icom IC-M2A Service Manual page 22

DS360 (M)
MP361 (M)
MP15 (C)
MP12 (C)
MP11 (C)
MP4 (C)
MP6 (C)
NOTE3
MP1 (C)
UNIT abbreviations (C): CHASSIS PARTS, (M): MAIN UNIT, (V): VR UNIT
MP360 (M)
MP10 (C)
NOTE1
NOTE4
R500 (V)
MP39 (C)
EP360 (M)
SP1 (C)
NOTE2
MP362 (M)
W1 (C)
MP39 (C)
MP2 (C)
MP7 (C)
NOTE2
NOTE3
MP39 (C)
MP5 (C)
NOTE2
NOTE1
Once the following parts are removed, a O ring or sealing must be replaced
with new one before reattachement.
7 - 2
MP14 (C)
NOTE1
MP40 (C)
MP32 (C)
J31 (C)
MP41 (C)
NOTE1
VR unit
MP54 (M)
([M2A] only)
MP39 (C)
MP42 (C)
MP42 (C)
MAIN unit
Mother part . . . . . . . . . . . . . . . . . . Daughter part for relayted replacement
J31 (C) Antenna connector . . . . . . MP14 (C) Sealing washer
VR unit . . . . . . . . . . . . . . . . . . . . . MP10 (C) O ring
MP24 (C) Screw . . . . . . . . . . . . . . MP25 (C) Sealing washer
MP24 (C)
MP25 (C)
NOTE1
MP22 (C)
MP34 (C)
MP37 (C)
MP35 (C)
MP33 (C)
MP38 (C)
MP36 (C)
MP31 (C)
NOTE2
The glue must be applied to the
areas when the front panel is
replaced with new one, to ensure
water tightness.
Manufacture : Semedain Co.
Type : Super-X
Speaker
Window
Plate
8-key
Rear view of the front panel
MP23 (C)
MP21 (C)
MP23 (C)
MP23 (C)
MP9 (C)
MP8 (C)
NOTE3
Once the 2497 PTT button (MP6 (C)) or
the 2497 PTT holder is removed, the
glue must be applied between the 2497
PTT button or the 2497 PTT holder when
is removed and 2497 front panel when
2497 button is removed.
Front side Rear side
MP6
MP7
NOTE4
Silicone grease is applied to
area.
