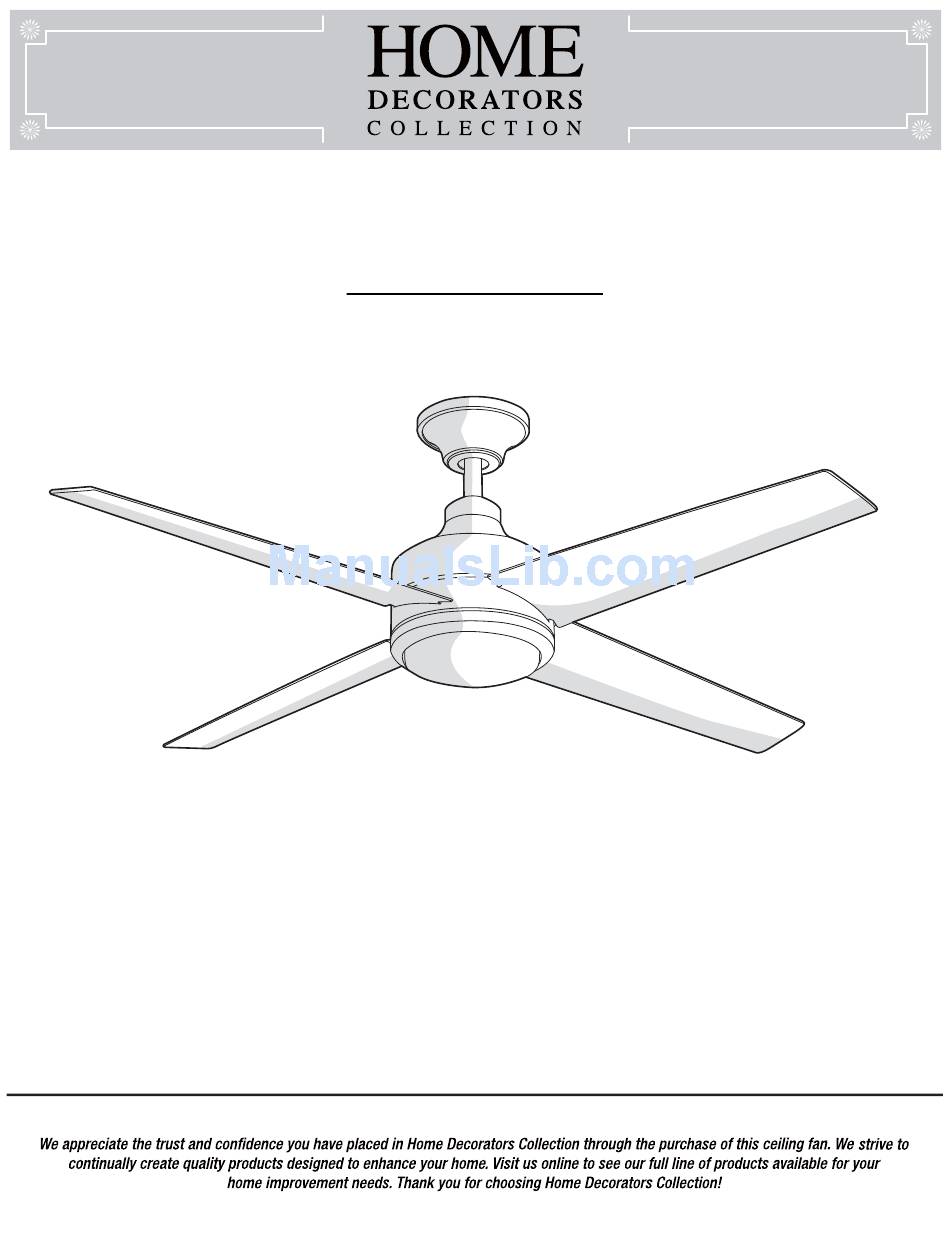

- Page 1 Item #296-347 Model #14725 USE AND CARE GUIDE MERCER 52 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-527-0998 HOMEDEPOT.COM/HOMEDECORATORS THANK YOU THANK YOU...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Remote Control Operating Instructions ........Safety Information ............Installing the Remote Control Holder ........Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Specifications ................Troubleshooting ............Tools Required ................. -
Page 3: Safety Information
Safety Information □ Read and save these instructions. WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid-state fan speed control device. □ To reduce the risk of electric shock, ensure electricity has It will permanently damage the electronic circuitry. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Mounting bracket screw (3/16 in. x 3/8 in.) and lock washer (preassembled) Blade attachment screw (3/16 in. -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade support plate Canopy Light kit mounting plate Canopy bottom cover (preassembled) Light kit Hanger ball/downrod assembly 100 watt JD type halogen bulb Coupling cover Glass shade... -
Page 7: Dual Mounting Instructions
Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades. -
Page 8: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 9: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the clevis pin (KK) and cotter pin (LL), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (MM) from the motor collar. -
Page 10: Close-To-Ceiling Mounting
Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove three of the six collar mounting screws with Remove the canopy ring (B) from the canopy (C). lock washers (PP) (every other one) from the collar on □... -
Page 11: Hanging The Fan
Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box. - Page 12 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. CAUTION: Do not use with a wall light dimmer switch. If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
-
Page 13: Making The Electrical Connections
Assembly — Hanging the Fan (continued) Making the electrical connections □ If your outlet box (TT) has a ground wire (HHH) (green NOTE: The fan must be installed at a maximum distance of or bare copper) connect it to the fan ground wires (III); 20 feet from the remote control for proper signal transmission otherwise connect the hanger ball/downrod assembly between the remote control and the fan's receiving unit. - Page 14 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Locking slots of the canopy (C) are provided WARNING: Make sure the tab on the mounting bracket (A) only as an aid to mounting. Do not leave the fan assembly properly sits in the groove in the hanger ball (E) before unattended until all four canopy screws (BB) are engaged and attaching the canopy (C) to the mounting bracket (A) by...
-
Page 15: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the Fan Blades WARNING: To reduce the risk of personal injury, do not bend the blades (H) while installing, balancing the blades (H), or cleaning the fan. WARNING: Remove the three rubber packing mounts (LLL) from the fan motor assembly (G) and discard prior to attaching the blades (H). -
Page 16: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the light kit to plate to the mounting ring the light kit mounting plate □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (RR) from the mounting ring (MMM) and power by turning off the circuit breaker or removing the fuse loosen the other two screws. -
Page 17: Attaching The Glass Shade
Assembly — Installing the Light Kit (continued) Finishing the light kit and attaching the glass shade CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. -
Page 18: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS □ Install the 12V MN21/A23 battery (GG) (included) into the remote control (FF). To prevent damage to the remote control (FF), remove the battery if not used for long periods. □ Restore power to the ceiling fan and test for proper operation. HI , MED, LOW buttons: set the fan speed. -
Page 19: Reverse Switch Operating Instructions
Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. -
Page 20: Troubleshooting
Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 13. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □... -
Page 21: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket Balance kit Canopy ring Receiver Canopy Remote control Canopy bottom cover 12V MN21/A23 battery Hanger ball/downrod assembly Remote control holder Coupling cover Remote control holder mounting screw Fan motor assembly Remote control holder plug Blade Clevis pin... - Page 22 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-527-0998 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. 14725000001-C...
Need help?
Do you have a question about the Mercer 52 inch and is the answer not in the manual?
Questions and answers

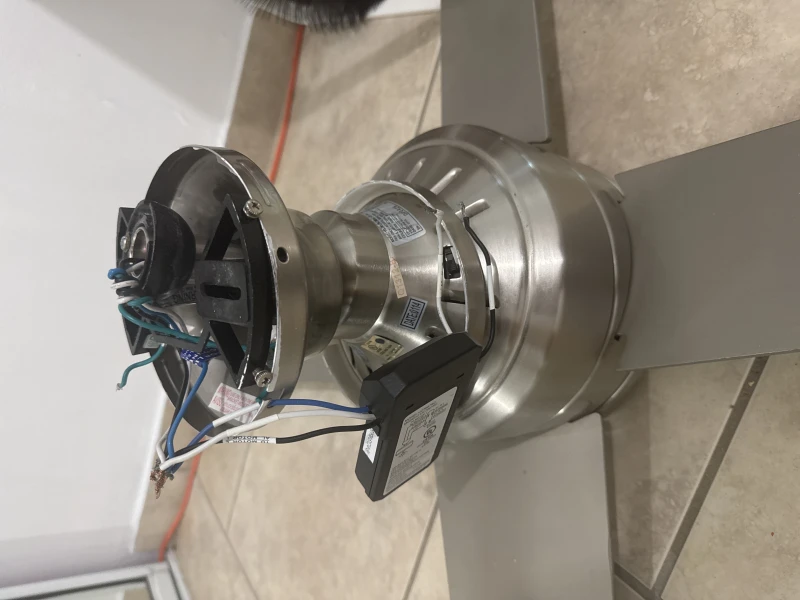

Hi. I need the remoted control and 100 watts bulb replacement. Where i can obtain it.
