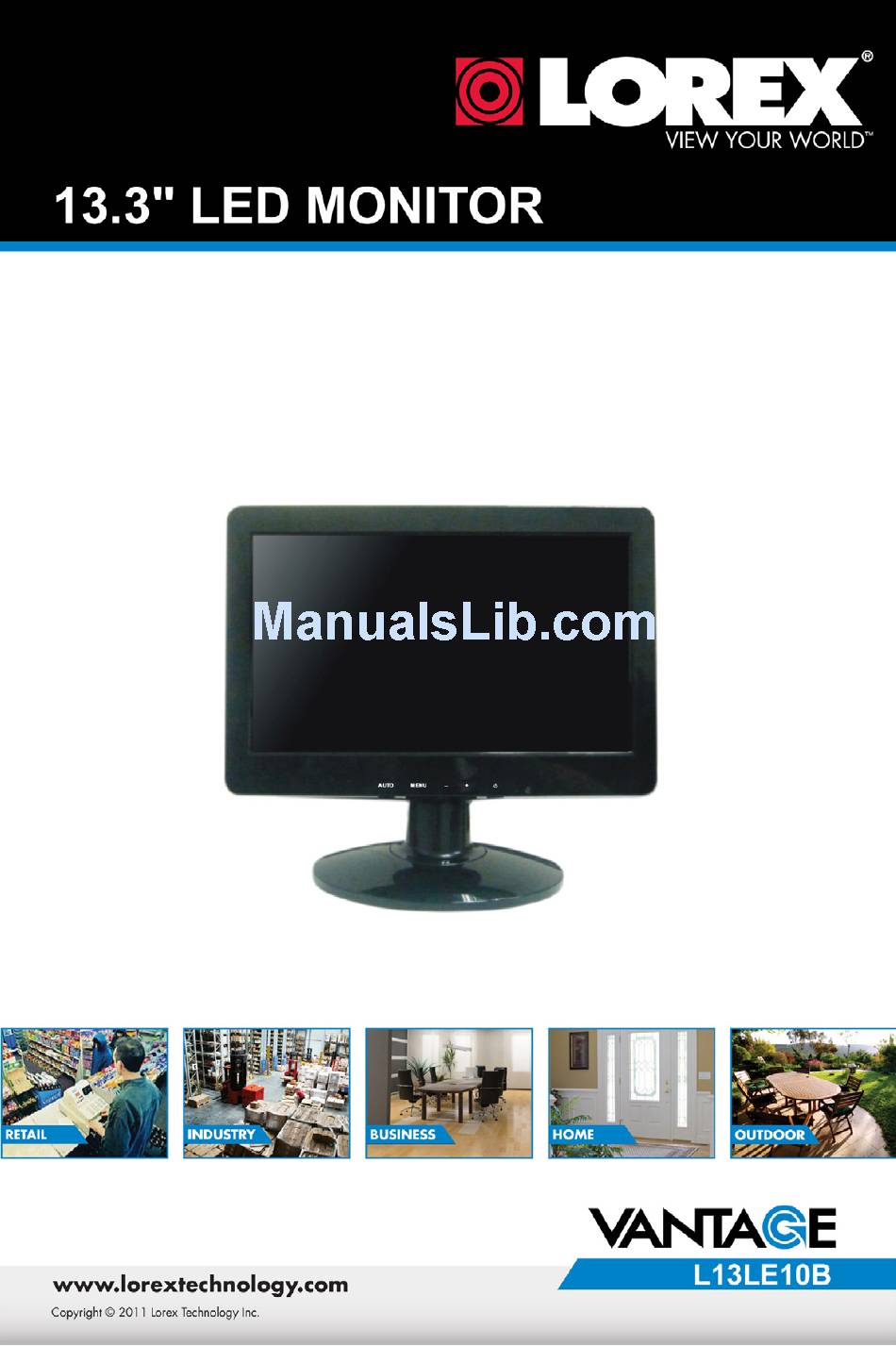

Page 1: Instruction Manual
Instruction Manual English Version 2.0... - Page 2 IMPORTANT INSTRUCTIONS SAFETY INSTRUCTIONS Warning – To reduce the risk of fire, electric shock, or serious personal injury: Do not use this product near water; e.g. near a bathtub, washbowl, kitchen sink, • laundry tub, in a wet basement, near a swimming pool, or the like. Situate this product away from heat sources such as radiators, heat registers, stoves, or •...
-
Page 3: Basic Connection
BASIC CONNECTION GENERAL PARTS AND OPERATIONS 1. AUTO button - Press this button to 4. [ + ] button - Press this button to enter automatically adjust the screen display; BRIGHTNESS setting page directly. Within in menu setting page, press this button to the menu, press [ + ] to move right or return to previous menu page. -
Page 4: Menu Operations
MENU OPERATIONS Press the MENU button to enter the menu setting page as shown below: Use the [ - ] or [ + ] button on the unit to select submenus and press the [MENU] button to • enter the submenu. (In this submenu page, you can press the [ - ] or [ + ] button to select different submenu page as desired.) Press the [MENU] button again to enter next menu setting page you select. - Page 5 3. TRACKING 3.1 HORIZONTAL - This item is used to move the screen display to the left or right. - The HORIZONTAL can be adjusted from 0-100. 3.2 VERTICAL - This item is used to move the screen display up or down. - The VERTICAL can be adjusted from 0-100.
-
Page 6: Specifications
MAINTENANCE Be sure to press POWER to set the player to the standby mode and disconnect • the AC adaptor before maintaining the monitor. Wipe the monitor with a dry, soft cloth. • If the surfaces are extremely dirty, wipe clean with a cloth which has been dipped •...
