Lorex L9L10B Quick Start Manual

Contents

• 9" LCD Monitor
• Monitor Stand
• Power Adapter

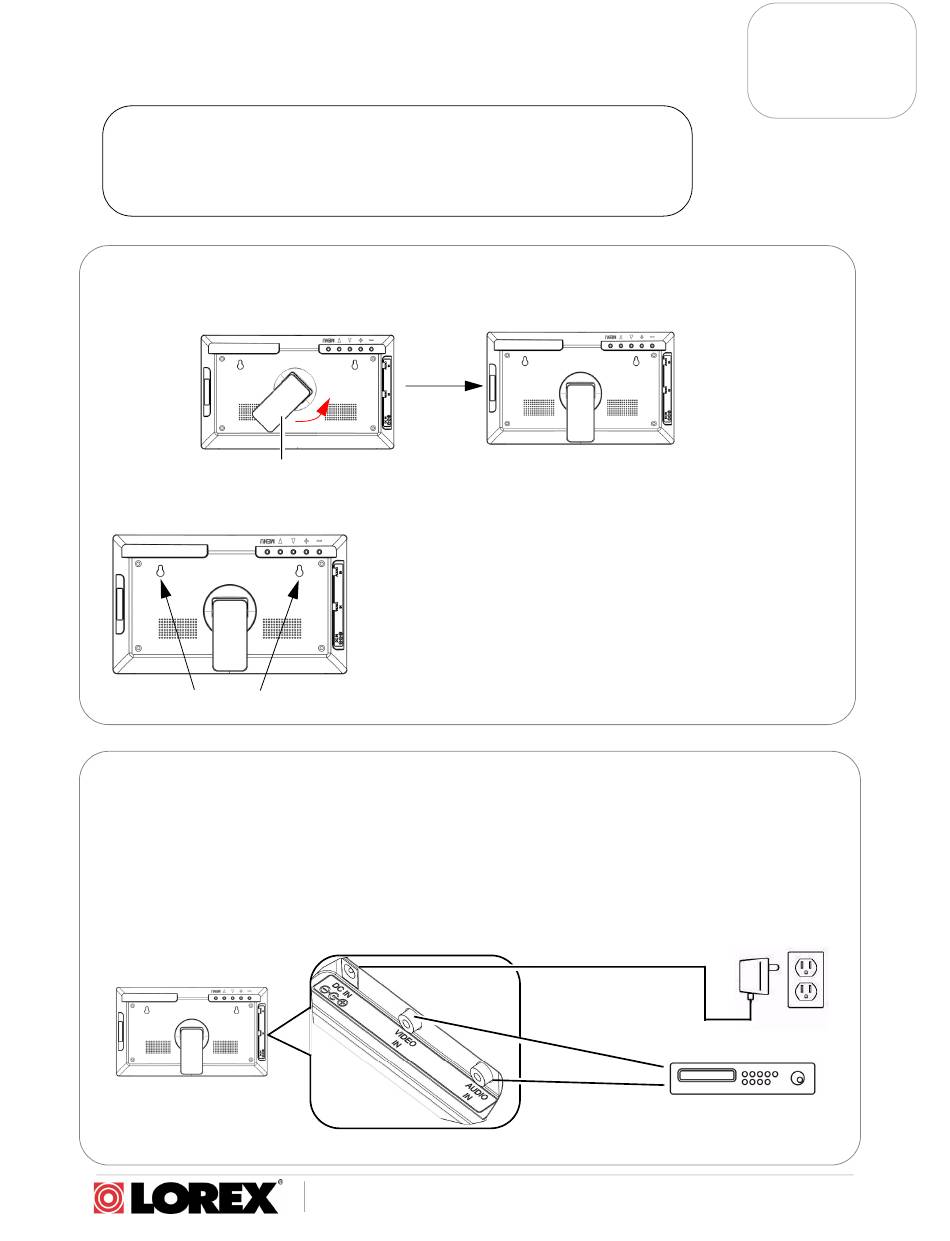

Step 1: Attach stand to LCD monitor

Install the monitor stand into the round groove in the back panel of the monitor (Figure A) . Twist
the stand counterclockwise until you hear a click to lock it in place.
Figure A
Monitor Stand

Optional: Wall mounting the LCD monitor

Wall mount slots

Step 2A: Connecting the monitor to a DVR

a. Connect the RCA video plug (yellow) into the VIDEO IN jack of the monitor (Figure C).
Connect the BNC end of the cable into the DVR's Monitor Out or Spot Out port.
:
OPTIONAL Connect the RCA audio cable (white) into to the AUDIO IN port of the monitor.
Connect the other end of the audio cable into the DVR's audio port.
b. Connect the power adapter plug into the DC IN port (Figure C) of the monitor. Connect the
power adapter to a wall socket. The LCD monitor will turn on by itself.
Quick Start Guide
(Model: L9L10B)
• RCA cable with BNC adapter (attached)
• Mounting Kit
• Mounting Template
To wall mount the LCD monitor:
1. Mark the wall using the included mounting template to determine
where to secure the mounting screws.
2. Secure screws 3/4 of the way into the wall.
3. Align the LCD monitor with the screws and push down to secure.
Figure C
www.lorextechnology.com
Figure B
Power cable
Video (yellow)
Audio (white)
DVR
EN
1
