Page 1: User Manual

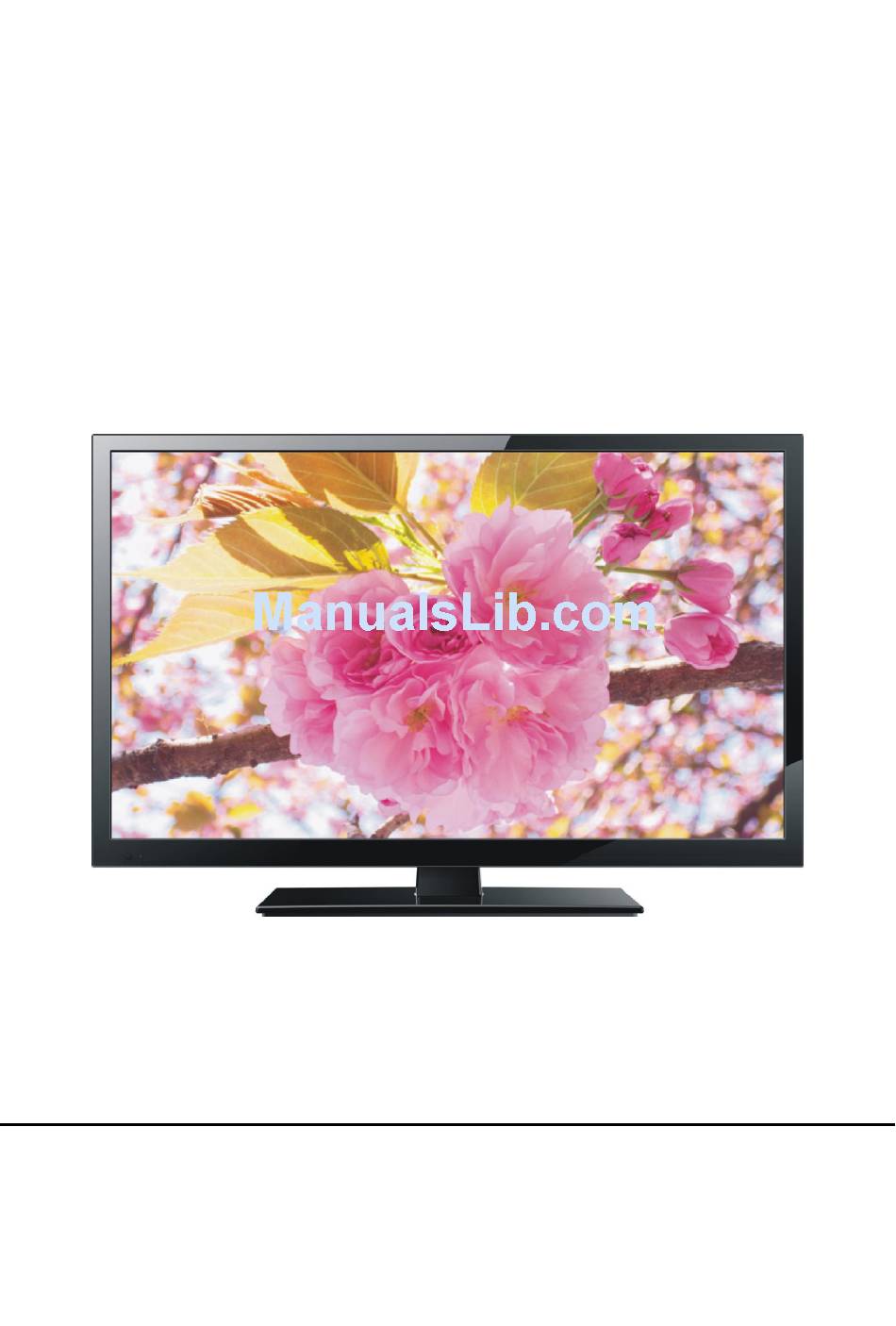

24” Wide Screen LED Monitor with HDMI USER MANUAL L24LE11B_MANUAL_EN_R1 Please read this manual carefully before using, and keep it for future reference. -
Page 2: Table Of Contents
TABLE OF CONTENTS GETTING STARTED Monitor Stand Assembly........................1 Basic Connection.........................2-3 Wall Mounting..........................3 OPERATIONS General Parts and Operations.......................4 Menu Operations..........................5-8 FOR REFERENCE Maintenance.............................9 Specifications............................9 Accessories............................9... - Page 3 Important Instructions SAFETY INSTRUCTIONS Warning – To reduce the risk of fire, electric shock, or serious personal injury: This product should not be exposed to dripping or splashing. Ensure that no objects filled with ● liquids, such as vases, are placed on or near the apparatus. Situate this product away from heat sources such as radiators, heat registers, stoves, or other ●...
-
Page 4: Monitor Stand Assembly
Monitor Stand Installation Assemble the monitor stand before using the monitor. To assemble the monitor stand: 1. Lay the monitor face on a clean, soft surface. 2. Align the openings on the monitor stand with the screw holes on the base of the monitor. -
Page 5: Basic Connection
BASIC CONNECTION Connect to power source AC adaptor To power input To power outlet Built-in Built-in speakers speakers PC Connection Audio cable (optional) Use the included VGA cable to connect the monitor to your DVR, NVR or PC. VGA cable (included) Back of DVR, NVR or PC... -
Page 6: Wall Mounting
HDMI Connection Headphone cable (optional) HDMI cable (included) Use HDMI cable to connect the unit to your DVR, NVR, PC or other device to receive high-definition multimedia signal. Back of DVR, NVR or PC Wall Mounting Contact a professional for assistance when wall mounting your monitor. We are not ●... -
Page 7: General Parts And Operations
General Parts and Operations 1. POWER indicator LED- When the unit is in standby mode, the indicator glows red; when powered on, the indicator glows blue. 2. + button- Press this button to increase the volume level; to adjust the value in menu setting page;... -
Page 8: Menu Operations
Menu Operations Use the included VGA cable to connect this Monitor with your PC and power on both of ● them. Then press the MENU button to enter the menu setting page. Press + / - button to select SCREEN/PICTURE/SOUND/TIME/OPTION submenus ●... - Page 9 2. PICTURE 2.1 Picture Mode Available options: User, Dynamic, Standard, Mild. NOTE: The value of Contrast, Brightness, Color, and Sharpness is adjustable only when Picture Mode is User. 2.2 Contrast The value of contrast can be adjusted from 0-100. 2.3 Brightness The value of brightness can be adjusted from 0-100.
- Page 10 3. SOUND 3.1 Sound Mode Available options: Standard, Music, Movie, Sports, User. NOTE: The value of Treble and Brass is adjustable only when Sound Mode is User. 3.2 Treble Adjust the level of higher-pitched sounds from 0-100. 3.3 Bass Adjust the level of lower-pitched sounds from 0-100. 3.4 Balance Adjust the audio output between left and right speakers from -50 to 50.
- Page 11 4.1 Sleep Timer Set the automatic sleep time in standby mode. Available options: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min. 4.2 Auto Standby Set the auto standby duration. Available options: Off, 3H, 4H, 5H. 4.3 OSD Timer Set the length of time that the OSD (on screen display) menu remains on the screen. Available options: 5S, 10S, 15S, 20S, 25S, 30S.
-
Page 12: Maintenance
Maintenance Be sure to press POWER to set the player to the standby mode and disconnect the AC ● adaptor before storing the monitor. Wipe the monitor with a dry, soft cloth. ● If the surfaces are extremely dirty, wipe clean with a cloth which has been dipped in a ●...
