© 2006 Lorex technology Inc.
Lorex Monitor Remote Access Setup Guide
Dlink DI-624
Date: 25 May 2005
Step 1: Before you Start

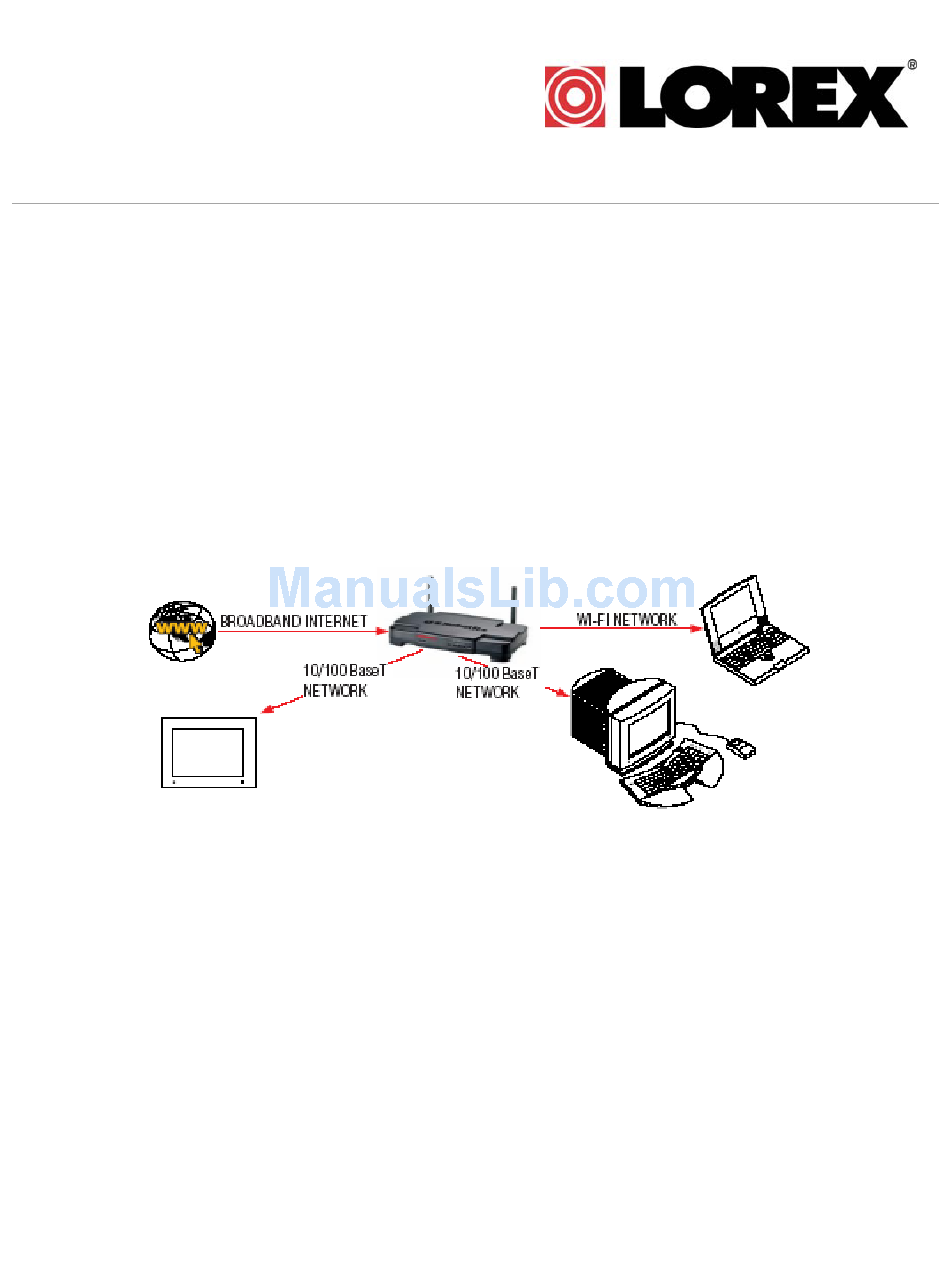

This section will help you in setting up and configuring your Lorex Monitor(s) and PC(s) to be able to view the
video images from remote locations on the Internet. We assume that you already have the monitor hooked up
and working and that you can view video from within your Local Area Network (LAN). If not, please consult the
Quick Start guide or the Lorex Manual before you continue with remote access setup.
This document will help you do the following;
•
Configure your router to enable access from outside the LAN
•
Register for the Dynamic Domain Name Service (DDNS) from Lorex technology Inc.
•
Configure the Lorex Monitor to operate with DDNS
•
Set up a password to secure your monitor
•
Configure the Lorex Player to reach the monitor using the DDNS.
Step1: Configure your router to enable access from the Internet
To view video images remotely across the Internet involves setting up your broadband router. The example
shown here uses the DLink-624 Wireless Broadband Router. For routers other than the example shown, please
consult your router manual and/or your router manufacturer's website for technical support.
Step 1A: Log into your Router's Administration Server
Use a web browser on a computer that is connected to the LAN side of the router to access your broadband
router. Typically this will be at an IP Address such as 192.168.1.1 or maybe 192.168.0.1. Consult your router
manual for exact details. Enter the username and password for your particular router – by default the DLink-624
uses 'admin' as the username and the password is blank.

Advertisement

loading
Need help?

Need help?

Do you have a question about the L14Q684C and is the answer not in the manual?

Questions and answers

Related Manuals for Lorex L14Q684C

Summary of Contents for Lorex L14Q684C

  • Page 1 Step 1: Before you Start This section will help you in setting up and configuring your Lorex Monitor(s) and PC(s) to be able to view the video images from remote locations on the Internet. We assume that you already have the monitor hooked up and working and that you can view video from within your Local Area Network (LAN).
  • Page 2 In the case of the Dlink-624, click the 'DHCP' button and then click on the DHCP Server 'Enabled' radio button. From the DHCP client dropdown list select the entry that corresponds to the Lorex Monitor and click on the...
  • Page 3 (i.e. does not fall within the Starting and Ending IP Address). Use the new address in the following setup. If you do re-assign the IP address, remember to also set it in the Lorex Monitor using the Lorex Utility (see the manual on how to do this).
  • Page 4 'Apply' button. This will create a data path that the Lorex Player will use to access the video stream and will allow you to view the video images. If you also want to access the Lorex Monitor using a web browser, no changes are required.
  • Page 5 Select the ‘Lorex IP Edit’ option from the screen. (If it does not autostart you can manually run the ipedit.exe program found in the Lorex Utility directory on the CD). This screen will display the IP address of the Lorex Monitor. Click on the item in the left-hand pane and the...
  • Page 6 ‘Submit’. For example, to enable access port 9002, enter this in the HTTP Port2 field and click 'Submit'. In order to use the Lorex technology Inc. DDNS service you must have signed up with the Lorex technology Inc. network in step 2 above.
  • Page 7 The Dynamic DNS settings must be entered as described in the confirmation e-mail. When done, click on the 'Submit' button at the bottom of the page. Note that IP Address updates do take a few minutes to propagate, so allow about 15 minutes after setting up the Lorex Monitor's DDNS before expecting to use the system.
  • Page 8 The connection that you currently have is suitable for use on a private Local Area Network. If you are concerned that others can get access to your Lorex Monitor, you must enable password protection as follows; In the left-hand panel, click on the 'User' option. The following screen will appear;...
  • Page 9 © 2006 Lorex technology Inc. Step 3C: Setting up an alternate port To set an additional port for accessing the Lorex Monitor, click on the 'System' link. The following screen will appear; Enter the alternate port into the 'Http port 2' field, select the 'Reboot' option and click on the 'Change' button.
  • Page 10 The connection that you currently have is suitable for use on a private Local Area Network. If you are concerned that others can get access to your Lorex Monitor, you must enable password protection as follows; In the left-hand panel, click on the 'User' option. The following screen will appear;...
  • Page 11 © 2006 Lorex technology Inc.. Enter a name that indicates that this is for Internet access, and define the cameras exactly as before; In the address field, enter the URL as it is specified in the DDNS setup e-mail. Typically, this will be in the format <MAC>.lorexcctv.net.
  • Page 12 © 2006 Lorex technology Inc. Define the camera, as before, by clicking the 'New' button, and when done click the 'Finish' button. Start the video by double-clicking on the camera icon and you will be able to view the video as before from...
