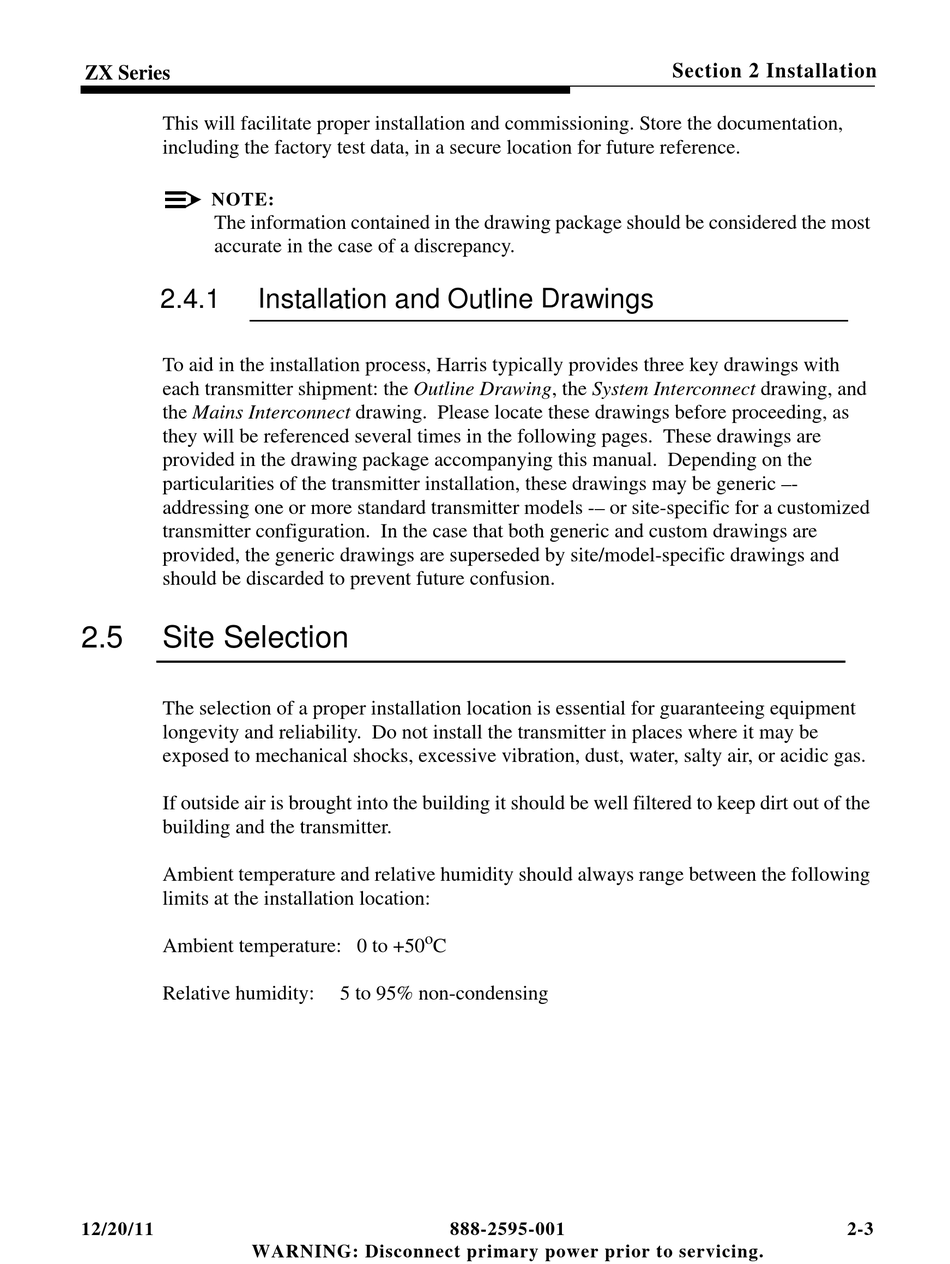

ZX Series
This will facilitate proper installation and commissioning. Store the documentation,
including the factory test data, in a secure location for future reference.
NOTE:
The information contained in the drawing package should be considered the most
accurate in the case of a discrepancy.
2.4.1

Installation and Outline Drawings

To aid in the installation process, Harris typically provides three key drawings with
each transmitter shipment: the Outline Drawing, the System Interconnect drawing, and
the Mains Interconnect drawing. Please locate these drawings before proceeding, as
they will be referenced several times in the following pages. These drawings are
provided in the drawing package accompanying this manual. Depending on the
particularities of the transmitter installation, these drawings may be generic –-
addressing one or more standard transmitter models -– or site-specific for a customized
transmitter configuration. In the case that both generic and custom drawings are
provided, the generic drawings are superseded by site/model-specific drawings and
should be discarded to prevent future confusion.
2.5

Site Selection

The selection of a proper installation location is essential for guaranteeing equipment
longevity and reliability. Do not install the transmitter in places where it may be
exposed to mechanical shocks, excessive vibration, dust, water, salty air, or acidic gas.
If outside air is brought into the building it should be well filtered to keep dirt out of the
building and the transmitter.
Ambient temperature and relative humidity should always range between the following
limits at the installation location:
Ambient temperature: 0 to +50
Relative humidity:
12/20/11
WARNING: Disconnect primary power prior to servicing.
o
C
5 to 95% non-condensing
888-2595-001
Section 2 Installation
2-3
