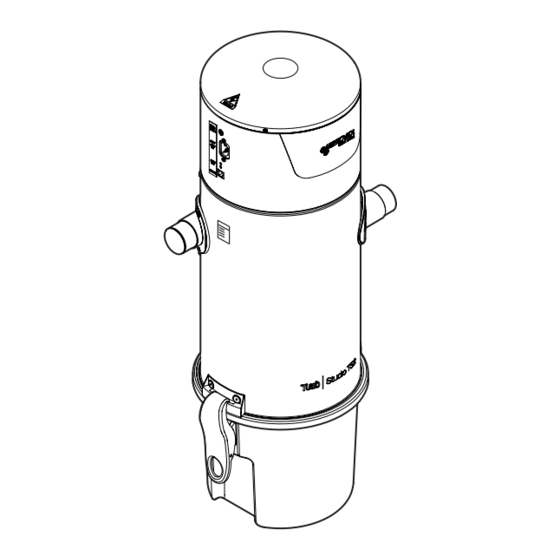

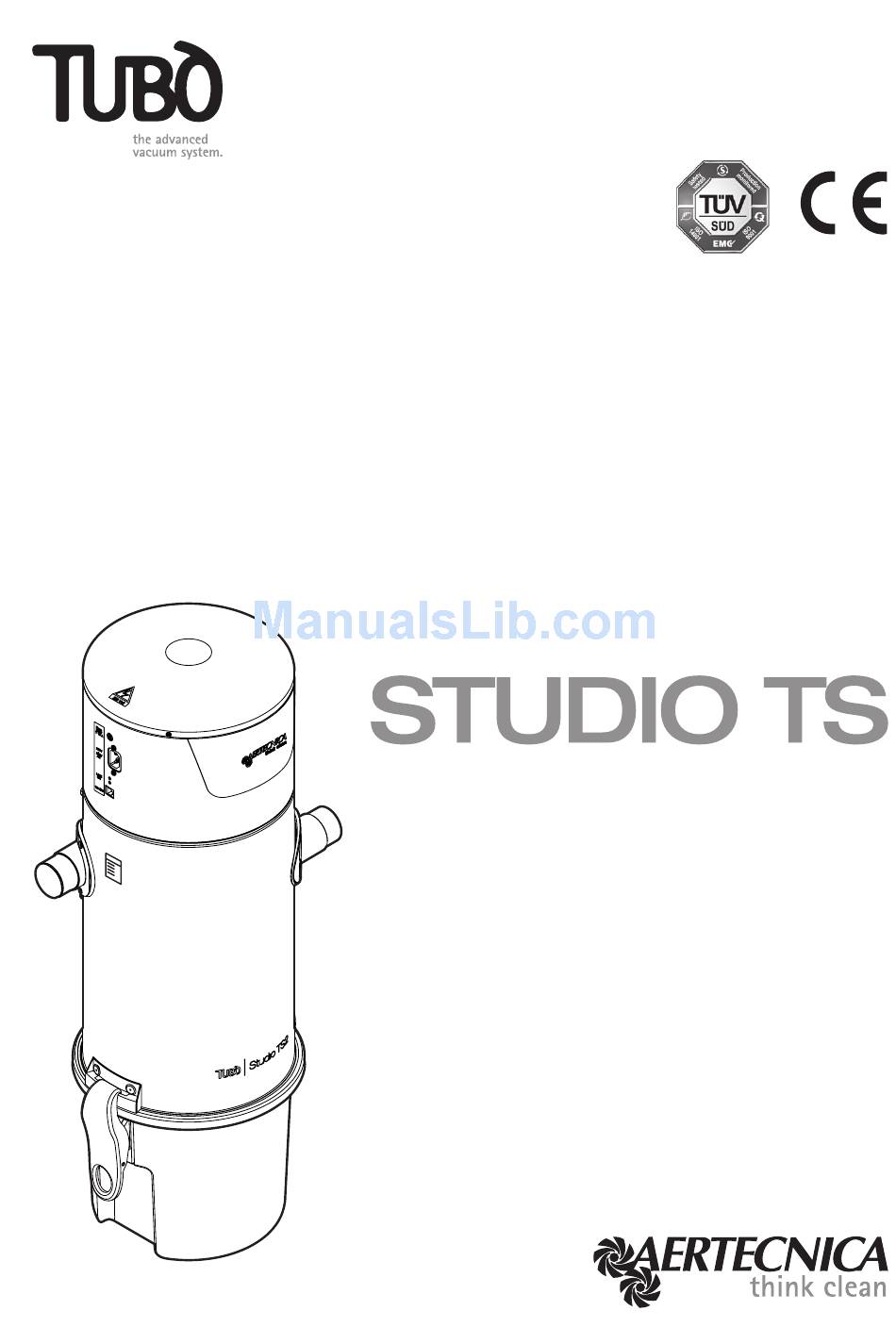

- Page 1 USE AND MAINTENANCE MANUAL CENTRAL POWER UNIT...
-
Page 2: Table Of Contents
USE AND MAINTENANCE MANUAL INDEX MAINTENANCE GENERAL INFORMATION Container emptying General warnings Filter cartridge replacement Warranty english Filter cartridge regeneration Safety Central power unit disposal Certifications Central power unit inspection Identification Troubleshooting Manufacturer Identification plate TUBÒ system description Part description Technical features Handling the packaging Opening the packaging... -
Page 3: General Warnings
Warranty conditions for EEC countries The installation, user and maintenance manual is an Aertecnica guarantees the proper operation of the purchased integral and essential part of the central power unit central power unit for a 24 month period starting from the and must be read carefully as it contains important documented purchase date. - Page 4 When replacing the central power unit’s spare parts it is operators who are sensitive to the collected recommended to use original spare parts; AERTECNICA dust. declines all liability concerning decreased performance or damage to the central power unit due to the use of non-original spare parts.
-
Page 5: Identification Plate
The purchased central power unit is the main component 2-3 times a year; see paragraph CONTAINER EMPTYING). of TUBÒ, AERTECNICA’s advanced vacuum system. The filter cartridge should be replaced with a new one every 2-3 years (based on its use; see paragraph FILTER The TUBÒ... -
Page 6: Part Description
PART DESCRIPTION " #" english #& #& STUDIO TS2 STUDIO TS4 & Legend 10 - Fuse 1 - Sound-proofed motor chamber 11 - Filter cartridge 2 - Electric motor 12 - Fixing Knob 3 - Motor air intake 13 - Fixing bracket 4 - Dual right/left dust inlet 14 - Locks lever 5 - Air Exhaust line (only TS4) -
Page 7: Technical Features
TECHNICAL FEATURE STUDIO TS1 STUDIO TS2 STUDIO TS4 Model Power supply Volt (Vac) 220/240 220/240 220/240 Motor power Watts (W) 1.260 1.600 1.650 Frequency 50/60 50/60 50/60 Motor rpm 43.507 46.480 31.014 Turbine stages n° SOFT START starting Socket power supply Volt (Vcc) Vacuum power Air Watts... -
Page 8: Foreseen Use
2-3 years or immediately TYPE 1: hose with an activator union. if it breaks. The central power unit turns on when the union (B) is When replacing spare parts, use original Aertecnica inserted in the vacuum socket (A). spare parts. INCORRECT USE TYPE 2: hose with a switch. -
Page 9: Positioning The Central Power Unit
The 220/240 power supply line and the vacuum CENTRAL POWER UNIT POSITIONING socket consent line for activating the centralised The central power unit is installed in service rooms (for vacuum system must be prepared near the central example, store-rooms, garages, cellars) that are aired power unit. - Page 10 BRACKET FASTENING - WITH SCREW ANCHORS M6 Ø12 - WITH WALL STIRRUP Drill. Using a water level, check that the fixing is level Fix the stirrup to the wall with the wall. - Shift the locking lever - Pull off the support from the guides - Fit the vibration blocks to the support english - WITH WALL STIRRUP...
- Page 11 CONNECTION DUST INLET LINE All of the central power units have a dual dust inlet to permit the connection of the socket line hose on both sides of the central power unit, making installation easier. Select the most convenient central power unit dust inlet to connect the dust inlet line Check that the dust inlet not in use is closed.
-
Page 12: Electrical Connection
If the power supply cable is damaged, it with the central power unit . must be replaced by AERTECNICA or its Technical Service Centre or in any case by a CONNECTION OF THE CENTRAL POWER UNIT TO THE... - Page 13 3 - Empty the dust container MAINTENANCE Careful maintenance prolongs the life-time of the central power unit and guarantees better performance. NOTE Before starting with any maintenance operation, disconnect the central power unit from the power supply. The central power unit must not be operated without the lter cartridge inserted.
-
Page 14: Filter Cartridge Replacement
NOTE The central power unit must not be operated without the lter cartridge inserted. Failure to observe this rule could cause damage to the central power unit motor. USE ONLY ORIGINAL AERTECNICA SPARE PARTS User and maintenance manual Maintenance Maintenance... - Page 15 Failure to observe this rule could cause damage to the central power unit motor. USE ONLY ORIGINAL AERTECNICA 4 - Make sure that there are not any tears or cuts on the SPARE PARTS cartridge walls. In this case the damaged cartridge must...
- Page 16 Compare value 2 with the vacuum value indicated in the technical features table for the central power unit model that was purchased. Check that the difference between the two values does not exceed 10% of the table value. If the value is higher, contact the Aertecnica Service Centre. User and maintenance manual...
-
Page 17: Troubleshooting
2 -Insert the vacuum gauge (AT010) in the socket adjacent to the one occupied by the hose; if the vacuum value is correct (RANGE between 100 and 150 mbar) the hand will point to the green zone. In this case, the test is positive. Otherwise, contact the Aertecnica Service Centre.
