Summary of Contents for AERTECNICA TUBO PERFETTO INOX TXA

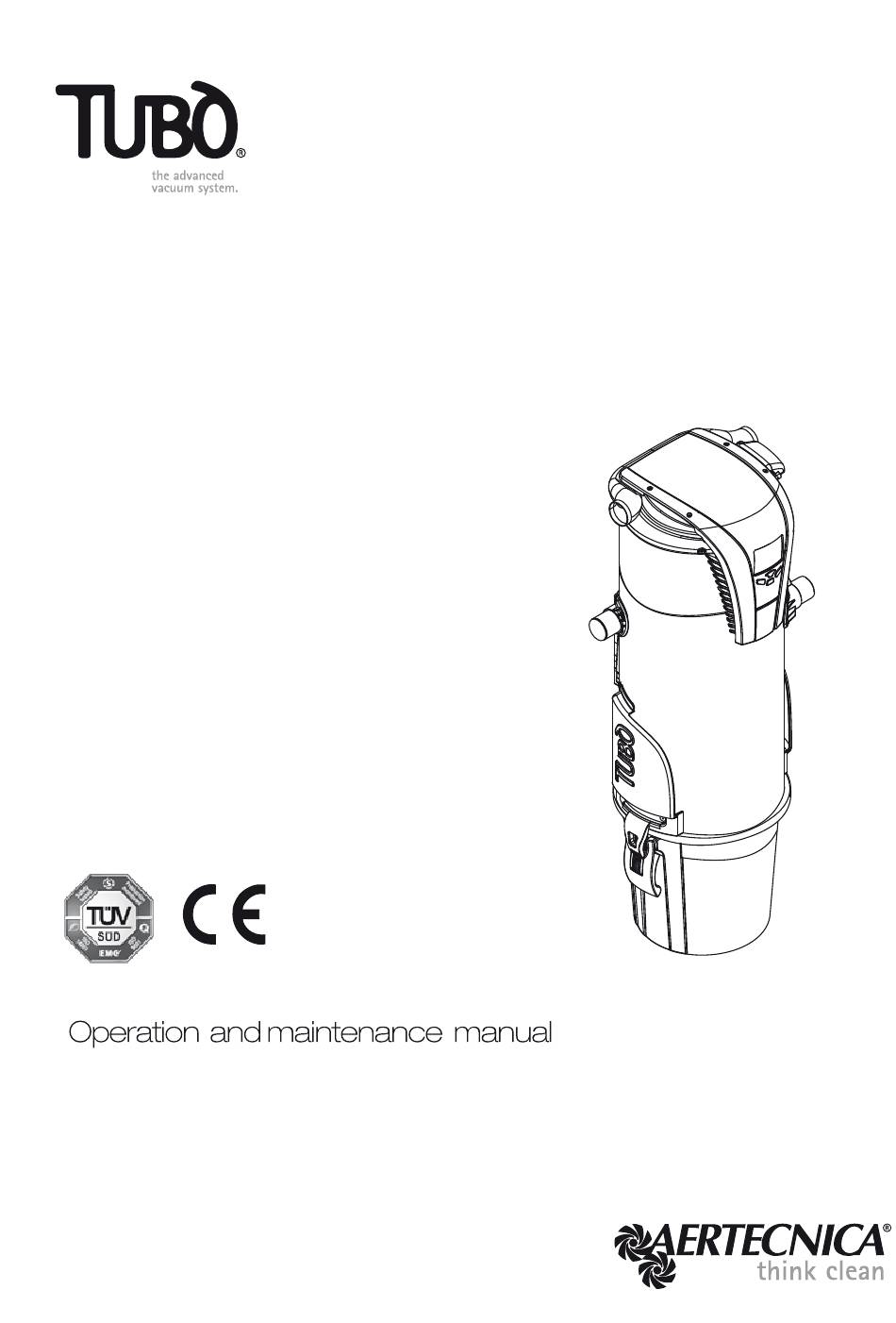

- Page 1 Central power unit PERFETTO INOX TXA PERFETTO TPA PERFETTO TP CLASSIC TC...
- Page 2 Index GeneRAL InFORMATIOn General warnings Electric motor air intakes Warranty TUBÒ System electrical connection Control panel with Safety Certifications AVI display and keyboard Identification Control panel operation with Manufacturer AVI display Identification plate AVT control panel TUBÒ system description AVT control panel functioning Part description Central power unit inspection Technical features...
- Page 3 (invoice or fiscal receipt), the 24 month incurring any obligation to third parties. period will refer to the date it was sold by AERTECNICA. No part of this manual may be reproduced, copied or distributed in any manner without written...
- Page 4 Aertecnica S.p.A is a company certified with: When replacing the central power unit's spare parts it Quality system is recommended to use original spare parts; Aertecnica UNI EN ISO 9001 declines all liability concerning decreased performance Environmental management...
- Page 5 The purchased central power unit is the main component The system can reach all areas of the home, both of TUbò, Aertecnica's advanced vacuum system. english inside as well as outside depending on the position of the vacuum sockets installed in the building. The The TUbò...
- Page 6 part Description 3 4 5 english PERFETTO INOX TXA, TPA AND TP LINE 1 - Dual right/left air exhaust 2 - Motor air intake (excluding mod. PERFETTO TX1A, TP1A and TP1) 3 - Sound-proofed motor chamber CLASSIC TC LINE 4 - Electric motor 1 - Dual right/left air exhaust 5 - Temperature sensor 2 - Motor air intake (mod.
- Page 7 technical features Perfetto INOX TXA Perfetto TPA Classic TC Line TX1A TX2A TX3A TX4A TP1A TP2A TP3A TP4A Model Power supply Volt (Vac) 220/240 220/240 220/240 220/240 220/240 220/240 220/240 220/240 220/240 220/240 220/240 220/240 Motor power Watts (W) 1.260 1.600 1.350 1.590...
- Page 8 - Never leave the hose and cleaning accessories Aertecnica sockets. The system must only be used by a connected to the system unattended whilst the central single operator to only vacuum dust or minuscule solid power unit is on.
- Page 9 NOTE With socket models Air Active, Open and the NEW AIR sockets with a microswitch (NA699) the central power unit turns on when the socket door is opened. built-in vacuuM socket The models in the PERFETTO TXA, TPA and TP line have a built-in vacuum socket (1).
- Page 10 The 220/240 power supply and the socket activation box contains the warranty voucher with the coupon to line must be near to the central power unit in order to be filled out completely and resent to Aertecnica (see activate the vacuum cleaning system. WArrAnTy paragraph).
- Page 11 centRal poWeR Unit inStallation alloWanceS The following table specifies the main reference allowances for correct central power unit installation. 240 V 12 V english PERFETTO TXA PERFETTO TP - PERFETTO TPA CLASSIC TC TX1A TX2A TX3A TX4A TP1/TP1A TP2/TP2A TP3/TP3A TP4/TP4A 1115 1115 1115...
- Page 12 bRacket faStening 4 - With a simple left to right movement, slide the central power unit support to the end stop. 1 - Make the holes in the wall 2 - Fasten the bracket to the wall following the 5 - The lock hook must release with a CLICK; use a described assembly order: screwdriver for leverage if necessary (see figure 6, A - Screw 6x70...
- Page 13 connection dUSt inlet line Dust inlet line connection All of the central power units have a dual dust inlet to permit the connection of the socket line hose on both mbar mbar sides of the central power unit, making installation easier.
- Page 14 aiR diSchaRge gRille NOTE Fit the 2 grilles in both air exhaust openings following Close the air discharge union not in use the instructions indicated below. The air discharge union not in use (g) must be closed using cap (h) and fixed using the clamp (f) provided. The inner side is the one with the grille;...
- Page 15 electRical connection of the The central power unit electric power supply system must be installed by qualified tUbÒ SyStem personnel in compliance with current applicable regulations. DANGER OF ELECTROCUTION The manufacturer declines all liability for Make sure that the electric line is poor operation or damage to people and/ dimensioned to support the central power or property due to connection to a non-...
- Page 16 contRol panel With avi diSplay and keyboaRd (for PERFETTO TXA, TPA and TP central power units) The central power unit has a control panel that includes an AVI display (immediate display) and a built-in keyboard to navigate and control the various central power unit operating parameters.
- Page 17 CONTROL PANEL OPERATION Once the vacuuming phase is completed with the central power unit in STAND BY, this displays the following operating parameters: ALPHA - NUMERIC DISPLAY With the central power unit ON, it displays the following operating parameters: TOTAL MOTOR HOURS this displays the total hours of use of the central power unit mbar...
- Page 18 CONTAINER/CLEAN BAG OPERATING VACUUM RANGE FILLING LEVEL Indicates the vacuuming power at which the system This calculates the presumed filling level of the dust is operating. 3 different vacuum levels are shown on container or CLEAn BAG, using 4 progressive stages. the display vacuum low vacuum correct...
- Page 19 AVT conTrol pAnel (on CLASSIC TC central power units) AVT PANEL The central power unit is equipped with an AVT panel (timed display) that makes it possible to display the central power unit's main maintenance operations. CONTROL PANEL OPERATION DUST CONTAINER FILLING LED Indicates the presumed maximum filling of english the dust container.
- Page 20 For CLASSIC TC central power units: insert the vacuum gauge (AT010) in the socket adjacent to the one occupied by the hose; if the vacuum value is correct (RANGE between 100 and 150 mbar) the hand will point to the green zone. In this case, the test is positive. Otherwise, contact the Aertecnica Service Centre. User and maintenance manual...
- Page 21 2 - Close the CLEAN BAG by pulling the strips (b) all the Maintenance way, without unhooking the dust container. Careful maintenance prolongs the life-time of the central power unit and guarantees better performance. NOTE Before starting with any maintenance operation, disconnect the central power unit from the power supply.
- Page 22 3 - Fold the upper part of the bag inside the bag clean bag insertion tensioner ring (k). The CLEAN BAG must adhere to the internal walls of the dust container. 1 - Open the CLEAN BAG blocking system clamps that Insert the strips into the handle slots (g) allowing them are on the bottom of the dust container (d).
- Page 23 2 - Unscrew the knob (b) that fastens the cartridge and filter cartriDge replaceMent remove it from its housing Before starting with any maintenance operation, disconnect the central power unit from the power supply. It is recommended to replace the filter cartridge every 2-3 years.
- Page 24 3 - Rehook the dust container and close the handles. orDinarY Maintenance ON CLASSIC TC CENTRAL POWER UNITS Careful maintenance prolongs the life-time of the central power unit and guarantees better performance. NOTE Before starting with any maintenance operation, disconnect the central power unit from the power supply.
- Page 25 In case of anomaly call a Technical Service Center. english 3 - Insert a new cartridge and tighten the knob 4 - Rehook the dust container and close the handles. completely (b). The alignment system guarantees perfect filter cartridge fastening. USE ONLY ORIGINAL AERTECNICA SPARE PARTS...
- Page 26 CARTRIDGE GASKET CHECK cartridge walls. In this case the damaged cartridge must Check the gasket condition (g) of the filter cartridge. be replaced with a new one. Replace if damaged. USE ONLY ORIGINAL AERTECNICA SPARE PARTS User and maintenance manual Maintenance Maintenance...
- Page 27 central power unit Disposal IMPORTANT The material listed below must be divided (for all central power unit models) and stored to be recycled or disposed of in compliance with the environmental At the end of its life cycle, the machine must be disposed regulations valid in the country of use.
- Page 28 ANOMALY AND LOCK TABLE - (for PERFETTO TXA, TPA and TP central power units) MAINTENANCE LEVEL OF USE ANOMALY LOCK INTERVENTION these symbols Ø necessary replace appear the bag. After replacing the 1 - lling 25-49% these symbols bag: press MEN three appear times in a row.
- Page 29 MAINTENANCE LEVEL OF USE ANOMALY LOCK INTERVENTION If the central power this symbol unit has an anomaly, ashes this symbol turn off the system to ashes prevent it from locking. The central control unit will reset itself for appears use. MAXIMUM TIME OF CONTINUOUS 29 consecutive...
- Page 30 troublesHooting - (for PERFETTO TXA, TPA and TP central power units) PROBLEM CAUSE SOLUTION Power supply cable disconnected Connect the power supply cable 12V socket cable line not connected or Connect the 12V socket cable line or incorrectly connected check the wiring Check the electric connection on each socket.
- Page 31 PROBLEM CAUSE SOLUTION There is clogging in the system Call a specialised technician. Perform cartridge maintenance. Press The filter cartridge is saturated RESET to reset operation. Multiple vacuum sockets are being used The central power unit may only be used at the same time on the system by one operator at a time.
- Page 32 troublesHooting - (for CLASSIC TC central power units) PROBLEM CAUSE SOLUTION Power supply cable disconnected Connect the power supply cable 12V socket cable line not connected or Connect the 12V socket cable line or incorrectly connected check the wiring Check if the air exhaust line is free or if the two air exhaust openings are blocked.
- Page 34 It is prohibited to use the central power unit for uses other than those described in this manual. The descriptions and technical illustrations may change. Aertecnica S.p.A. reserves the right to modify the product and the related technical documentation without incurring any obligation to third parties.
