Kobalt CDT212KU User Manual

Kobalt CDT212KU User Manual

12 v drill driver

Advertisement

KOBALT® and the K Design® are registered
trademarks of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST,
Monday - Friday.
AB13594B
Purchase Date
1
ITEM #0233384
12 V DRILL DRIVER
MODEL #CDT212KU
Français p. 15
Español p. 29

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDT212KU and is the answer not in the manual?

Questions and answers

Summary of Contents for Kobalt CDT212KU

  • Page 1 ITEM #0233384 12 V DRILL DRIVER MODEL #CDT212KU Français p. 15 Español p. 29 KOBALT® and the K Design® are registered trademarks of LF, LLC. All Rights Reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-3KOBALT (1-888-356-2258), 8 a.m.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS ......................2 Package Contents ....................... 3 Safety Information ....................... 4 Operating Instructions ......................8 Care and Maintenance ..................... 13 Troubleshooting ........................ 13 Warranty ........................... 14 Replacement Parts List ....................14 PRODUCT SPECIFICATIONS COMPONENT SPECIFICATIONS Charger Voltage 120 V ~ 60 Hz Rated Voltage 12 V No Load Speed...
  • Page 3: Package Contents

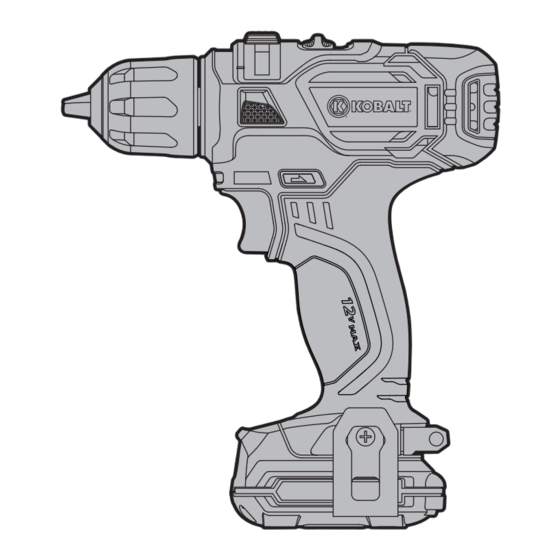

    PACKAGE CONTENTS PART DESCRIPTION PART DESCRIPTION Keyless Chuck Battery Release Button E-Torque Selector Battery Pack Two-Speed Gear Control On/Off Switch Forward/Reverse Rotation LED Light Control Double-Sided Bit Fuel Gauge Charger Soft Grip Handle Belt Clip kobalttools.com...
  • Page 4: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-888-3KOBALT (1-888-356-2258), 8 a.m. - 8 p.m., EST, Monday - Friday. This instruction manual contains important information necessary for the proper assembly and safe use of this tool.
  • Page 5 SAFETY INFORMATION (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock. PERSONAL SAFETY Stay alert, watch what you are doing and use common sense when operating a power tool. DO NOT ALWAYS wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions the switch or energizing power tools that have the switch on invites accidents.
  • Page 6 SAFETY INFORMATION BATTERY TOOL USE AND CARE SERVICE This will ensure that the safety of the power tool is maintained. DRILL SAFETY WARNINGS Hold power tool by insulated gripping surfaces when performing an operation where the cutting ac- GENERAL SAFETY WARNINGS FOR BATTERY PACK WARNING: DO NOT disassemble, heat above 100°C (212°F), or incinerate.
  • Page 7 SAFETY INFORMATION BATTERY MUST BE RECYCLED. DO NOT short-circuit a cell or battery. DO NOT store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. DO NOT they become dirty. ALWAYS refer to the cell or battery manufacturer’s instructions and use the correct charging procedure.
  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS USING YOUR BATTERY PACK Note: Before using the tool, read the instruction book carefully. WARNING: NOT attempt to use any other devices. NEVER battery pack connections because an electrical failure and hazard will occur. UNCHARGED and you must charge once before use. When you charge the new battery or one which has not been used for long periods of time, it may not reach full charge until after you have discharged it fully in use and recharged it several times.
  • Page 9 OPERATING INSTRUCTIONS 3. To remove the battery pack (I), depress battery release button (H) and remove the battery pack from your tool. Press the On/Off switch fully and the fuel gauge will light up for 2-3 seconds to show the amount of charge left in the battery.
  • Page 10 OPERATING INSTRUCTIONS BELT CLIP 1. The belt clip is attached with a small screw. Simply unscrew the clip to move it to the opposite side of the drill. The belt clip (G) can be hooked on your belt or pocket, etc. DRILL FEATURES 1.
  • Page 11 OPERATING INSTRUCTIONS 3. The drill has a two-speed gear control (C) designed for drilling or driving at LO (1) or HI (2) speeds. A slide switch is located on top of the drill to select either LO or HI speed. When using the drill in the LO speed range, the speed will decrease and the drill will have greater power and torque.
  • Page 12 OPERATING INSTRUCTIONS 6. The automatic spindle lock allows you to use a very tight screw, or continue working when the battery energy has expired. For manual screwdriver purposes, the chuck is automatically locked when the tool is off. DRILLING When drilling into a hard, smooth surface, use a center punch to mark the desired hole location. This the tip of the bit at the point to be drilled.
  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE in your power tool. NEVER use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. ALWAYS store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.
  • Page 14: Warranty

    12 V Battery 70039758 12 V Battery Charger 70039757 Belt Hook 70039746 Printed in China Bit Holder 70039754 Screw for Hook & Bit 70039747 KOBALT® and the K Design® are Holder registered trademarks of LF, LLC. All Rights Reserved. kobalttools.com...
