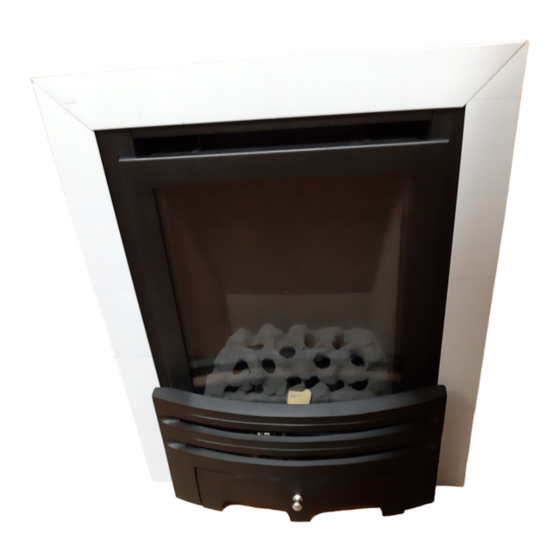

Model
Eco4 HE
Model options
E4 HE Plus, E4 HE Nova, Extra HE
Apex, Blenheim, Grace, Daisy, Soho, Contemporary,
Contemporary II, Magma HE, SP200, MX20, Pinnacle Slimline HE
Phoenix, Liberty Slimline HE and Lux Slimline HE
Manual Control
Installation and User Instructions
All instructions must be handed to
user for safekeeping
This is not a DIY product and must be
installed by a Gas Safe registered
installer
Edition D 02/14
Country(s) of destination - GB/IE
1
Advertisement
Table of Contents
Related Manuals for Sirocco Eco4 E4 HE Plus
Summary of Contents for Sirocco Eco4 E4 HE Plus
-
Page 1: Manual Control
Model Eco4 HE Model options E4 HE Plus, E4 HE Nova, Extra HE Apex, Blenheim, Grace, Daisy, Soho, Contemporary, Contemporary II, Magma HE, SP200, MX20, Pinnacle Slimline HE Phoenix, Liberty Slimline HE and Lux Slimline HE Manual Control Installation and User Instructions All instructions must be handed to user for safekeeping This is not a DIY product and must be... - Page 2 These Notes Must Be Read Before Installation This appliance is an Inset Live Fuel Effect appliance that provides radiant or combined radiant and convected heat; it cannot and should not be used as the main heating source within a property. The appliance is designed to fit most types of fireplaces with a natural draught flue as listed in the Installation Requirements.
- Page 3 OPENING THE APPLIANCE Stand the carton the right way up, open the box from the top. To remove the appliance lift by the handle secured to the top. Once the appliance is out of the carton remove the handle and replace screws back in the holes Read all the instructions before continuing to unpack or install this appliance.
-
Page 4: Table Of Contents
CONTENT CHECK LIST Quantity Description Glass Fronted Firebox and Burner Tray Spacer frame for Slide Control if required Decorative Trim/Frame (optional) Fire Fret/Front (optional) Rear Matrix/ Fuel Bed support Coals/Pebbles if required Cable fixing kit; 1 cable, 2 tensioners, 2 cable clamps, 4 fixing eyes. Lengths of adhesive sealing strip. -
Page 5: Important Notes
Section 1: IMPORTANT NOTES This fire is an Inset Live Fuel Effect Gas Fire providing radiant warmth. It is designed to operate on Natural Gas or LPG. It is the LAW that all gas appliances and fittings are installed by a competent person such as a Gas Safe Registered fitter and in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards for Installation, Codes of Practice and in accordance with the manufacturers’... -
Page 6: Installation Requirements
Section 2: INSTALLATION REQUIREMENT This appliance MUST NOT is installed into a bathroom or shower room, or where steam may be present. An extractor fan must not be fitted in the same room or space as the appliance as this can affect the safety of the appliance. -
Page 7: Appliance Information
Section 3: APPLIANCE INFORMATION Eco4 HE Hotbox Gas Group G20 Natural Gas CAT I2H Inlet Pressure 20 mbar Max Input (gross) Min Input (gross) Setting Pressure 20 mbar Gas Inlet connection 8mm Compression Overall Height Overall Width Overall Depth Recess Height Recess Width Recess Depth Air Vent... -
Page 8: Ventilation
SECTION 4: VENTILATION This Appliance is rated below 6.3Kw and does not normally require purpose provided ventilation. However, if a second appliance operating within the same room or space must be taken into consideration when assessing ventilation. When commissioning the appliance spillage is detected, then amongst other problems there may be insufficient natural ventilation for correct operation of the flue. - Page 9 The current versions of BS1289 and BS EN 1806 recommend that there should be an air space or insulation between the flue blocks and the plaster because heat transfer may cause cracking on directly plastered flues. However, generally this appliance is suitable for installations under all circumstances unless there is a history of cracking problems, remember that faults such as cracking may be caused by poorly built and restrictive flues and therefore is not the responsibility of the manufacture of this appliance.
- Page 10 Diagram 1 Eco 4 Height 555-580mm Width 355-470mm Depth Minimum Hearth Depth in Front of the Fire 300mm Heath must Extend Minimum of 150mm Minimum Hearth Height 50mm Hole-in-the-wall installations Where the appliance is to be installed as a hole-in-the-wall fireplace, a hearth as previously detailed for floor level fireplaces shall be fitted on the floor beneath the hole so as to protect combustible material from heat.
-
Page 11: Debris Space
SECTION 5.1: PREFABRICATED FLUE BOXES This appliance can be fitted into a number of flue boxes provided that the minimum dimensions required for the appliance complied with. Spigot outlet of the appliance must have a minimum clearance of 60mm to the rear of the fire, also ensure there are no obstructions above between the appliance and the flue box outlet. - Page 12 Section 7: INSTALLATION OF APPLIANCE Always ensure that the gas supply is isolated before commencing installation of the appliance. The fireplace opening and environment must be in compliance with specifications laid down in the appropriate sections of these instructions. Remove the appliance from its carton as described previously and stand on a dust sheet. Place the coals, ceramics and fixings safely to one side.
- Page 13 Now you can remove the tray for a manual tray remove the two screws ISOLATION SCREWS Now remove the two screws holding the back of the burner tray in place. The tray is now free and may be lifted away from the box, lift free of the retaining clips on each side of the burner tray.
-
Page 14: Preparing The Opening 13 To
The tray is now free and may be lifted away from the box, lift free of the retaining clips on each side of the burner tray. Carefully remove the spark generator from the box or remove the cables to the generator, making a note of which cable goes where. - Page 15 Drill 4 x 6mm holes through the template as shown in the diagram and fit the Rawlplugs and screw eyes supplied. Screw Eye Positions 203mm Diagram 6 520 Max 550mm 420 Min 100mm Note: In some instances the plastic Rawlplugs supplied my need to be substituted with fibre Rawlplugs, if the appliance is likely to heat the screw eyes.
- Page 16 Through holes at the top of the fire box Through Screw eyes Through Screw eye at the bottom and through the 2 holes near base of the firebox Push the appliance back into the fireplace, centralise and pull the loose cables through the holes into the firebox You can now decide where to route your gas pipe, knock out holes are provided in the rear and side of the fire box...
- Page 17 The gas pipe must be suitably protected where it passes through fireplace openings. Any sleeving should be sealed to the pipe at its ends. The open end of the gas supply pipe should be temporarily sealed to prevent ingress of dust and dirt during installation.
-
Page 18: Fitting The Burner Tray
SECTION 7.2 FITTING THE BURNER TRAY Temporarily fit the burner tray and ensure that the suitable gas route has been achieved. You can now place the burner tray into the firebox making sure that the fixing points are locate properly on the firebox. -
Page 19: Fuel Bed & Glass
SECTION 8: FITTING OF THE FUEL BED AND GLASS Place the ceramic matrix onto the burner ensuring that the matrix is sitting securely over the burner tube, the top section of the matrix sets level on the base section. Once the fuel bed is in position you can the refit the glass support base bracket and gentle place the glass into position, then fit the top retaining bracket with the three screws DO NOT over tighten. -
Page 20: Commissioning The Appliance
The fire front/fret shown in these instructions may differ from the one supplied with the appliance, we strongly recommend you use a fire front/fret supplied by Sirocco fires as these products will have been tested with the appliance, although other fire front/frets will be compatible. -
Page 21: Operating The Appliance 19
Section 10.1: OPERATING THE APPLIANCE (See Section 18 Users Instructions Section 10.2: SPARK FAILURE The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good spark. There should be no need to adjust this. If under any circumstances the electric spark fails, the pilot may be lit manually by proceeding with the ignition sequence as previously described, and after turning the control knob through the spark position, the knob should be held in and the pilot lit with a taper. -
Page 22: Spillage Monitoring System
SECTION 12: FLUE SPILLAGE MONITORING SYSTEM Slide controlled fires are fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason then several things may be suspected, if a door or window has been opened creating a draught, then pilot disturbance is the problem, and removal of the draught should resolve this. -
Page 23: Briefing The Customer
FIG 1 Hold smoke match in position 10mm inside and down from top face of the central slot When the test has been completed satisfactorily, repeat with any extractor fans in the premises running on the highest setting, and any communicating doors open. Finally, repeat with all doors open. -
Page 24: Servicing
Paint only when the fire is OFF and cold. Always mask off the surrounding area to prevent contamination with overspray. Ventilate the room during the use of the spray. DO NOT attempt to spray paint the coals or ceramics, or wash them in water. -
Page 25: Troubleshooting Guide
SECTION 16: CLEANING GLASS Remove the Glass panel as per the installation instruction and clean glass with a glass cleaner and a lint free cloth or Microsoft cloth, if white haze or carbon discolouration is still apparent the a metal polish such as Hotspot or Peek can be used to remove these stubborn particles. - Page 26 SECTION 18: USER INSTRUCTIONS IMPORTANT NOTES The installation of this fire MUST only be carried out by a competent person (such as a Gas Safe registered fitter) in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes of Practice, the Building Regulations and the manufacturers’...
- Page 27 A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given in section 3 site requirements. No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the same space or room, and the results of a spillage test must be taken into consideration when assessing ventilation requirements, this will have been carried out by your Gas Safe registered installer.
- Page 28 To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high position. The main burner should light after a few seconds, to decrease the setting to LOW, turn the control knob clockwise to the low setting. To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot position and release.
- Page 29 CLEANING Before carrying out any of the following operations, ensure that the fire is OFF and completely cold. Debris that may form on the fire bed should be periodically removed by a competent person. Large deposits could indicate deterioration of the flue. This should be repaired by a competent person, and the fire serviced before further use.
-
Page 30: Spare Parts
FOLLOWING; Sirocco is committed to customer care and service. To ensure we provide the best service we can we have a policy to charge for all none warranty home visits so that all customers with a genuine manufactures fault can be dealt with swiftly, if your appliance has recently been installed and you are experiencing any of the following;... - Page 31 SECTION 20: LIST OF SPARES Code SPARE PART DESCRIPTION PARTNUMBER MATRIX E4 HE BLACK FIXING KIT HE 4 INSTALLATION & USER MANUAL ALL MODELS 4 HE TRIM 3 PART BRASS TRIM 3 PART CHROME TRIM 3 PART BLACK PILOT ASSEMBLY SIT NG9017 or Thermaco OXI-PG-82-460 THERM BURNER (NATURAL GAS) INJECTOR (NATURAL GAS)
- Page 32 Eco 4 HE Manual Control...
- Page 33 08432 89 0102 Mon to Fri 9:00 to 16:00 Contact our spares department by email spareparts@siroccofire.pl Purchase spare parts direct from our website www.siroccofires.com Spare parts are managed by our UK partner company Lodestar-Delta Ltd Lodestar-Delta Ltd T/A Sirocco Unit 1, 11 Weir St, Blackburn, Lancashire BB2 2AN...
-
Page 34: Contact Details
96-321 Zelechow Poland TECHNICAL HELP LINE Speak to a Sirocco trained engineer 0904 084 3473 (0904 084 FIRE) This is a premium rate number charged at 1.00 plus vat per minute from BT lines Mon to Fri 9:00 to 17:00... - Page 35 CONDITIONS OF GUARANTEE Sirocco (hereinafter referred to as the company) will, at its option, repair or replace free of charge any product or part thereof which is shown to the satisfaction of the company to be defective due to faulty...
- Page 36 29 It is essential that your Sirocco appliance is serviced, by a suitably qualified Gas Safe engineer or a Sirocco authorised appointed engineer to carry this out at least every twelve months, as part of...
