Avenview HDM-C6VWIP-SET Configuration Manual

Control Your Video

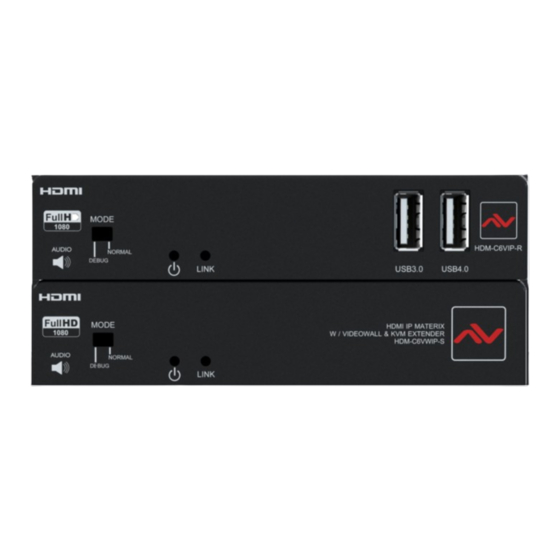

HDM-C6VWIP-SET
Videowall Matrix IP Extender with
Audio, IR RS232 and KVM
HDM-C6VWIP-SET Compatible switch configuration on Existing Network

What is Multicast Video?

Multicast video manages large number of recipients (Rx) from a replicated
transmission which makes a tremendous difference in network load, even in a
simple network with a small number of router and switch hops.
Additional features of multicast are beneficial in specific applications such as IP Encoder/Decoders. Multicast transmissions
are delivered nearly simultaneously to all members of the recipient group.

What is IGMP?

IGMP is a network layer (Layer 3) protocol used to establish membership in a Multicast group and can register a router to
receive specific Multicast traffic. Without IGMP Querying/Snooping, Multicast traffic is treated in the same manner as a
Broadcast transmission, which forwards packets to all ports on the network. With IGMP Querying/Snooping, Multicast
traffic is only forwarded to ports that are members of that Multicast group. IGMP Snooping generates no additional
network traffic, which significantly reduces the Multicast traffic passing through your switch.

HP SWITCH CONFIGURATION STEPS

1. Go to Network ---> IGMP Snooping ---> set IGMP Snooping to Enable. Click Apply.
In the same screen press the icon under the Operation table heading to navigate to the VLAN Configuration screen.
Office Avenview, Corp. 275 Woodward Avenue,
Phone: +1.716.218.4100 ext223 Fax: +1.866.387-8764
VIDEO WALL VIDEO PROCESSORS
MULTIVIEWERS
EXTENDERS CONTROL
SCALERS WIRELESS
HDM-C6VWIP-SET
HP SWITCH CONFIGURATION GUIDE
USA Head Office:
Kenmore, NY 14217
info@avenview.com
DIGITAL SIGNAGE
CENTERS
Canada Sales:
Avenview, 151 Esna Park Drive,
Unit 11 & 12 Markham, Ontario, L3R 3B1
Phone: 1.905.907.0525 Fax: 1.866.387.8764
www.avenview.com
HP ProCurve 1810G
