Summary of Contents for Power Fist 8046241

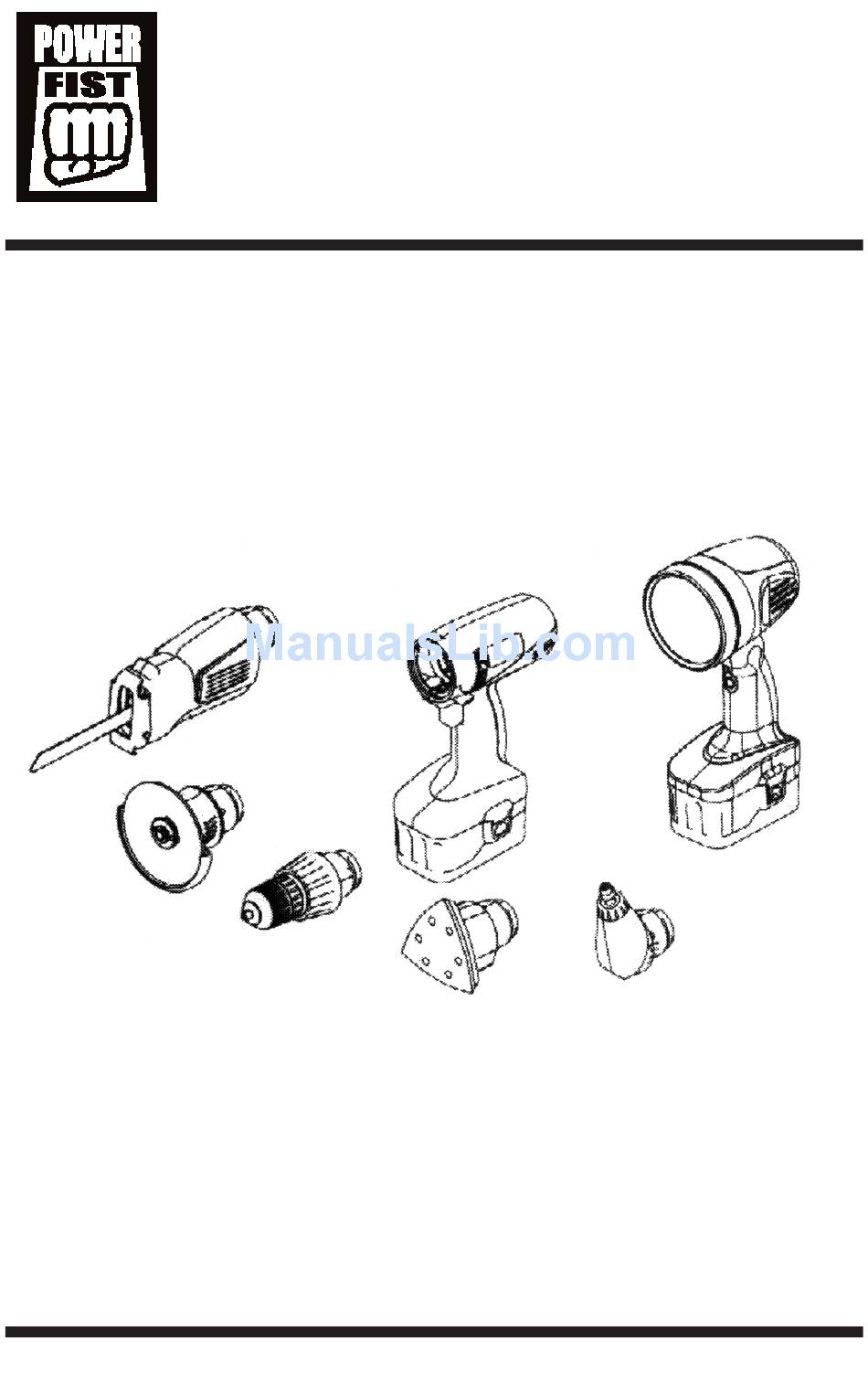

- Page 1 18 Volt 6-in-1 Cordless Drill Kit 8 8 0 0 4 4 6 6 2 2 4 4 1 1 Owner's Manual Please read this manual carefully before use...
-
Page 2: Important Safety Information
Important Safety Information Read all instructions carefully before operating this product. Warning! Do not attempt to operate this power tool until you have read this manual thoroughly and completely understand all instructions, safety information and warnings. Failure to comply can result in accidents involving fire, electric shock and/or serious personal injury. - Page 3 • If power tool or any of its attachments becomes damaged in any way discontinue use immediately. • If dropped or damaged, discontinue use until the tool has been inspected by a qualified electrical repair technician. • Discontinue use if power tool, charger or any attachments have been dropped into water, left outside in the rain or in a damp environment.
- Page 4 Work area safety • Keep your work area clean, organized and well lit. • Do not operate power tools in the presence of flammable liquids, gases or dust. • Be sure work piece is properly secure while drilling, chiselling, grinding or sanding.
- Page 5 Battery Safety • Before charging the battery read all instructions and warnings carefully. • Never use any other battery charger to charge the supplied battery. • Never leave, use store or expose battery to rain or wet conditions. • Never touch the battery with electrically conductive objects. •...
-
Page 6: Parts And Accessories
Parts and Accessories Torque Smart Switch Selector lock and release Chuck Direction Control Power Trigger Power Tool Battery Release Battery Battery Charger • Battery Pack • Power supply Accessory Kit includes: • 2 pc 3.5" triangle sanding papers • 4 power bits •... - Page 7 Attachments Drill/Driver Attachment • Variable Speed 0-750 RPM • Reversible • 3/8" Keyless Chuck • 8 torque settings • Placement and removal of screws • Drilling holes Sander/Polisher Attachment • 0-5,500 RPM • 3-1/2" Triangle Pads • Low vibration • Velcro mounted sanding pad •...
-
Page 8: Before You Begin
Before you begin Battery The battery supplied with this product will not be fully charged. You need to fully discharge the battery, then fully recharge for 3-5 uses prior to its full use. Note: For best results, completely discharge the battery after use. To discharge battery Simply operate tool continuously until the battery loses its charge. - Page 9 Power Trigger • The power tool operates when the direction control button is in either the forward or backward position. Note: if the power trigger does not work check that the direction button is not in the locked (middle) position. •...
- Page 10 6. Locate the arrow on the top of the Power tool. 7. Align both the arrows facing each other. Insert the base of the selected attachment into the mouth of the Power tool and lock into place by changing the smart switch to the locked position. 8.
- Page 11 Removing Drill Bits: 1. Hold the inner port of the chuck (as shown) with one hand and turn the outer portion of the chuck counter-clockwise to loosen 2. Carefully remove bit from the chuck after loosening Warning: Bits are sharp and may be hot from drilling. Use gloves or pliers to remove from power tool Drill Torque Selector...
- Page 12 Attaching Sandpaper: Sanding 1. Attach a piece of sandpaper to the sanding pad using the hook and loop technology (as shown) 2. Insert the battery 3. Apply a little pressure to the power trigger and slowly lower the sander to the workpiece. Sandpaper Note: there are holes in the sandpaper and sanding pad.
- Page 13 Note: Loosen chamber just enough to fit the blade in. Do not unscrew completely. This will cause the chamber to fall apart. 4. Place the circular opening on the blade over the protruding pin with teeth of the blade facing down. 5.
- Page 14 3. Push spindle lock button in while rotating the arbor nut onto shaft in a clockwise direction. Lock the arbor nut in place by using the pin spanner (as shown.) Important: Proper balance is essential for proper grinding For removal of paint/rust etc: We recommend using a coarse wheel (30-36 grain) For finishing surfaces: we recommend using a finer grain wheel (40-80 grain) Installing grinding wheel...
- Page 15 Installing router bits: 1. Select the appropriate cutting bit. 2. Locate the silver button on the router head 3. Push in and hold down the silver button while using the supplied collet wrench to turn the collet screw counter-clockwise. This will loosen the collet screw opening.
