Summary of Contents for Power Fist 8032693

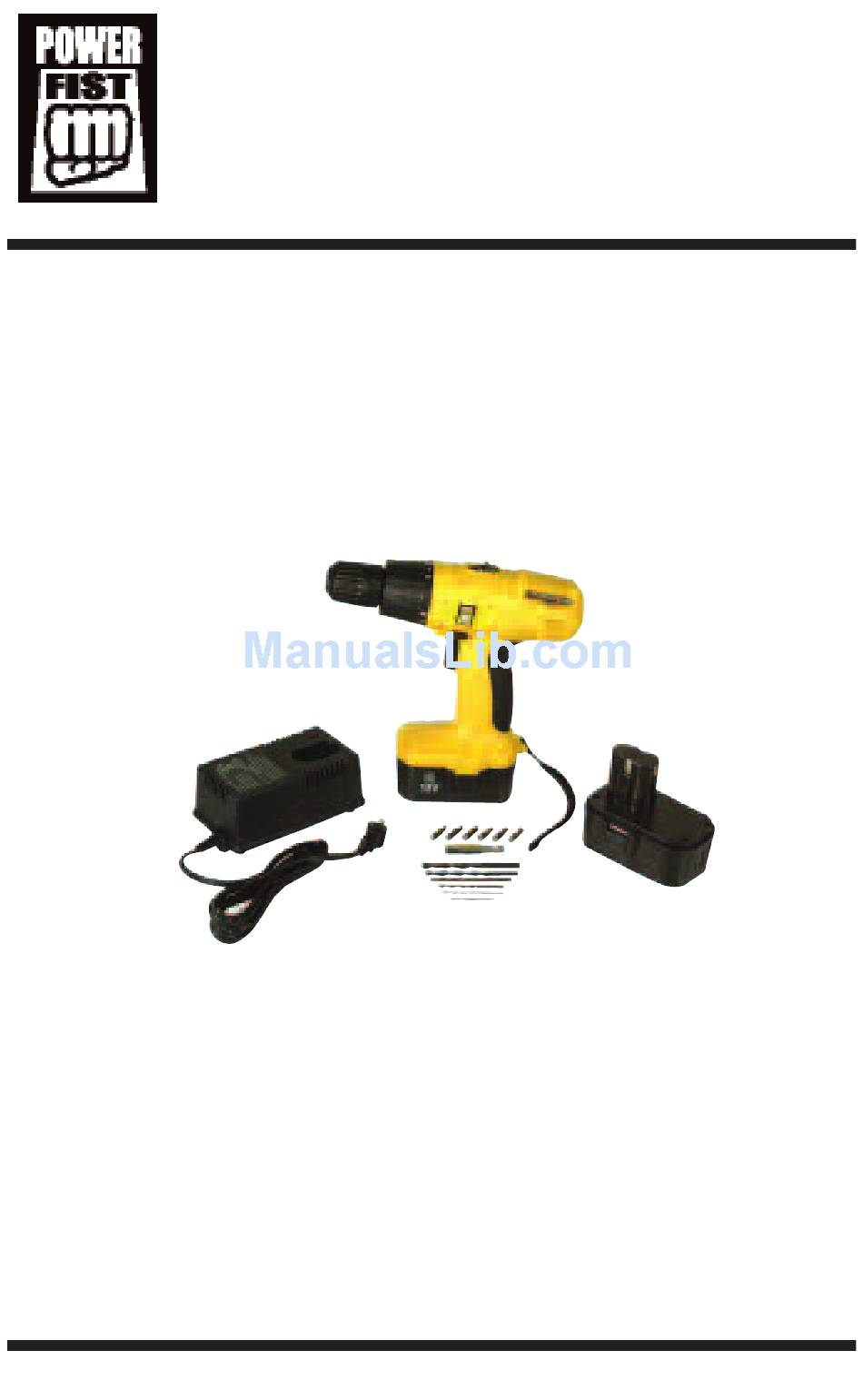

- Page 1 18 Volt Cordless Drill 8 8 0 0 3 3 2 2 6 6 9 9 3 3 Owner's Manual...
- Page 2 This cordless drill has been manufactured in accordance with the applicable standards and equipment safety legislation. When using electrical appliances, it is important to take some safety precautions in order to avoid possible injury and damage. Read and keep these instructions so that this information is available at all times.
-
Page 3: Technical Specifications
Technical Specifications • Model: 8032693 • Voltage: 18 VDC • Fits drill bit diameters: 1.5 mm to 10 mm Safety Instructions • 1 to 1-1/2 hours charge time Caution: When using power tools, attention must be paid to the following basic safety measures as protection against electric shock, risk of injury and burns. - Page 4 11. Do not over reach. Avoid awkward postures. Ensure that you are standing securely and keep your balance at all times. 12. Maintain tools with care. Keep tools clean and sharp in order to have them ready for operation. Follow the maintenance schedules and instructions for tool changes.
- Page 5 Special safety instructions for battery pack and charger If under extreme conditions any electrolyte should escape from the battery, avoid contact with the skin. If it does contact skin, rinse it off with water. If the electrolyte contacts the eyes, consult a doctor immediately.
-
Page 6: Initial Operation
Initial Operation (See figure 2) 1. Insert the charged battery (2) in the handle of the drill (1) and secure with the release button (3). The spring must snap into place. 2. Separate the battery from the tool by pressing the release button below the Charge process machine handle. -
Page 7: Switching On And Off
Inserting Bits F F i i g g u u r r e e 4 4 (See figure 4) 1. In order to insert a drill bit or screwdriver bit, grasp the back section of the chuck (2) and rotate the front section of the chuck (1) until the bit fits. -
Page 8: Speed Regulation
Speed Regulation F F i i g g u u r r e e 6 6 (See figure 6) The rotation speed can be increased by pushing the speed button forward to position 2. Decrease the speed by pushing it backward to Variable Speed position 1. -
Page 9: Maintenance
To drill metal, punch the drilling position first if possible to prevent the drill bit from skating away. The noise output of the drill may exceed 85 dB at the workplace. Use Maintenance of ear protection is recommended. Before doing any work on the drill itself, remove the battery pack. Clean the appliance with a moist cloth and some lubricating soap.
