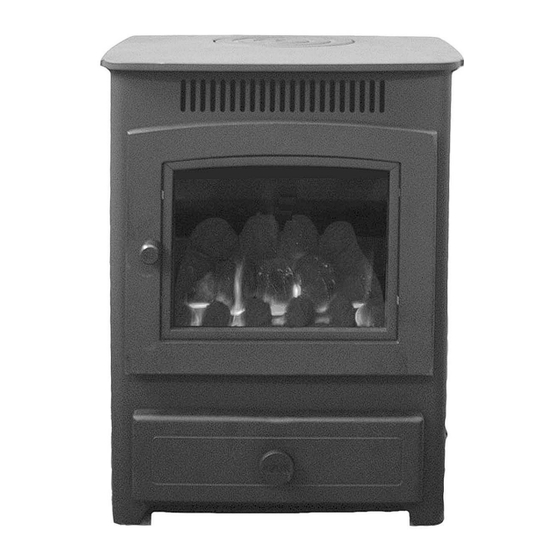

- Page 1 Operating & Installation Manual FURNESS AND BURNMOOR GAS STOVES (Baxi Furness) Furness G.C. No. 32 075 36 Burnmoor G.C. No. 32 075 37 PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Baxi Fires Division, Wood Lane, Erdington, Birmingham, B24 9QP FOR USE IN COUNTRIES GB &...
- Page 2 HELPLINES THE BAXI FIRES & STOVES HELPLINES You can expect the very highest standards of service from Baxi. For fires and stoves after sales service please call 0870 609 0081. To help us quickly help you, please try to have the following information available before you contact us: a.) Your Post Code.
-
Page 3: Table Of Contents
Fault Diagnosis Fitting The Reflective Panels SPARE PARTS Arranging The Coals General Components Lighting & Controlling The Fire Accessories and Options INSTALLATION BAXI SPARE PARTS Installing The Fire Spare Parts List 23-26 Flue System 10/11 SERVICE RECORD Fire Location Service Record... -
Page 4: Introduction
This will minimise the cantiuer industrial waste. Protective clothing is not action. required when handling these items but it is # Use gloves to provide additional grip. recommended that gloves are worn and Baxi Gas Stoves... -
Page 5: Important Notes
# Servicing instructions and part identification numbers are given towards the back of the CERTIFICATION manual. # Only use genuine Baxi parts for replacements. This appliance is certificated for performance and # Ventilation, purpose built ventilation is not safety. Therefore, it is important that no alteration is normally required for either appliance, made to the appliance. -
Page 6: Technical Data
(net) PANELS Gas Rate 0.349 0.444 /hour /hour Baxi Furness. The panels are already installed. Cold Setting 1.5mb 3.5mb Pressure Baxi Burnmoor. The reflective panels supplied are to be installed into the fire before the coal matrix is Min. Heat fitted. -
Page 7: Arranging The Coals
Ensure location is correct. Do not force the matrix into position. If the coals and/or the coal matrices are damaged they must be replaced only with genuine Baxi replacement sets. Warning: An incorrect coal layout may cause Fig 3c soot to build up inside the fire and therefore invalidate the guarantee. -
Page 8: Lighting & Controlling The Fire
Step 1b. Keep the control knob pressed in and turn anti-clockwise to the pilot position. (Fig 4b) For minimum heat output, rotate the control knob clockwise to the LOW position. (Fig 4d) Fig 4b Baxi Gas Stoves... -
Page 9: Lighting & Controlling The Fire
Fig 4e Step 3. To turn the main burner off while keeping the pilot alight, rotate the operating knob back to the PILOT position. (Fig 4e) Fig 4f Baxi Gas Stoves... -
Page 10: Installation
(0.5mm to 6mm water gauge). The Gas Safety (Installation and Use) Regulations 1998 (as amended). The Baxi gas fire is designed so that the flue can The Building Regulations for England and Wales be fitted to either the top or the rear of the 2000 ref Approved Document J 2002 edition appliance. - Page 11 (Ref fig 5c). incorporating access for cleaning debris. It is recommended that a smoke test is performed inside the fire to ensure that adequate flue draw is evident. Fig 6c Baxi Gas Stoves...
-
Page 12: Fire Location
100 mm is recommended. Reference non-combustible side walls a minimum of 100mm is recommended. Do not place any furniture or furnishings (including curtains) within 1 metre of the fire. Baxi Gas Stoves... -
Page 13: Combustible Shelf Clearances
1. Graph 1.Combustible Shelf Clearances The recommended minimum height from the extreme top surface of the fire to the underside of a non combustible shelf is 100mm. Baxi Gas Stoves... -
Page 14: Hearth Requirements
After fitting the supply, operate the gas cock (supplied) and check all joints up to the termination of the supply pipe for gas tightness using a soap/water solution and the pressure drop method. Baxi Gas Stoves... -
Page 15: Fire Testing
Repeated operation of the spillage monitoring system indicates that there maybe a flue draw problem. In this situation no more attempts at operating the appliance should take place and your gas installation engineer should be contacted. Baxi Gas Stoves... -
Page 16: Final Installation Check List
I/we the undersigned confirm that the above details are correct. In my oppinion, these works comply with the relevant requirements in Part J of Schedule 1 to the Building regulations. Print name and title....................Profession................Capacity........................Telephone................Address................................Postcode........Signed......................Date......... Registered membership of..(e.g. CORGI, OFTEC, HETAS, NACE, NACS)..........Baxi Gas Stoves... -
Page 17: Servicing
This will keep the fire and its components, including the ceramic coal set in a warmer state and give instant ignition to the burner. This in turn will reduce condensation in the chimney and any flue problems associated with this. Fig. 9 Baxi Gas Stoves... -
Page 18: Door Trim And Fire Glass Fitting & Removal
SERVICING DOOR TRIM The Baxi Gas range of stoves are fitted with a trim to the fire door glass as standard. This, clips on to the small lugs at the top and bottom of the aperture in the cast iron fire door, as a "spring fit". When fitted, the trim locks the glass retaining clips in position. -
Page 19: Component Replacement
Step 2 Remove the old door seal and old adhesive, using a wire brush ensuring that the surface is clean and dust free. Step 3 Apply the new adhesive to the door casting. Baxi Gas Stoves... -
Page 20: Annual Service
(See note under ‘Coal set’ on page 4) Step 6 Inspect the pilot assembly to ensure that it is clean, unobstructed and in good order. Step 7 Check system for gas soundness. Step 8 Replace the coal set as described in "arranging the coals". Baxi Gas Stoves... -
Page 21: Fault Diagnosis
Clean Check piezo igniter Has spillage Check to ensure the monitoring pilot assy is not system been obstructed or faulty activated? Check all pipe connections check main valve magnet Investigate flue systems Baxi Gas Stoves... -
Page 22: General Components
Fire Body Ancillary Components Only use genuine Baxi parts. ACCESSORIES AND OPTIONS Elegant stands Add on Canopies Are available for the complete Furness and Furness - Low available only Burnmoor range. Size: 405mm wide x 335mm deep. Raises the fire approximately 150mm. -
Page 23: Baxi Spare Parts
BAXI SPARE PARTS LIST Baxi Baxi Visual Aid Part Description Furness Burnmoor (not to scale) Part No. Part No. 1. Baxi Burnmoor Coal Set AFGS088 1a. Becton Furness Coal Set AFGS088A 2. Co-pilot Assembly AFGS089 AFGS089 3. Elbow Injector AFGS090 AFS090 4. -
Page 24: Spare Parts List
Complete With Connectors AFGS080 AFGS080 11. Decorative Door Surround AFS094A AFS095 12. Main Door Assembly Complete With Handle, Glass, AFGS097B AFGS037B Gaskets, Clips and Seal. 13. Glass Replacement Kit Complete With AFS069 AFS088 Glass, Gaskets & Clips Baxi Gas Stoves... - Page 25 16. Flue Outlet Spigot AFGS063 AFGS040 17. Fire Door Rope Kit With Door Rope Glue. AFGS105 AFGS106 18. Flue spigot and hot plate gasket. AFGS1071 AFGS1071 19. Reflective Panels AFGS062 AFGS082 20. Large Ceramic Panel AFGS093 AFGS093 Baxi Gas Stoves...
- Page 26 SPARE PARTS Baxi Baxi Visual Aid Part Description Furness Burnmoor (not to scale) Part No. Part No. 21. Small Ceramic Panel AFGS094 AFGS094 22. Gas Tap AFGS025 AFGS025 23. Fire Door Locking Handle AFGS104 AFGS104 Baxi Gas Stoves...
-
Page 27: Service Record
Should you have any questions about your gas fire that are not covered in this manual please contact your Baxi retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart. Baxi Gas Stoves... -
Page 28: Final Factory Checklist
Assembled by......HOT PLATE OPERATING INSTRUCTIONS Checked by ........ GUARANTEE BROCHURE Please ensure the enclosed registration card is completed and returned to Baxi and the following information completed for your own information. Date of Purchase........Name and address of supplier......................................
