SERVICE

If your Evolution 5200 Thermal Imaging Camera
(TIC) is in need of service or repair, please contact
the MSA Service Center at 1-877-MSA-FIRE.
Describe the problem to the Representative as
completely as possible.
1. Verify with your Representative that the
product should be returned to MSA.
2. Before returning the product, decontaminate
and clean your Thermal Imaging Camera to
remove any hazardous materials that may
have settled on the product during use.
• Laws and/or shipping regulations prohibit the
shipment of hazardous or contaminated
materials.
• Products suspected of contamination will be
professionally decontaminated at the
customer's expense before servicing.
• Ship returned products (including those under
warranty) with pre-paid transportation
charges; MSA cannot accept returned goods
on a freight-collect basis.

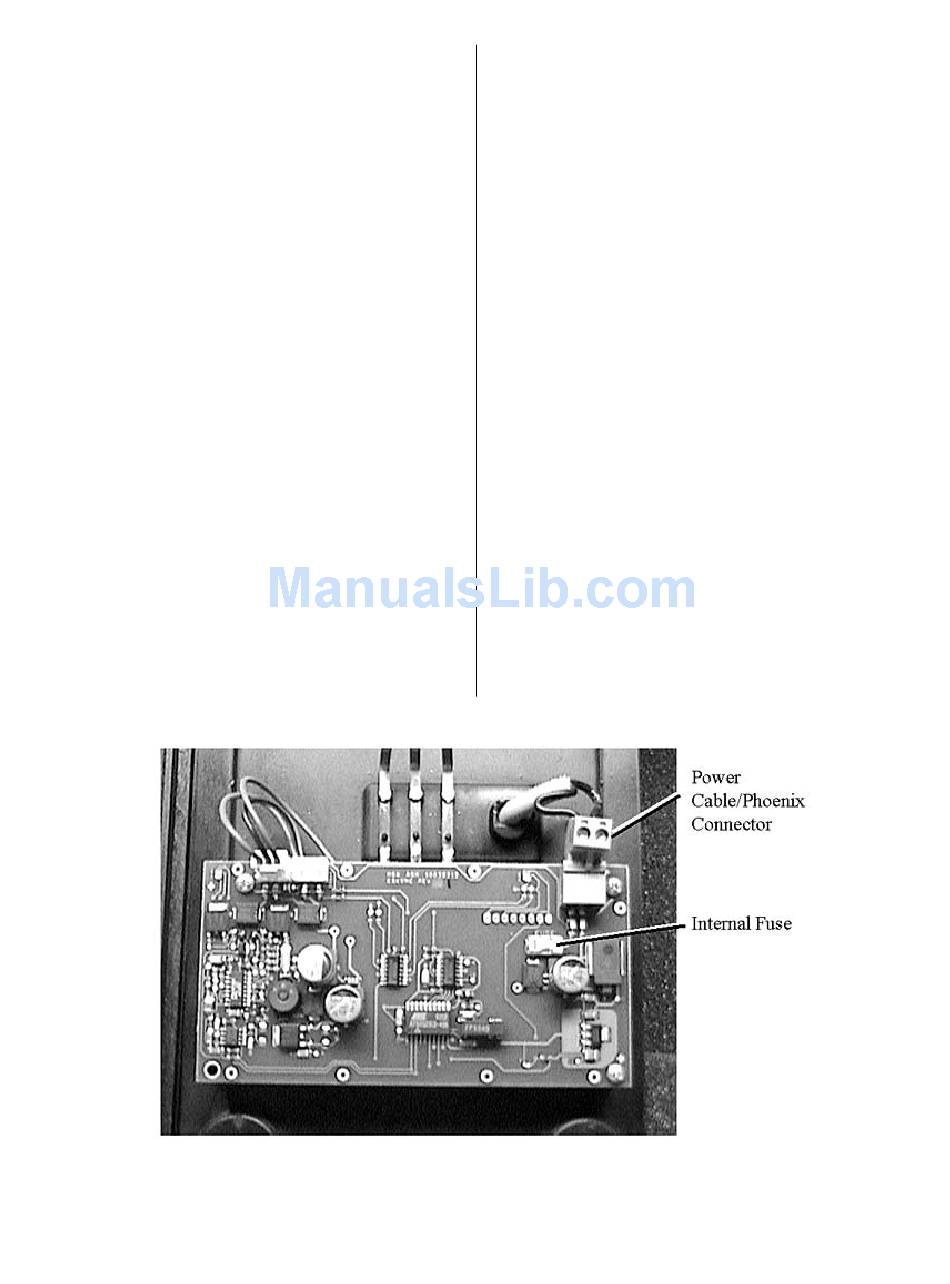

Figure 12. Location of Power Cable, Phoenix Connector, and Internal Fuse
Field Repairs and Maintenance
NOTE: Only remove the Truck-Mounted Charging
System's back cover in an ESD-protected
area with personal grounding system
(e.g., grounded wrist strap).
Internal PCB Fuse Replacement
Power LED will not light and other
troubleshooting guidelines do not resolve
the problem.
1. Remove charger from mounting brackets.
Using a screwdriver, remove the three
retaining clips from the plastic bosses and
remove the back cover.
2. Disconnect the power hookup cable by
disconnecting the Phoenix connector from the
plug-in receptacle on the upper right side of
the printed circuit board panel.
3. The internal printed circuit board fuse is
located next to the Phoenix connector on the
circuit board. Remove the fuse using the
plastic, nonconductive tweezers and replace
it with a new fuse (P/N 10041101, package
of five)
4. Reconnect the power hook-up cable to
the Phoenix connector and replace the
back cover. Secure the cover with the
retaining clips and bolt it back to the
mounting brackets.
17
