TIC Configurations and Accessories

The Evolution 5200 or the Evolution 5200HD
can be purchased as a complete kit with
accessories or can be custom configured to your
requirements under the Assemble to Order (ATO)
System. There are several part numbered kits to
choose from. Please see the Evolution 5200 or
Evolution 5200HD Brochure for complete
2
ordering information.
Evolution 5200 and Evolution 5200HD
Standard Components
All Evolution TICs come standard with the
following items:
• Thermal Imaging Camera
• One Rechargeable Lithium Ion Battery
• Caribiner Attachment
• Standard Universal Charger Kit with Cigarette
Lighter Adapter or Truck Mounted charger
• Care and Use Video
• SMA Video Out Connector
• Instruction Manual.
The Evolution 5200 and Evolution 5200HD
can be ordered as standard kit part numbers or as
Assemble to Order. See ordering information.

Other Options

Carrying Attachments

The Evolution 5200 and 5200HD
Imaging Cameras (TICs) come standard with a
caribiner attachment. Additionally, users can
choose to purchase any one of three optional
carrying attachments:
Wrist Strap/Bunker Clip - Attaches to the TIC
and includes a clip for securing the TIC to bunker
gear while not in use.
Shoulder strap - Attaches to the TIC to allow for
easy carriage of the camera while not in use.
Retractable Lanyard - Attaches to the TIC to
allow for easy carriage and quick use of the
camera while attached to the user's belt or gear.
Lanyard easily retracts the camera back into place
when not in use.

TIC ACCESSORIES

Display Sun Shroud

Display Shroud allows for crisp/clear viewing of
TIC
2
the LCD screen while in bright sunlight.
NOTE: It is NOT recommended that reflective trim

Disposable Display Covers

TIC
2
A package of three Disposable Display Covers
provides replaceable protection of the 3.5" LCD.

Custom Carrying Case

The Durable Carrying Case allows for storage and
transport of the TIC, batteries, charger, and
carrying attachments.

Mounting Bracket (FIGURE 7)

The Non-Charging Mounting Bracket enables
convenient storage of the Evolution 5200 TIC.

Tripod Mounting Adapter

The Tripod Mounting Adapter allows for mounting
of the TIC onto any standard tripod.
TIC
2

Tripod

The Tripod allows for stationary viewing of the
thermal imaging camera. The Tripod must be used
with the Tripod Adapter.

Reflective ID Label

Thermal
2
The Reflective ID Label Kit includes one sheet of
colored accent labels designed to personalize the
TIC. Labels fit on the top and sides of the TIC and
may be written on to further assist in TIC
identification.
pieces be placed on the main camera
housing if the TIC is used with a truck-
mounted charger, as it may interfere with
making adequate contact.

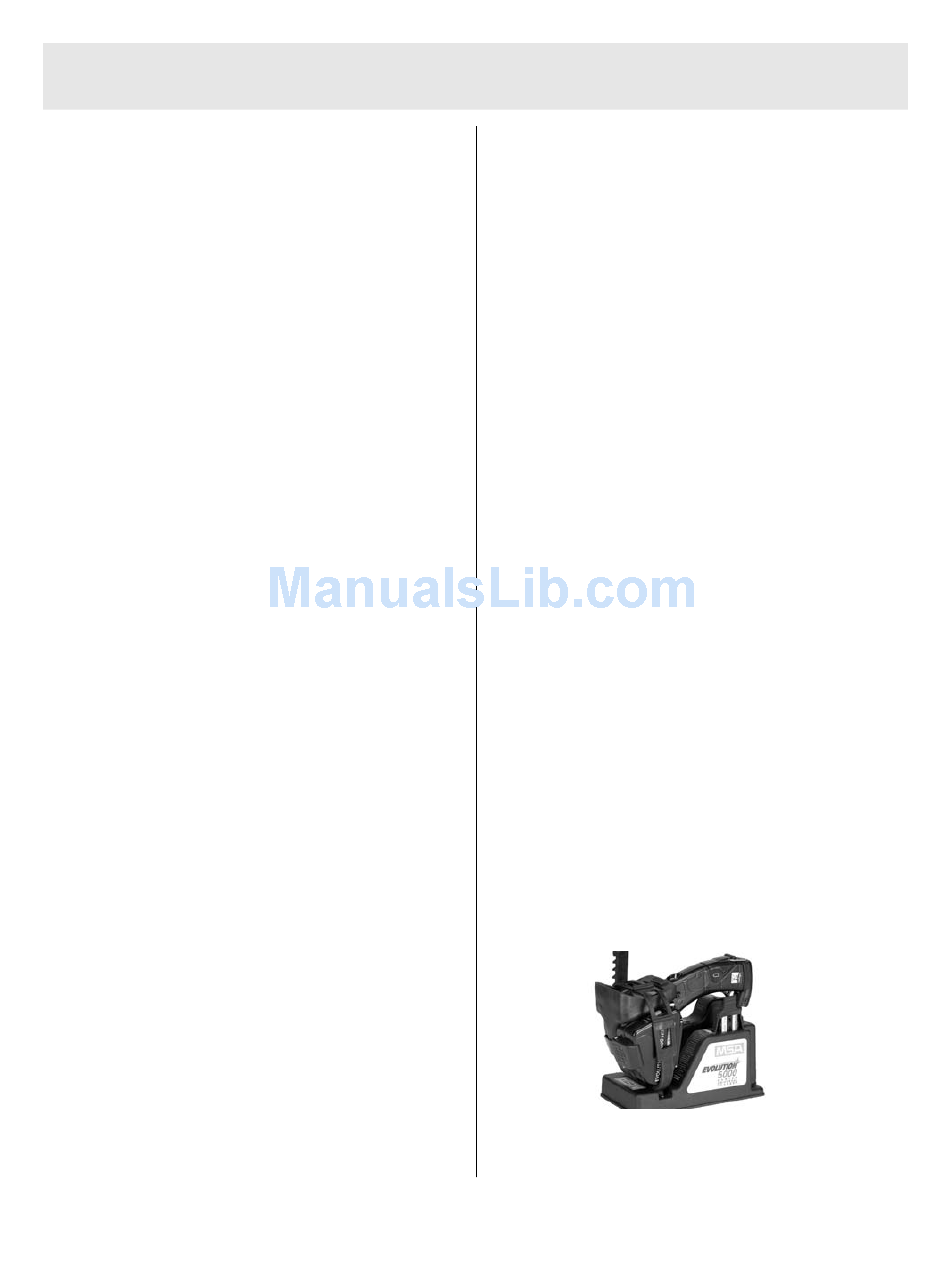

Figure 7. Mounting Bracket
9
