EVOLUTION 5000 SERIES UNIVERSAL TRUCK-
MOUNTED CHARGING SYSTEM OPERATION
To charge the TIC and spare batteries using the
Evolution 5000 Series Truck-Mounted Charging
System make sure the TIC charging pins and
cradle are clean and free from debris (FIGURE 8).
1. Place the handle of the TIC on the alignment
pin, with the display facing inward. Pivot the
camera down until the charging connections
make contact; secure the unit with the straps
on the charging cradle.
2. If charging a spare battery, place the battery
into the slot provided and secure it with the
rubber retainer.
The power LED indicator should always remain
green when the power source is ON and properly
connected. When the Truck-Mounted Charging
System is correctly installed, the status indicators
will light as follows:

Power Status LED Indicators

OFF System Fault
GREEN Power On/ System Operational
Any LED indication other than those listed indicates faulty
operation and the unit must be returned to MSA for service.

Battery LED Indicators

OFF No Battery Installed
GREEN Charge Completed
FAST BLINKING
GREEN Charging
SLOW BLINKING
GREEN Charge Pending
RED Fault
Any LED indication other than those listed indicates faulty
operation and the unit must be returned to MSA for service.
10

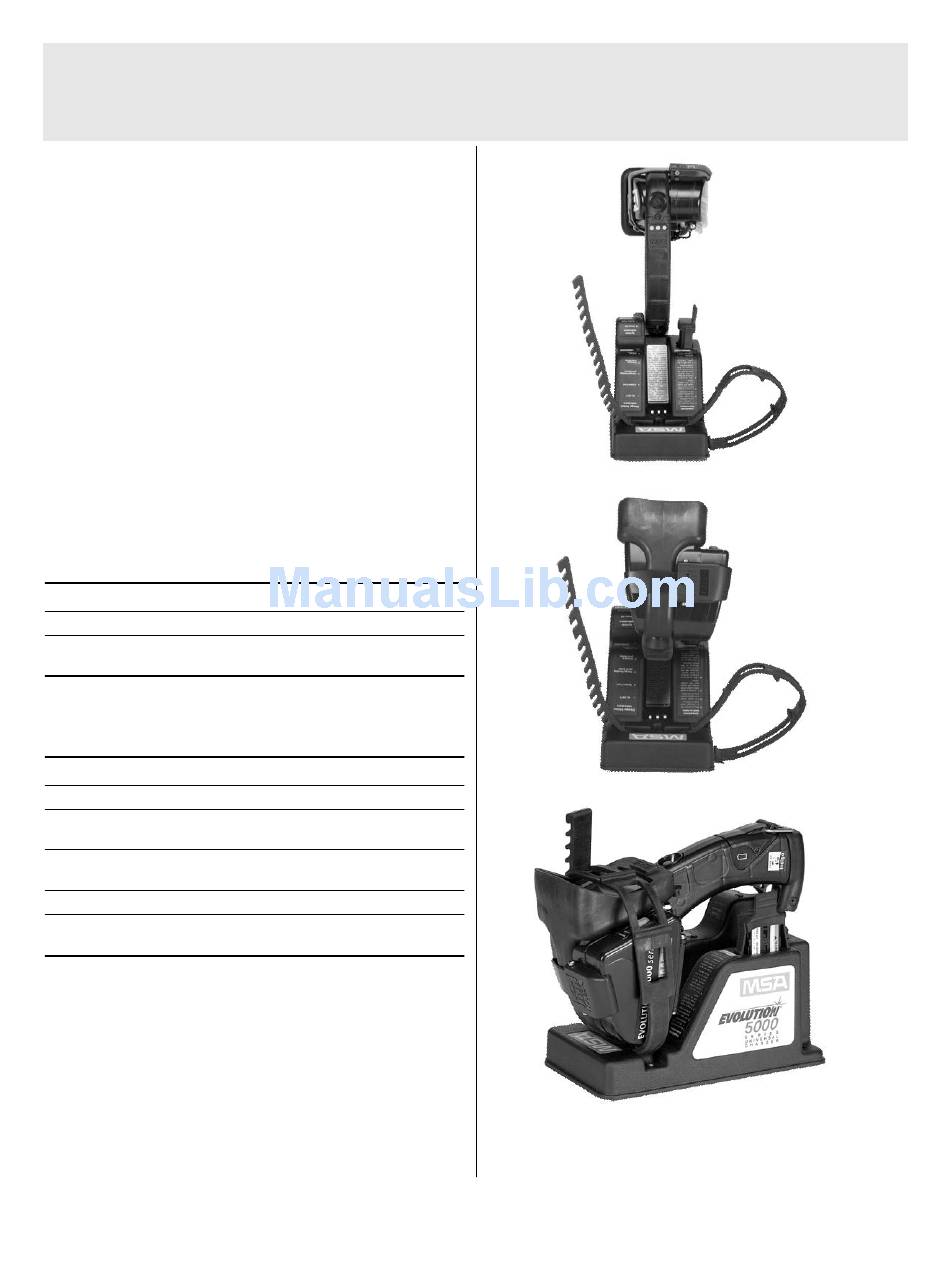

Figure 8.
Universal Charger/Camera
Engagement Sequence
