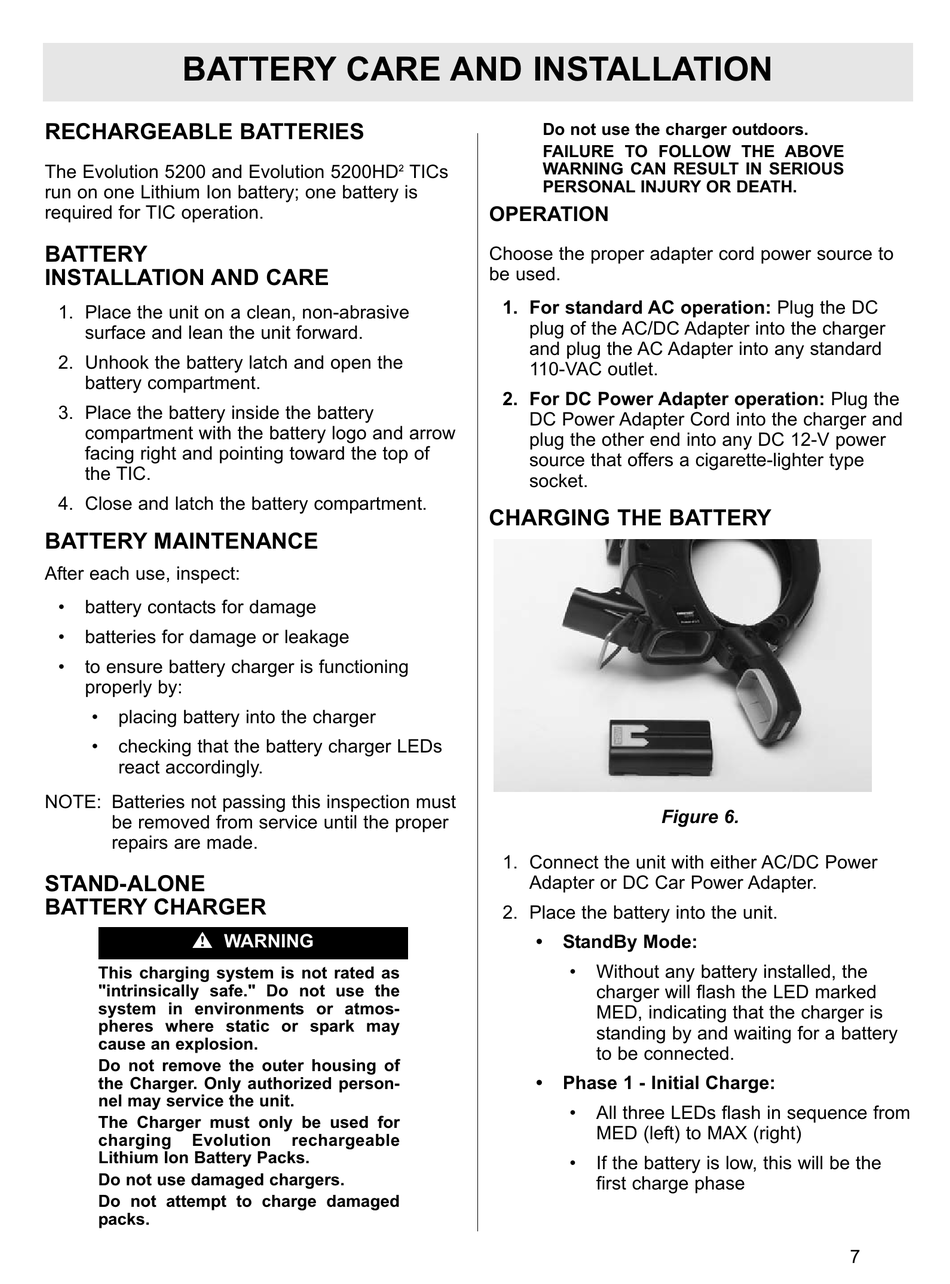

BATTERY CARE AND INSTALLATION

RECHARGEABLE BATTERIES

The Evolution 5200 and Evolution 5200HD
run on one Lithium Ion battery; one battery is
required for TIC operation.
BATTERY
INSTALLATION AND CARE
1. Place the unit on a clean, non-abrasive
surface and lean the unit forward.
2. Unhook the battery latch and open the
battery compartment.
3. Place the battery inside the battery
compartment with the battery logo and arrow
facing right and pointing toward the top of
the TIC.
4. Close and latch the battery compartment.

BATTERY MAINTENANCE

After each use, inspect:
• battery contacts for damage
• batteries for damage or leakage
• to ensure battery charger is functioning
properly by:
• placing battery into the charger
• checking that the battery charger LEDs
react accordingly.
NOTE: Batteries not passing this inspection must
be removed from service until the proper
repairs are made.
STAND-ALONE
BATTERY CHARGER

" WARNING

This charging system is not rated as
"intrinsically safe." Do not use the
system in environments or atmos-
pheres where static or spark may
cause an explosion.
Do not remove the outer housing of
the Charger. Only authorized person-
nel may service the unit.
The Charger must only be used for
charging Evolution
Lithium Ion Battery Packs.
Do not use damaged chargers.
Do not attempt to charge damaged
packs.
TICs
2
rechargeable
Do not use the charger outdoors.
FAILURE TO FOLLOW THE ABOVE
WARNING CAN RESULT IN SERIOUS
PERSONAL INJURY OR DEATH.

OPERATION

Choose the proper adapter cord power source to
be used.
1. For standard AC operation: Plug the DC
plug of the AC/DC Adapter into the charger
and plug the AC Adapter into any standard
110-VAC outlet.
2. For DC Power Adapter operation: Plug the
DC Power Adapter Cord into the charger and
plug the other end into any DC 12-V power
source that offers a cigarette-lighter type
socket.

CHARGING THE BATTERY

Figure 6.
1. Connect the unit with either AC/DC Power
Adapter or DC Car Power Adapter.
2. Place the battery into the unit.
• StandBy Mode:
• Without any battery installed, the
charger will flash the LED marked
MED, indicating that the charger is
standing by and waiting for a battery
to be connected.
• Phase 1 - Initial Charge:
• All three LEDs flash in sequence from
MED (left) to MAX (right)
• If the battery is low, this will be the
first charge phase
7
