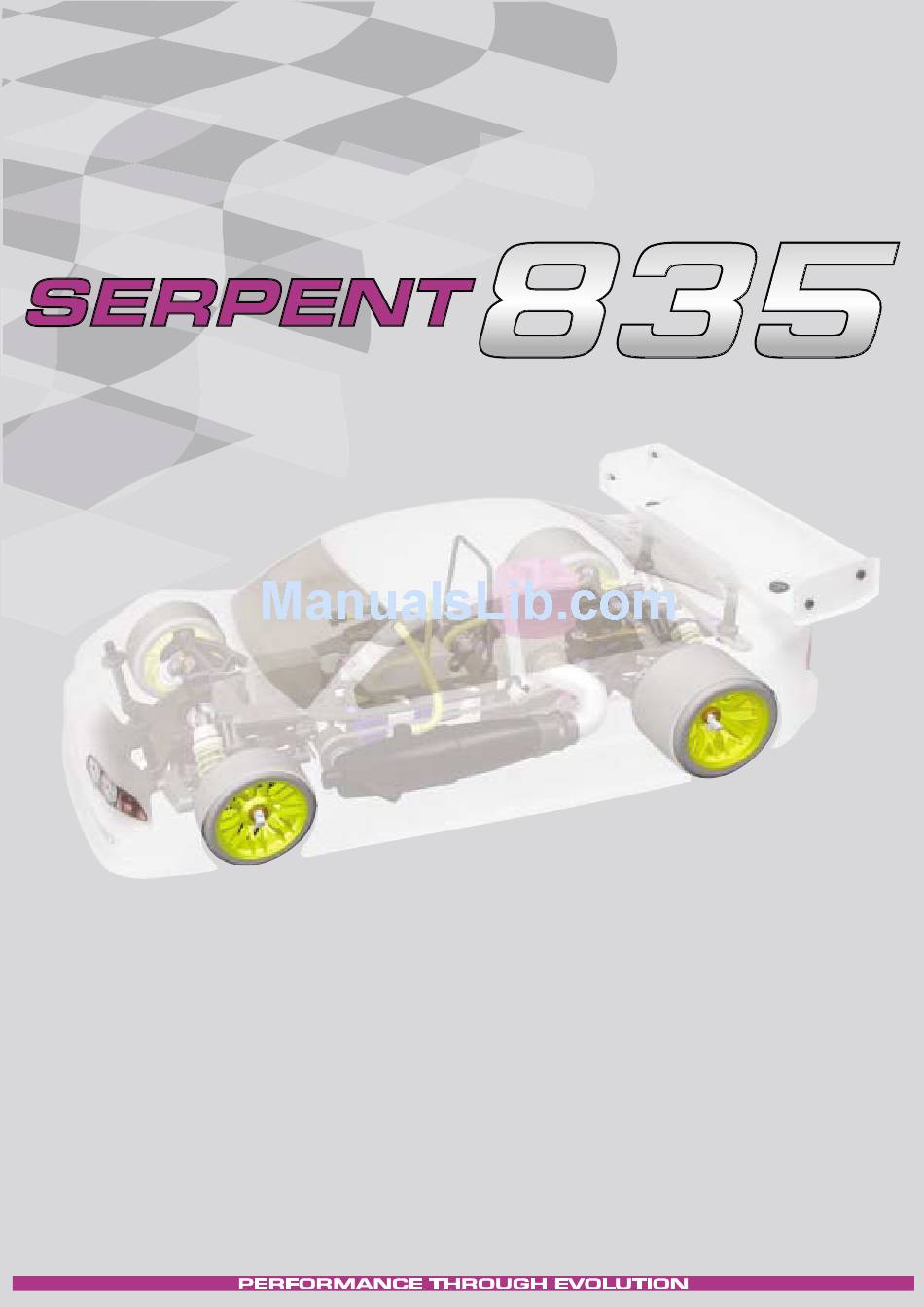

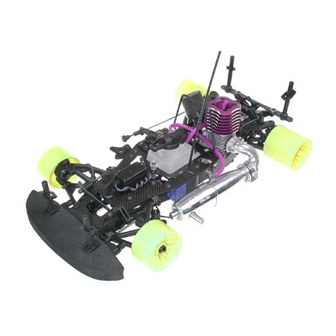

- Page 1 1:10 SCALE 235mm GAS ON-ROAD COMPETITION Reference Guide...
-
Page 2: Table Of Contents
Serpent 835, information provided by Serpent, the name of the part. Besides all the Serpent 835 its factory and team drivers, and experienced users parts as used in this car kit, you will also find in the from around the world. -
Page 3: Shock Assembly
Shock Assembly Complete Shock absorber set - #909440 Piston set key fixed & adjustable (2) - #909445 (optional) 909406 1201 909441 909441 909402 909441 6431 1202 909441 909407 909442 909416 909444 909441 909416 909407 909405 909441 6442 909405 909441 909403 909441 909404... -
Page 4: Front Assembly
Front Assembly 1207 808208 808225 808103 1257 808265 808265 808202 808261 808250 1257 808214 808204 1342 808201 808360 1207 1205 902252 1257 808206 1344 808203 1261 1257 808210 1065 808205 808229 808221 808222 1242 1256 909217 1258 1650 909215 909216 808342 909215 1283... -
Page 5: Rear Assembly / Differential Assembly
Rear Assembly... -
Page 6: Radio Plate Assembly
Radio Plate Assembly... -
Page 7: Radio Plate Mounting
Radio Plate Mounting 8114 1283 1273 1239 1650 801196 1250 808141 808125 808141 801172 808141 801172 808142 808130 1273 1273 1270 1218 801194 808120 1240 1271 1283 801171 1273... -
Page 8: Centax Assembly
Centax Assembly Gearbox Assembly... -
Page 9: Final Assembly
Final Assembly 1615 1240 1240 1226 Not Included 909356 1611/12/13 1237 1637 1250 808380 1636 1619 1258 1639 808111 1312 901255 6571 1272 808111 801192 808362 901255 1243 Not Included 1311 1598... -
Page 10: Parts List
Parts List - Serpent 835 To ensure that you have the most up to date parts Chassis & Radio plate 902138 Linkages rear anti-roll bar L+R (2) list you can download the latest version from the 808103 Chassisplate alu. 4mm T6... - Page 11 Engine mounts SX-15 purple M2 1400G Powerstart starterbox grey 1999 NovaMega cap grey Deluxe 6571 Engine mounting screws/washers 1414 Positioning support for S-835/M2/Vec 1990 Serpent cap grey Deluxe 1599 Exhaust mounting wire 1395 Glowdriver with battery & charge cable 1858...
- Page 12 P.O. Box 180, 2100 AD Heemstede The Netherlands, Europe. Tel: (31) 23 529 2068 Fax: (31) 23 528 4950 E-mail: info@serpent.com Serpent USA, Inc. West Park Center, 2830 NW 79th Avenue, Miami, Florida 33122, USA. Tel: (305) 639 9665 Fax: (305) 639 9658...
